Leibinger Jet 3 - Page 154

Group 7 Data/Programming Page 152
Release R2.0 LEIBINGER JET3

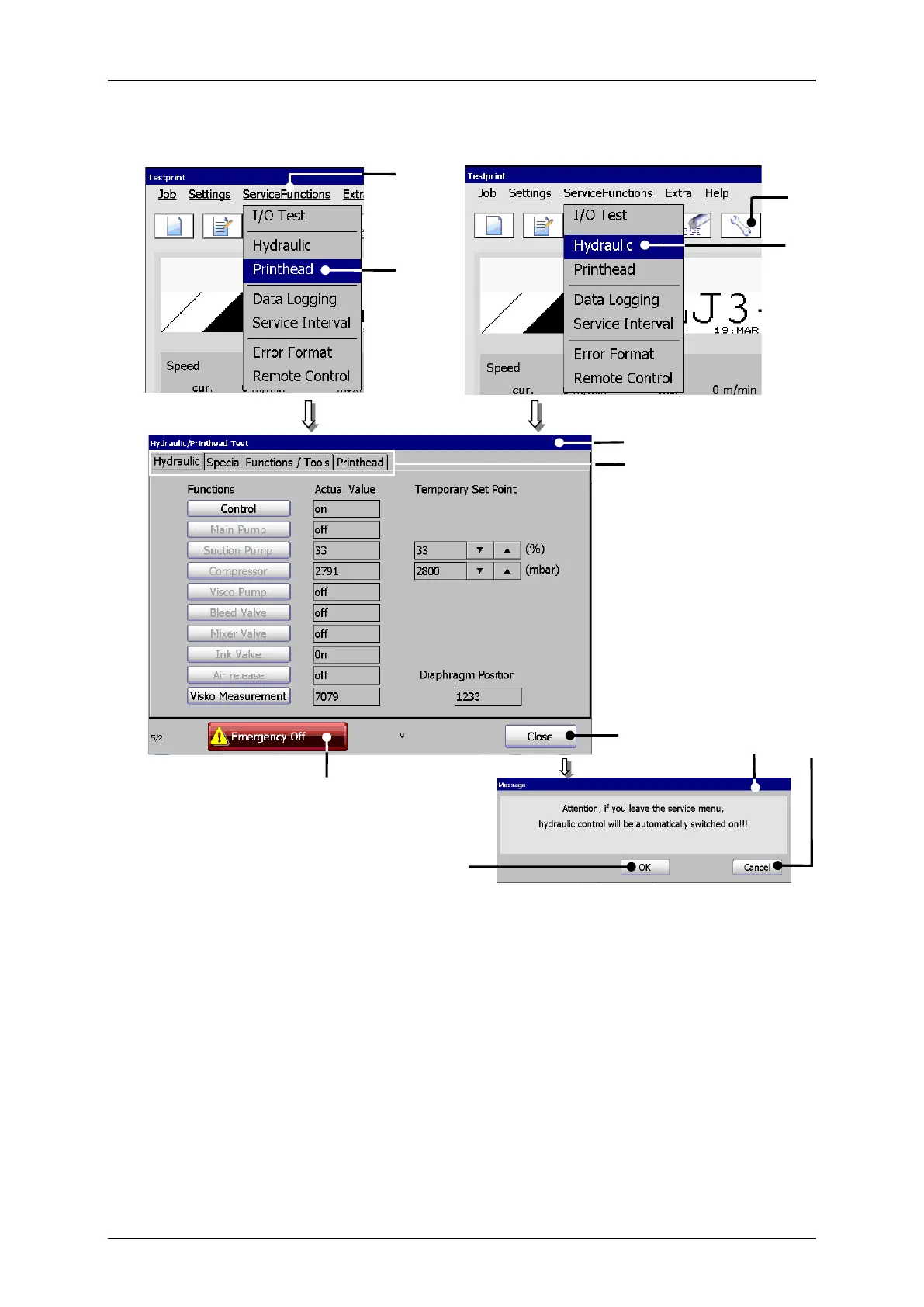

Figure 70
Hydraulic/Printhead test dialog box
1 – Direct button (Icon) <Service>
7 – Button <Close>
2 – Button <ServiceFunctions>
8 – Tab bar
3 – Option <Printhead>
9 – Message <Close dialog box>
4 – Option <Hydraulic>
10 – Button <OK>
5 – Dialog box <Hydraulic/Printh. Test>
11 – Button <Cancel>
6 – Button <Emergency Off>
