Now the nozzle seal has to be opened completely to souse the ink jet completely
into the charging tunnel (15). For this press on the arrow key <Open nozzle>
(18) and keep it pressed until the gutter motor has reached it’s end position.
In this position check the setting position again. The ink jet should be now in the
centre of the charging tunnel and parallel to the deflection plates. If necessary
the position has to be corrected again by moving the fixing plate.
If you have reached the correct setting you have to close the nozzle seal. For this
press on the arrow key <Close nozzle> (19) and keep it pressed until the nozzle
seal is completely closed.

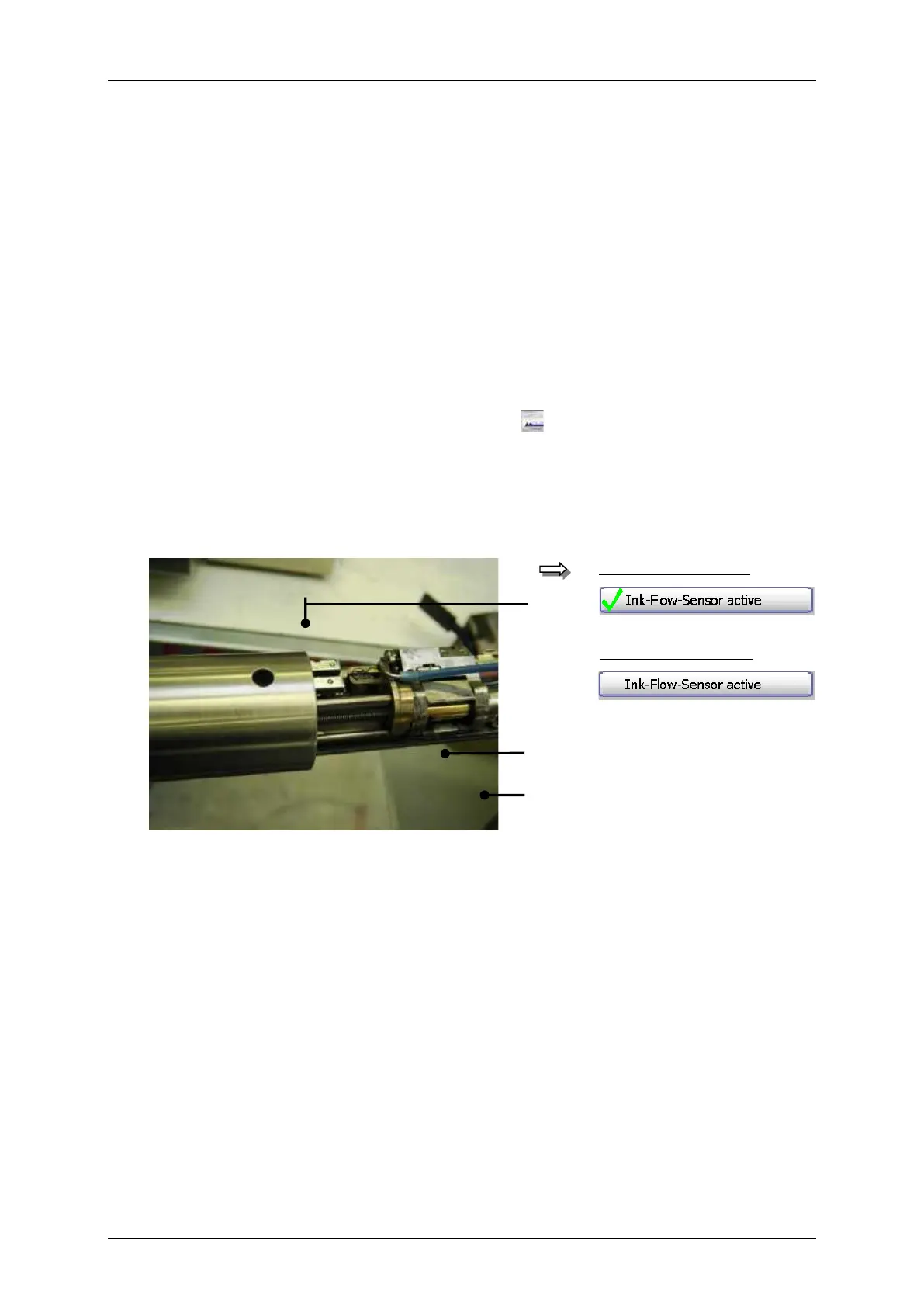

Finally activate the ink jet monitoring with the button <Ink-Flow-Sensor active>
(20).
An activated jet monitoring is marked by a … on the button.
Close the dialog box with the button <Close> (21).
