Group 7 Data/Programming Page 212
Release R2.0 LEIBINGER JET3
7.6.1 Information
With the option <Info> (2) or or the accordant direct button [Icon] (3) you can open
the display window “Information“ (4).

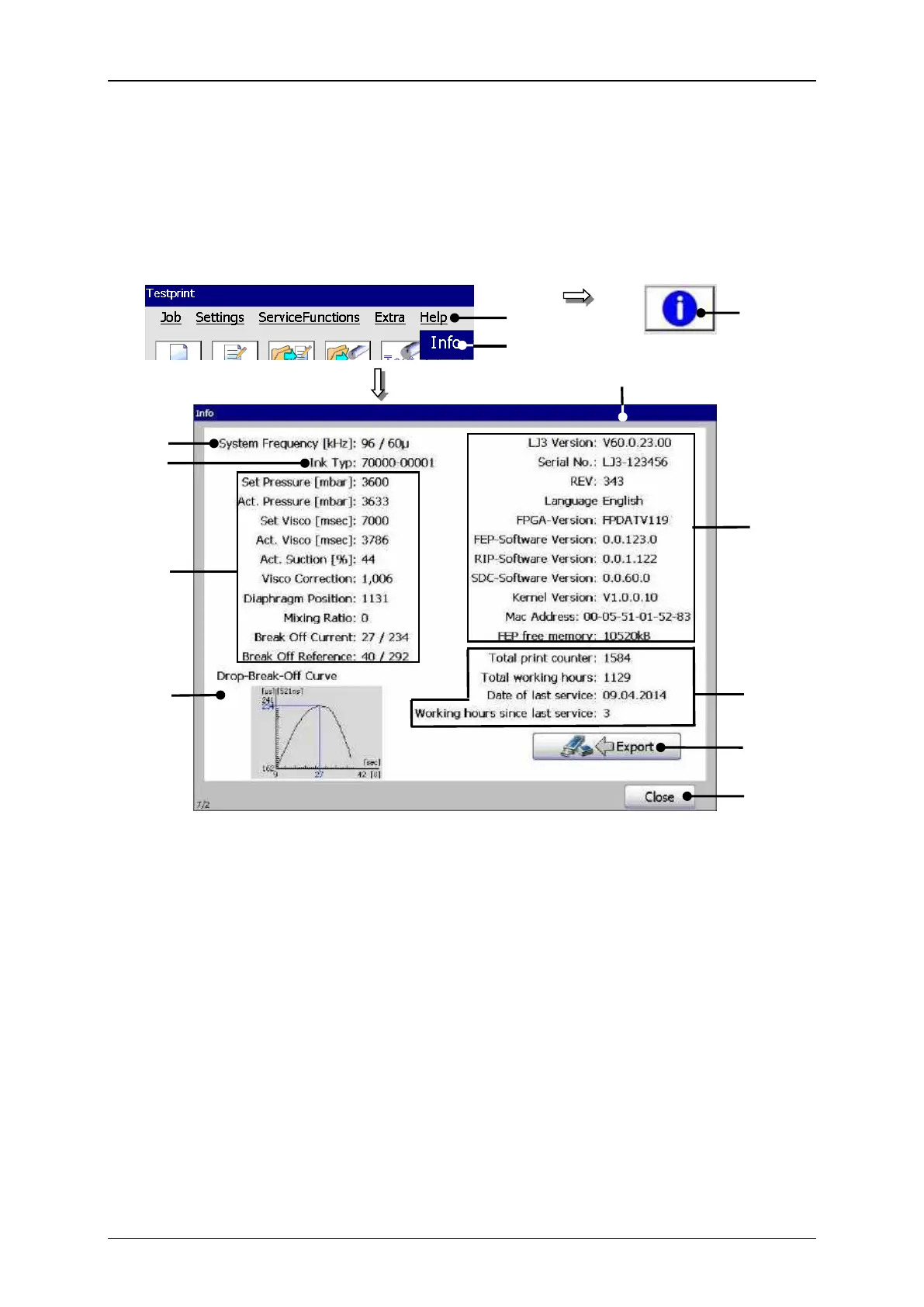

Figure 108
System info window
1 – Button <Help>
7 – Display <Curr. hydr. param.>
2 – Option <Info>
8 – Display <Version/Software version>
3 – Direct button (Icon)
9 – Display<Operation hours/inspection>
4 – Display window <Info>
10 – Drop break off curve
5 – Display<System frequency>
11 – Button <Export>
6 – Display<Filled ink>
12 – Button <Close>
1
2
11
12
5
8
4
9
7
10
0
6
or
3
