„Leibinger logo group“
Text object for the Leibinger logo.

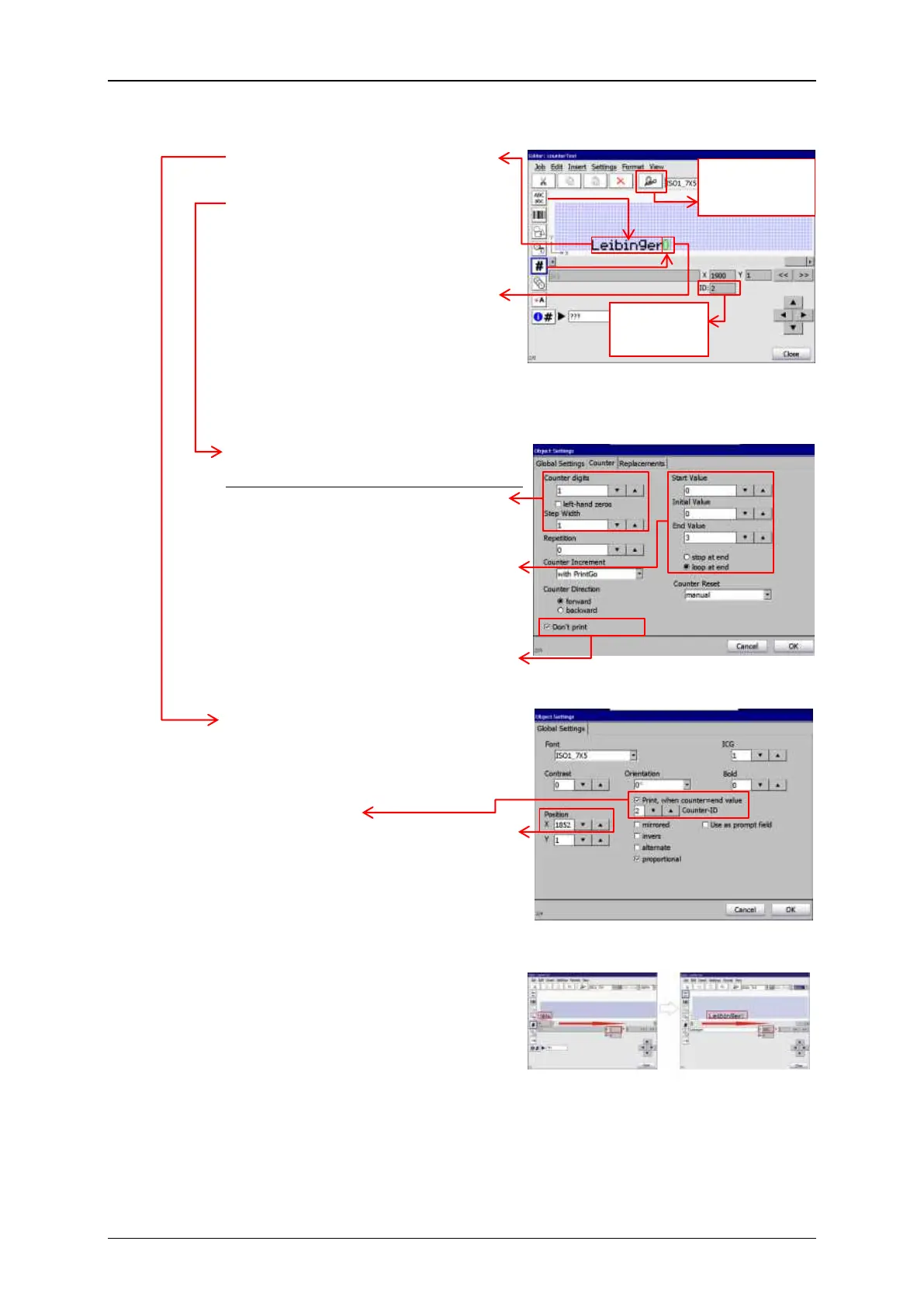

Picture 6 – JET3 job editor: Objects
for the „Leibinger“ logo
printout
Counter object for the printout
control of the Leibinger logo.
This counter is assigned to the text
object “Leibinger”.
It is displayed in green because it
will not be printed. When you
select the counter object you can
see its ID in the field below the x-y
coordinates.
Counter parameters
Printout control of Leibinger logo
Picture 7 – Counter settings for the
Leibinger text object
1. The counter works with 1 digit
and a step width of 1; left-hand
zeros are not relevant.
2. The count will start at 1 and the
end value is 3. After reaching
the end value the counter will
loop back to 0.
3. The current counter value is not
printed.
1. In the global settings of the text
object you can assign the
counter for the Liebinger text
object. Make sure to set the
correct ID.
2. The Leibinger logo shall be prin-
ted between two length specifi-
cations. Therefore the distance
between the printout of the
length specifications and the
Leibinger logo has to be 500
mm. The position of an object
can be exactly specified in the
global settings of an object. The
x value equals the number of
strokes. The mm value of one
stroke can be found in the font
parameter menu. In this example
the stroke width is set to 0,271
mm/Stroke. This equals in
~1852 strokes for 500 mm.
Picture 8 – Global settings for the
"Leibinger" text object
Picture 9 – Use the scroll bar for
switching between the
2 "object groups"
within the editor
ID of the object
that is selected
in the editor
Open the “Global
settings” menu of
the selected object
