 Reset2 on X4: The reset happens by an external supplied signal on the X4
interface. The actual input has to be assigned in the I/O Settings dialog box
(Settings – I/O Settings – Inputs)
 A counter reset method can be assigned to more than one counter. Therefore it
is possible to create “Reset groups”.
Example for “Reset groups” – 6 defined Counters assigned to three groups
8.7.3.1.11 Counter increment (methods)
With the drop-down list <Counter Increment> you can determine the method at
which event the counter value should be changed (incremented or decremented).

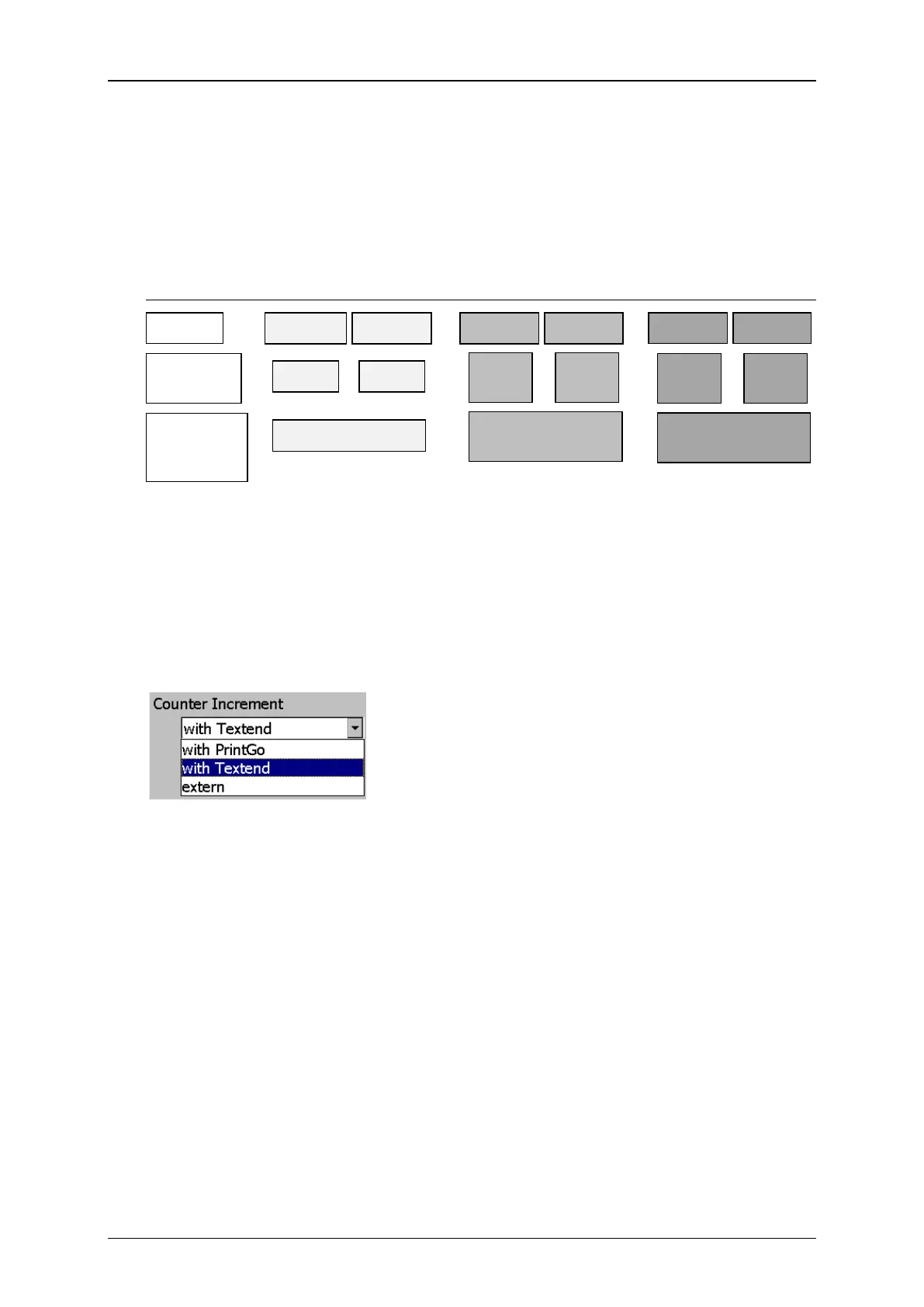

Figure 158
Counter settings (Increment methods)
)
 with PrintGo: The change in value of the counter happened with each the PrintGo-
signal (even, if the print out is stopped and the printer still receives some PrintGos
from the sensor or the internal PG source).
 with printing (text) end: The change in value of the counter happens after the
print out was made.
 Extern (external signal): The change in value happens by an external signal
(interface X4).
Counter
Reset
Assignment
Pin
Assignment
X4
Counter 1
Counter 2
external
X 4.1 fixed
external
Counter 5
Counter 6
Reset2
on X4
Reset2
on X4
6 available inputs for
free assignment
Counter 3
Counter 4
Reset1
on X4
Reset1
on X4
6 available inputs for
free assignment
