Group 8 Job editor Page 307
Release R2.0 LEIBINGER JET3

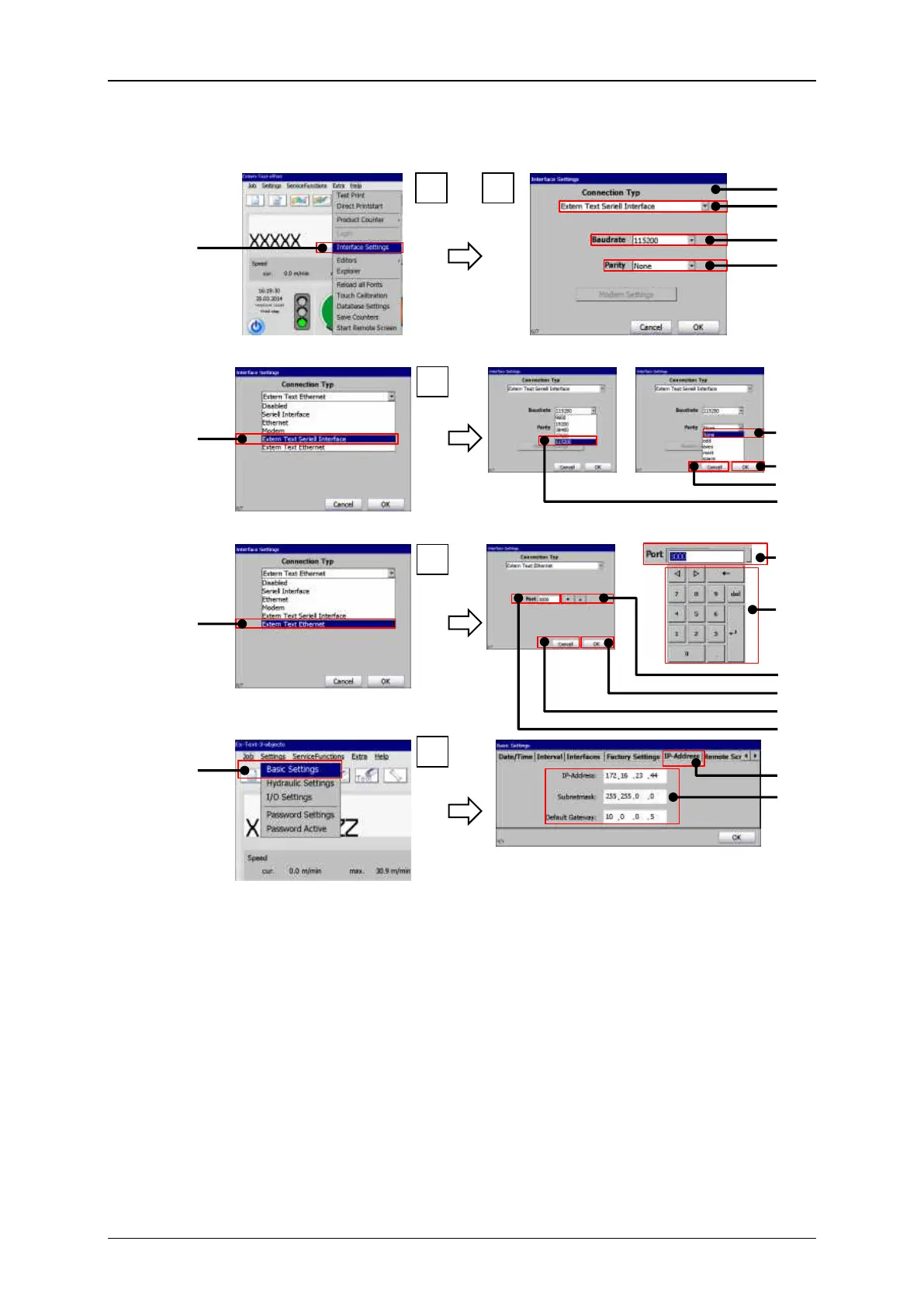

Figure 162
Extern Text – Interface settings
Extern Text for serial interface
Extern Text for Ethernet interface
1 – Menu item <Interface Settings>
11 – Selection <Extern Text Ethernet>
2 – Dialog box <Interface Settings>
12 – Display field <Port> number
3 – Drop-down list <Connection type>
13 – Numeric keypad
4 – Drop-down list <Baud rate>
14 – Arrow keys <Port> number
5 – Drop-down list <Parity>
15 – Button <OK>
6 – Selection <Extern Text seriell
interface>
16 – Button <Cancel>
7 – Selection <Baud rate>
17 – Display field for the current
<Port> number
8 – Selection <Parity>
18 – Menu item <Basic settings>
9 – Button <Cancel>
19 – Tab <IP-Adress>
10 – Button <OK>
20 – IP address settings
2
1
3
4
5
10
6
7
8
9
12
13
11
16
18
20
19
1
2
3
3
4
17
15
14
