12.3 Encoder guidelines and “hot-plugging” of external devices

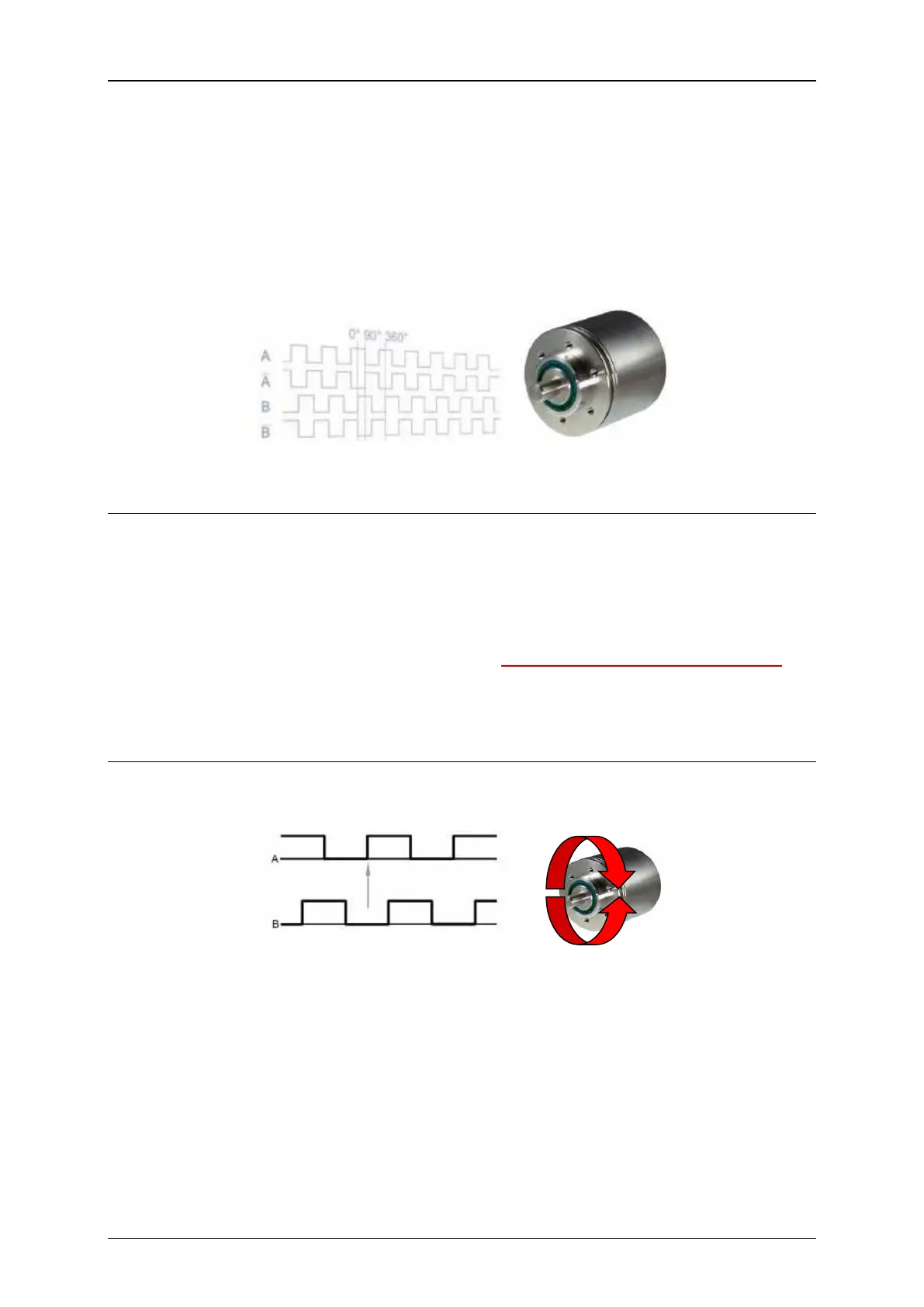

Encoders (also called incremental encoder) are used for the dynamic capture of angles of
shafts or to measure distances and speed information.
They are based on a technology which converts mechanical movements like rotation or
linear movement to electrical digital signals. In combination with measurement wheels or
gear racks, encoders can be also used to measure linear movements as e.g. distances.
Types of encoders:
Regarding the different internal technology of the encoders, they are distinguished into
two different principles:
Incremental encoders: supply simple “endless” square wave signals
Absolut encoder: supply digital signals on several data output lines
(parallel signal output) this encoder type cannot be used!!!
Direction of rotation:
Typically encoders are supplying two output signals which are shifted 90°.
Just with this two shifted signals a so-called „direction detection“ can be realized. Due
to the analysis of the phase position of signal „A“ and the phase position of signal “B”
the electronic can detect if the encoder turns forward or backwards.
