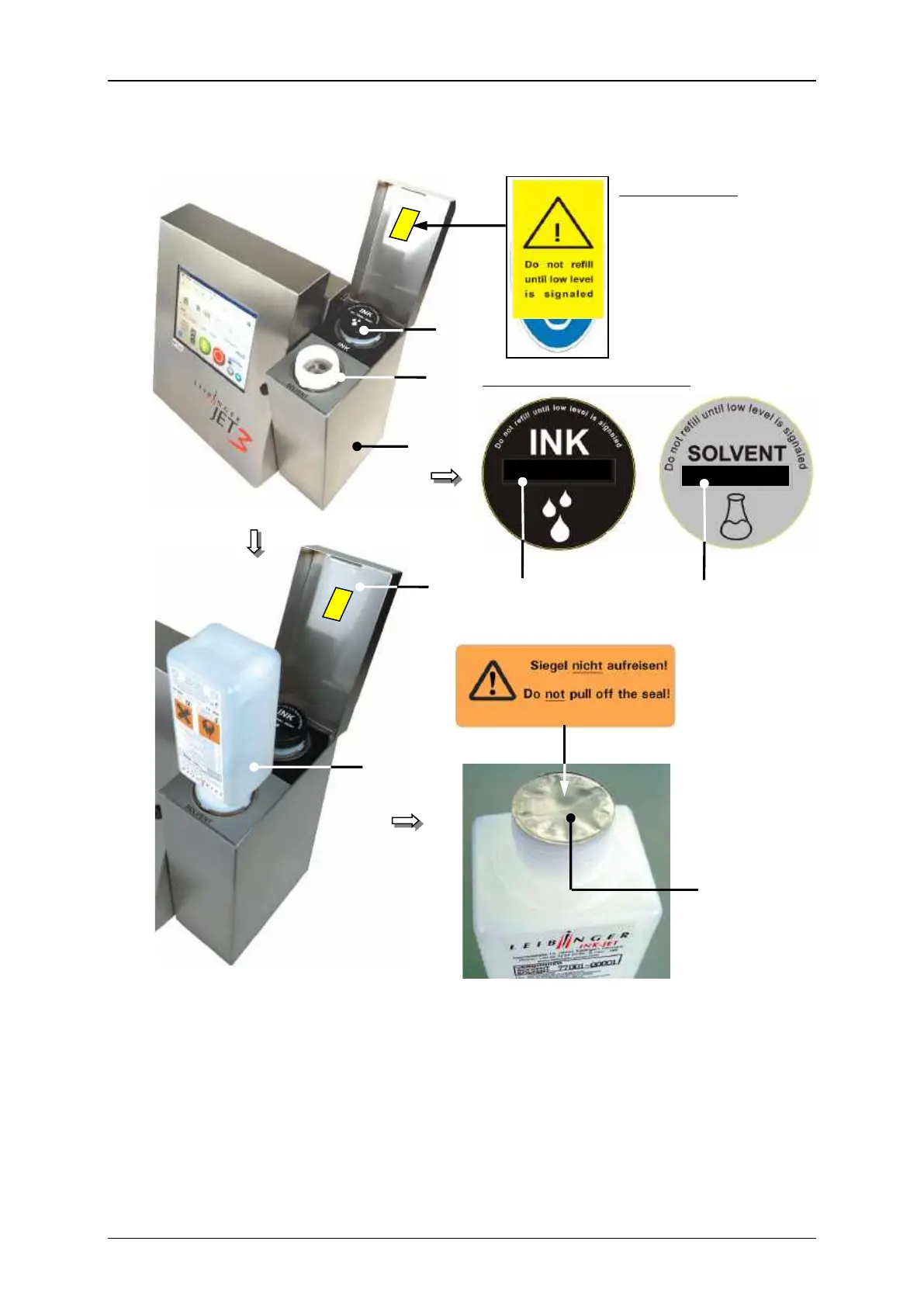

Figure 9
Reservoir tank and re-filling process
1 – Reservoir tank unit
4 – Reservoir tank „Solvent“
2 – Hinged cover lid
5 – Refill bottle „Solvent “
3 – Reservoir tank „Ink“
6 – Refill bottle seal
2
5
3
Indicating label
1
Marking of reservoir tanks
4
6
No. 7000-00001
No. 7700-00001
Marking of the admissible
ink (Example)
Marking of the admissible
solvent (Example)
