Leibinger Jet 3 - Interface X1 (Encoder) Description

Group 5 Transport/Start up Page 53
Release R2.0 LEIBINGER JET3
5.5 Interfaces
The following interfaces are available on the rear side of the electronics cabinet.

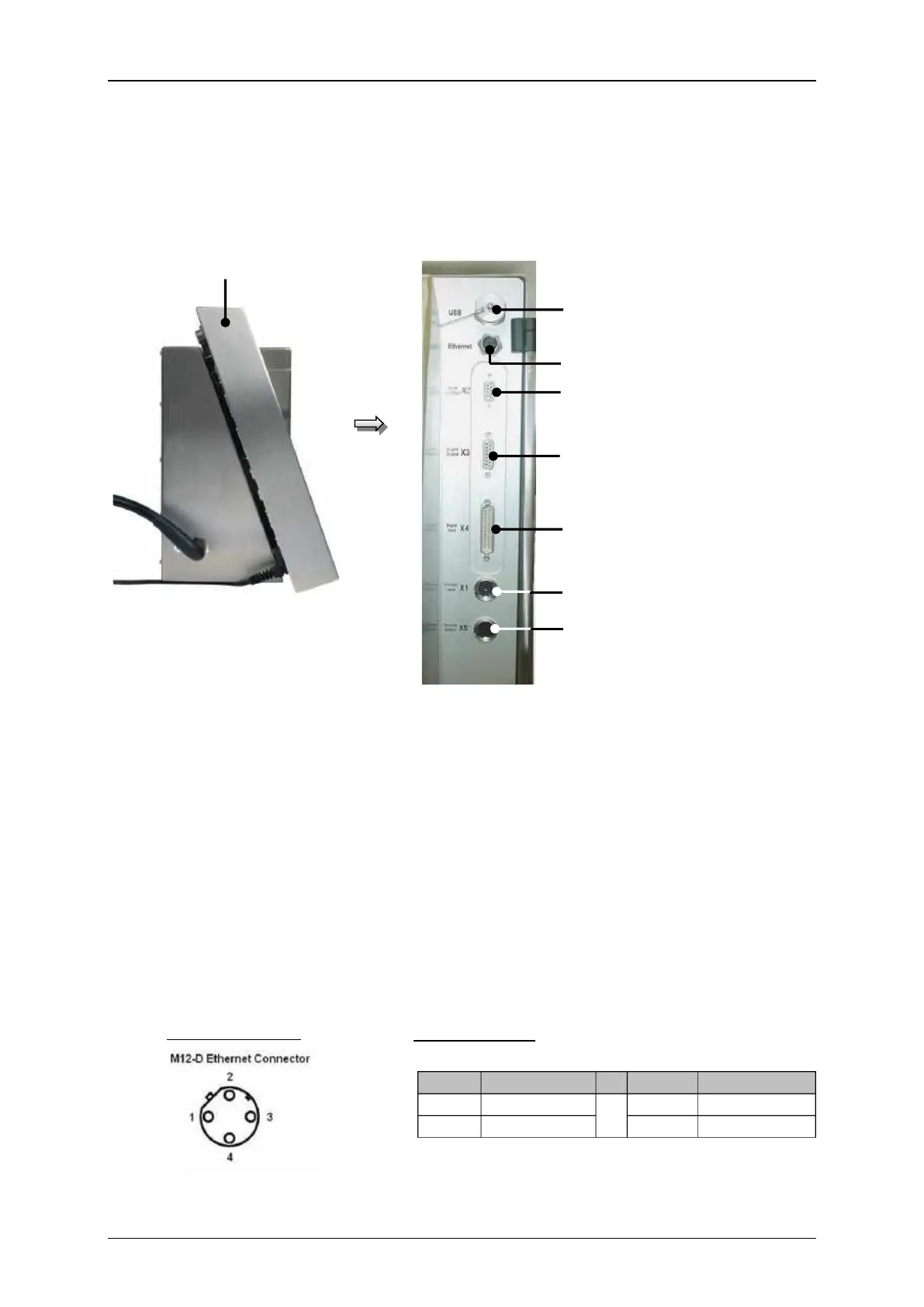

Figure 13
Interfaces
Interfaces
1 – Electronic cabinet
5 – Interface X3 – digital outputs
2 – Interface X5 – PrintGo
6 – Interface X2 – Serial Interface
3 – Interface X1 – Encoder
7 – Ethernet-connection
4 – Interface X4 – digital inputs
8 – USB connection
5.5.1 Ethernet-connection
The Ethernet-connection is implemented with a sturdy M12D coded socket and is
designed for high transfer rates and long cable lengths. It provides the networking of
several devices in multi-head applications. The data exchange happens via the
„LEIBINGER JET3-interface protocol“.
Pin No
Designation
Pin No.
Designation
1
Tx +
3
Tx -
2
Rx +
4
Rx -
Plug assignment:
Pin connection:
1
6
4
2
7
3
5
8
