Group 6 Operation – Elements and procedures Page 81
Release R2.0 LEIBINGER JET3

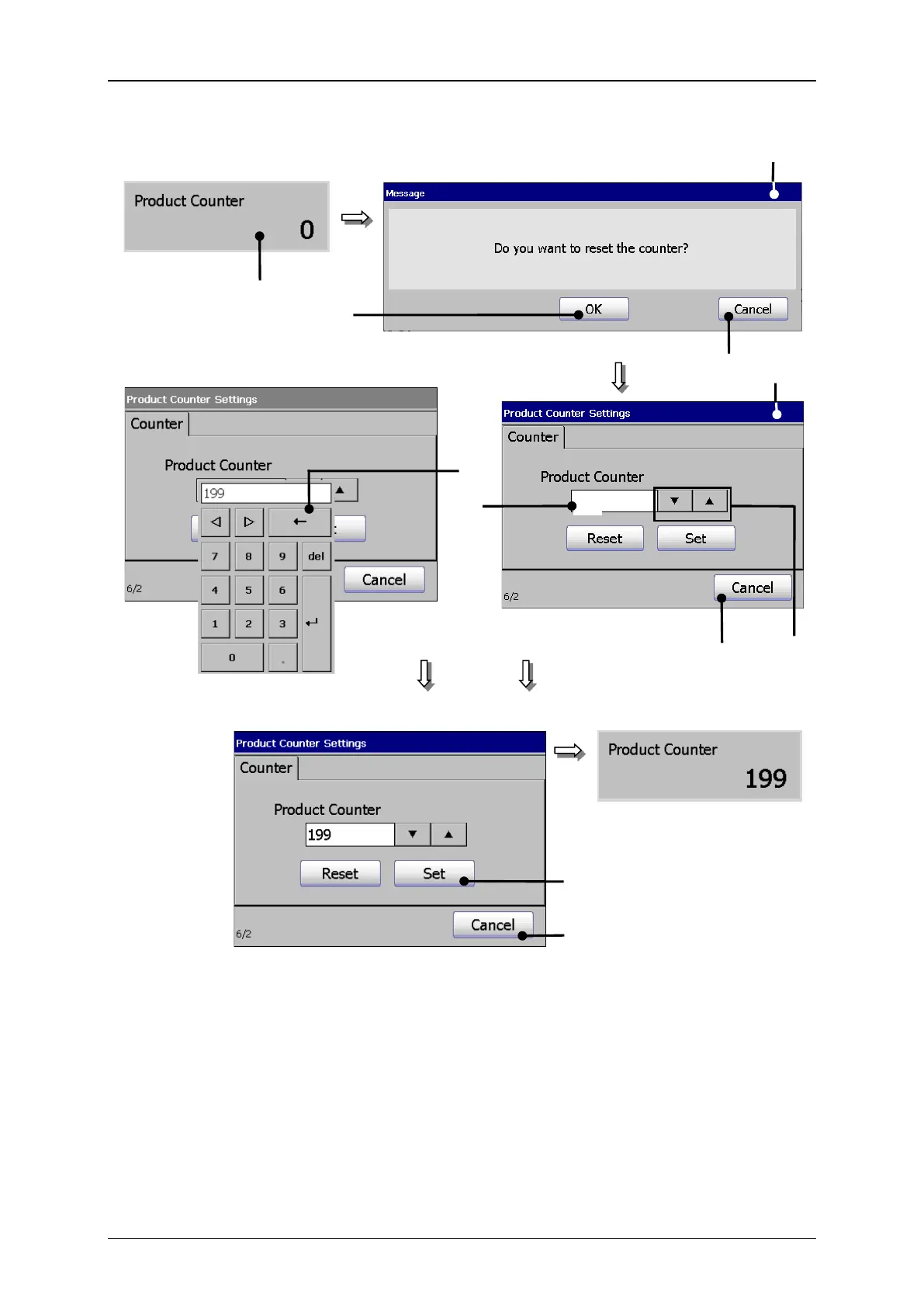

Figure 27
Change product counter value – Example with 1 product counter
1 – Status field <Product counter>
6 – Arrow keys
2 – Message <Safety query>
7 – Counter display field
3 – Button <OK>
8 – Number keypad
4 – Button <Cancel>
9 – Button <Set>
5 – Window <Product counter settings>
10 – Button <Cancel>
