Mounting the stand OH4
Mounting the stop for the swing arm
Warnuig
Risk of severe personal injury when the stand moves in
an uncontrolled manner!
➩Lock the footbrakes during the mounting process.
➩Push the OH4 stand to the mounting site.
➩Lock the footbrake.
➩Position the vertical arm vertically.

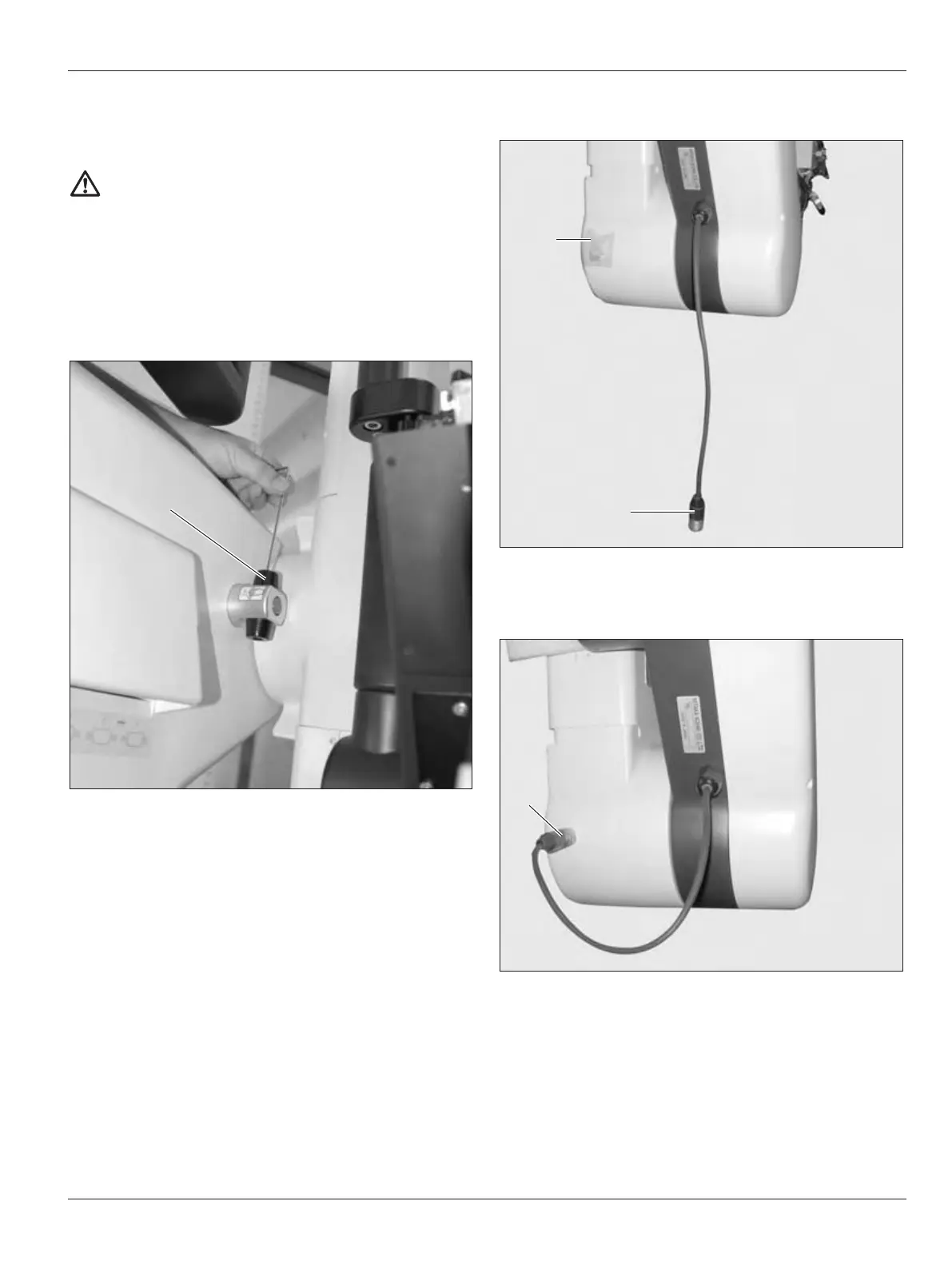

➩Tighten the stop (1) (Fig. 1).
Fig. 1
1
➩Remove the adhesive strip from the socket (2) (Fig. 2).
Fig. 2
➩Plug the connector (3) into the balancing unit (Fig. 3).
Fig. 3
3
