14 Measuring
RUNNER 20/24-1.0.1en
Measuring
Before starting field work
or after longer periods of
storage/transport of your
equipment check the field
adjustment parameters
specified in this User Manual.
Reduce possible
vibrations by holding the
tripod legs.
If the optical parts of
your instrument are dirty
of fogged, your measurements
can be affected. Keep clean all
optical parts of your instrument
and follow the cleaning
instructions specified in the
User Manual.
1. Setup instrument, level and
sharp-focus the reticule.
2. Setup level staff vertically
(refer also to Instruction
Manual of staff).
3. Roughly aim on staff using
the optical sight.
4. Sharp-focus using the
focussing knob.

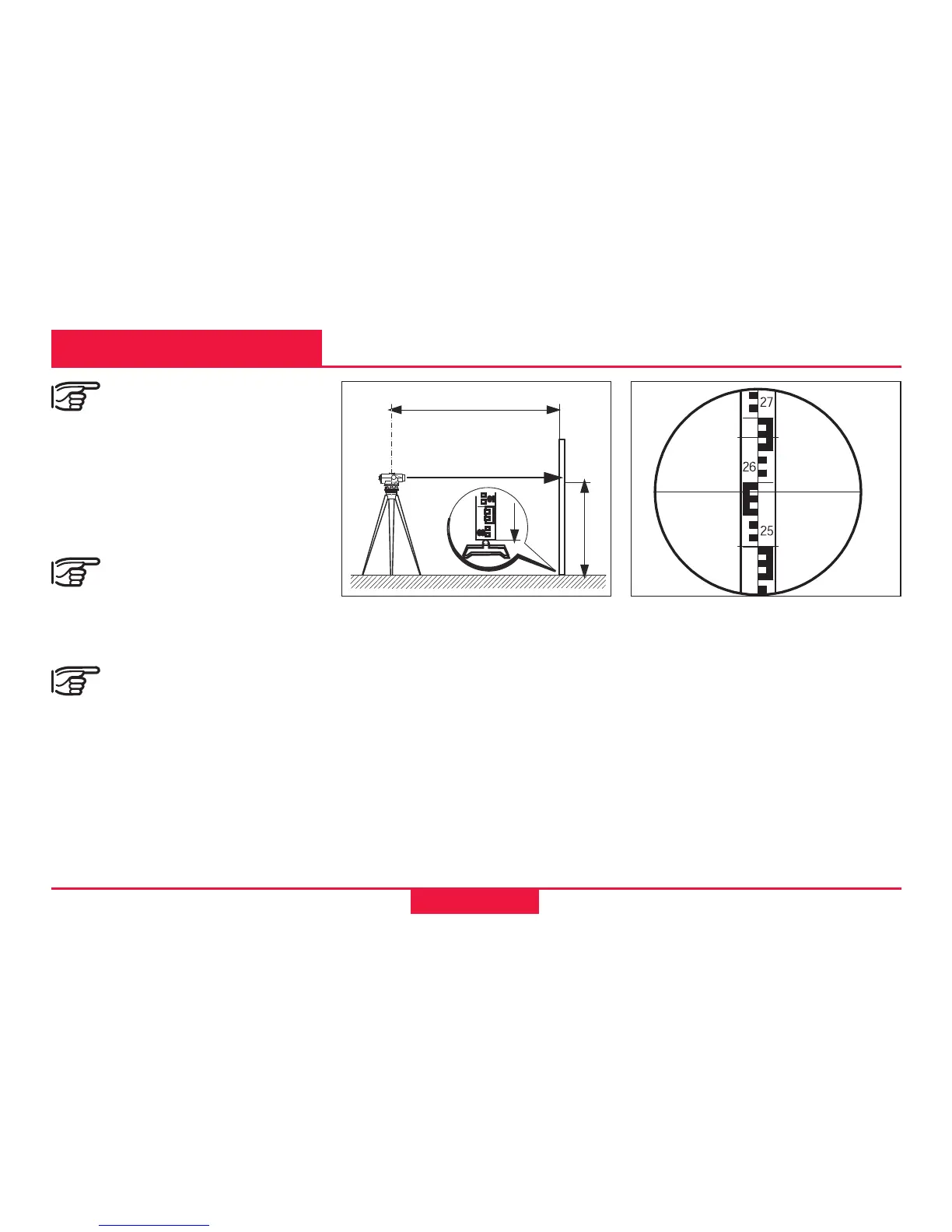

Height reading
5. Fine-aim on staff using the
endless drives.
6. Check if circular level is
centred (view level prism).
7. Read off height H at the
centre hair of the reticule.
Example above:
H = 2.585 m
d
BL-25
BL-18
H
H
