Frame Mortise & Tenon Jig User Guide
43
Chapter 6
WORKPIECE AND JOINT OPTIONS

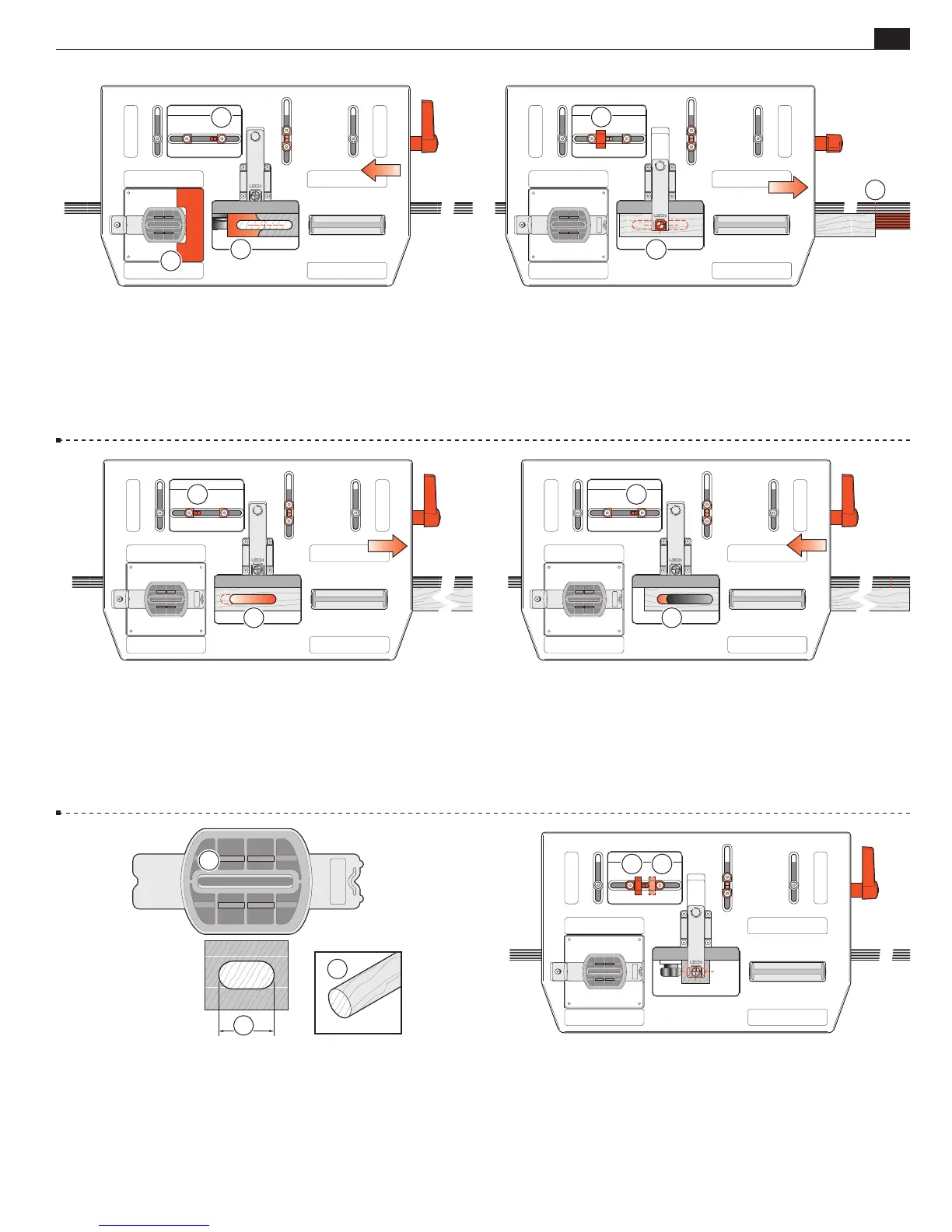

6-9 - Move the table left to the stop
➀
.
- Rout the left-hand end of the tenon
➁
.
If you’re using a “guard”, flip it to the right end of the recess
➂
.
- Repeat for all required tenons.
1
2
3
6-10 Mortises Release the table clamp. Use the small block
between one stop and the stop post
➀
and lock the table clamp.
Center a mortise piece under the sight and clamp
➁
. Set side-stop
blocks or marks on the outriggers
➂
.
1
2
3
6-11 Move the table right to the stop
➀
. Rout the right-hand
end of the mortise
➁
, using the full length of the mortise guide.
1
2
6-12 Move the table left to its stop
➀
. Rout the left-hand end of
the mortise
➁
. Repeat for all required mortises.
So to recap; for joints longer than the guides:
-move the table right and rout right,
-move the table left and rout left.
1
2
6-13 For mortises and tenons shorter than the guide, reverse the
calculation: Guide, minus Joint, divided by 2.
Example: you may want a 1"[25mm] joint
➀
using 2"[50mm] guide
➁
.
So, 2" - 1"
÷ 2 =
1
⁄2 [50mm - 25mm ÷ 2 = 12,5mm].
Make a block
1
⁄2"[12,5mm]. You will also need a short length of
3
⁄16"[5mm] dowel
➂
to act as a guard when routing the mortises.
2
3
1
6-14 Tenons Setting the block and limit stops for the shorter
tenons procedure
➀➁
is exactly the same as for longer tenons
setup, except when you come to rout.
