Leister FUSION 1 - Overview of Device Parts

7

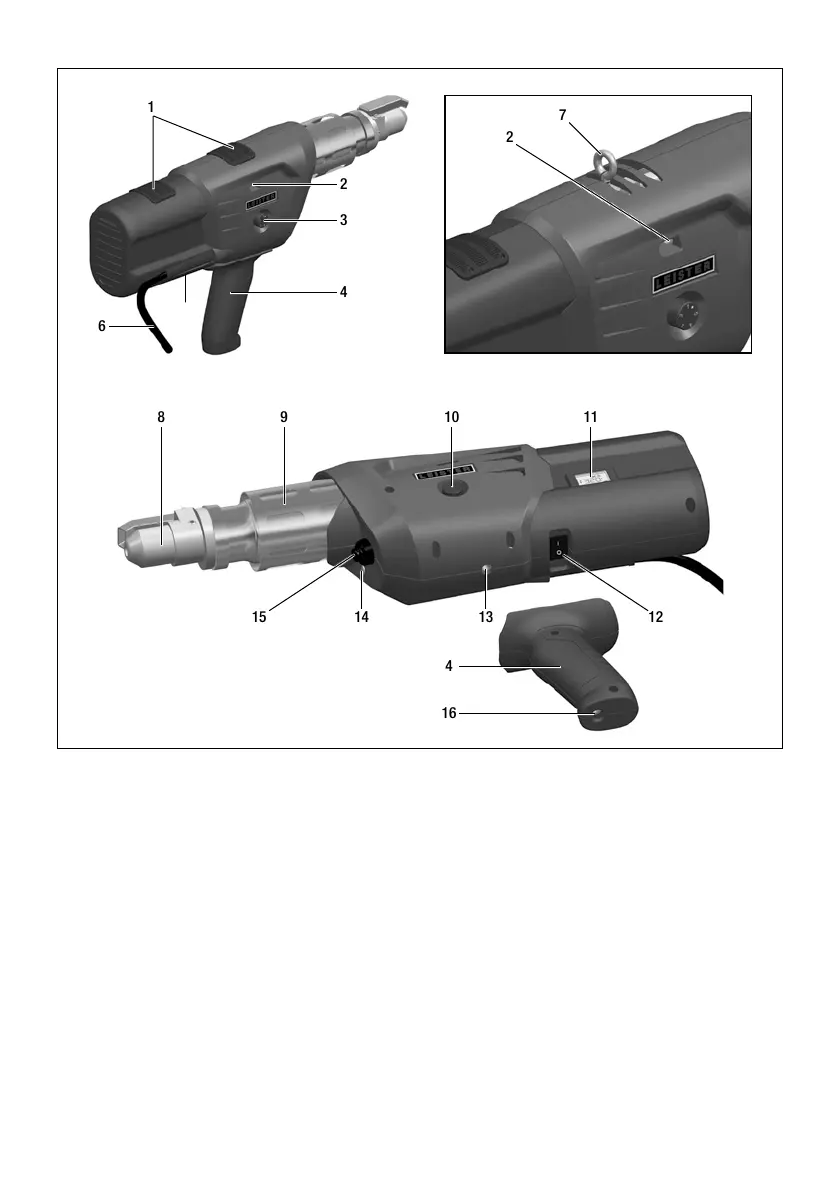

4.3 Overview of device parts
1. Drive motor/blower air inlet
2. Welding rod openings
3. Output regulation potentiometer
4. Handle (can be mounted)
5. Type plate with model designation and series
marking
6. Power cord
7. Hanging hook (optional)
8. Welding shoe
9. Hot-air protective pipe
10. Air temperature potentiometer
11. LCD display
12. Hot-air blower switch
13. Thread for mounting handle
14. LED light, status display
15. On/o drive switch
16. Locking screw (for mounting handle)
1
1098 11
12
5
131415
2
3
6
4
16
4
7
2
