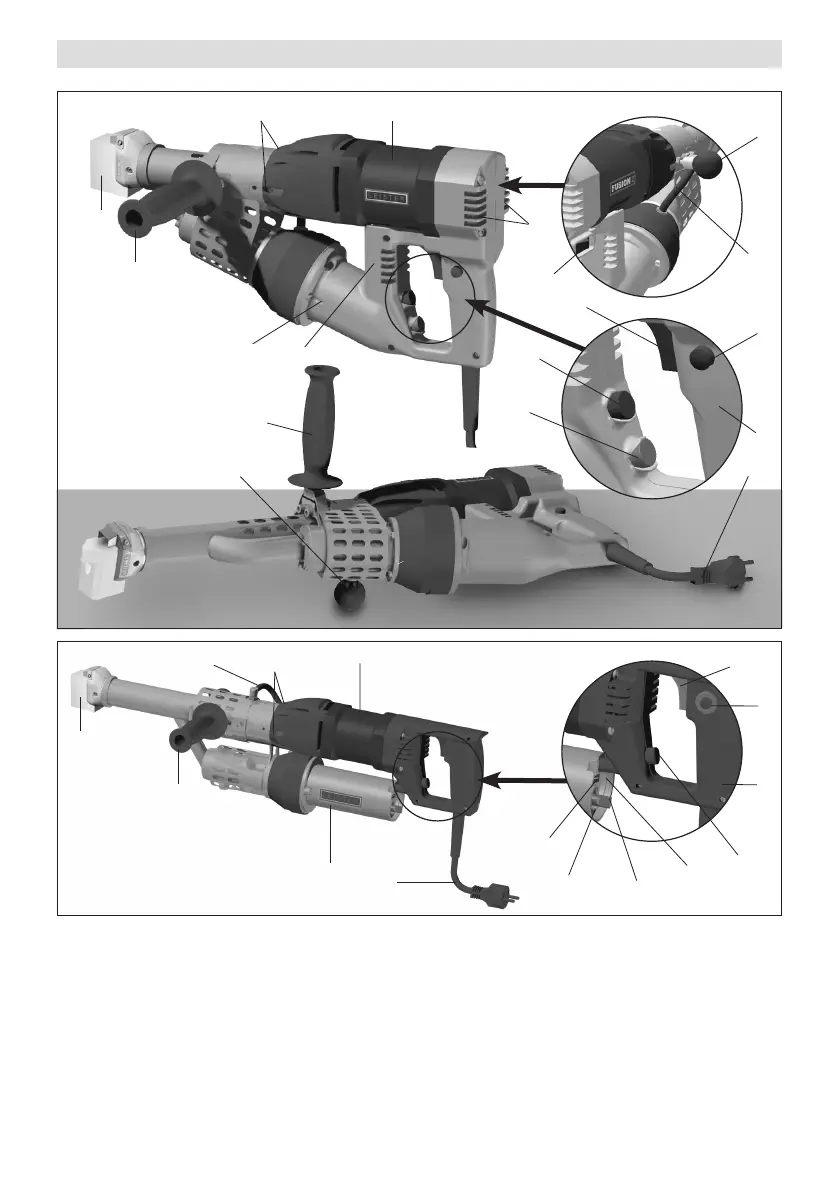

Leister FUSION 2 - Tool Components and Setup; Description of Tool Components

Description of tool
1 Hot air blower switch
2 Air temperature potentiometer
3 Locking device drive on/o switch
4 Drive on/o switch
5 Welding shoe
6 Welding rod opening
7 Extrusion rate regulation potentiometer
8 Tool rest
9 Handle
10 Tool handle
11 Drive unit
12 Hot air blower
13 Power supply cord
14 Air slide
15 Air inlet
16 Air hose
