LEITZ DIALUX 20 - Condensers

22656· 514 A
229 62· 514 R
8

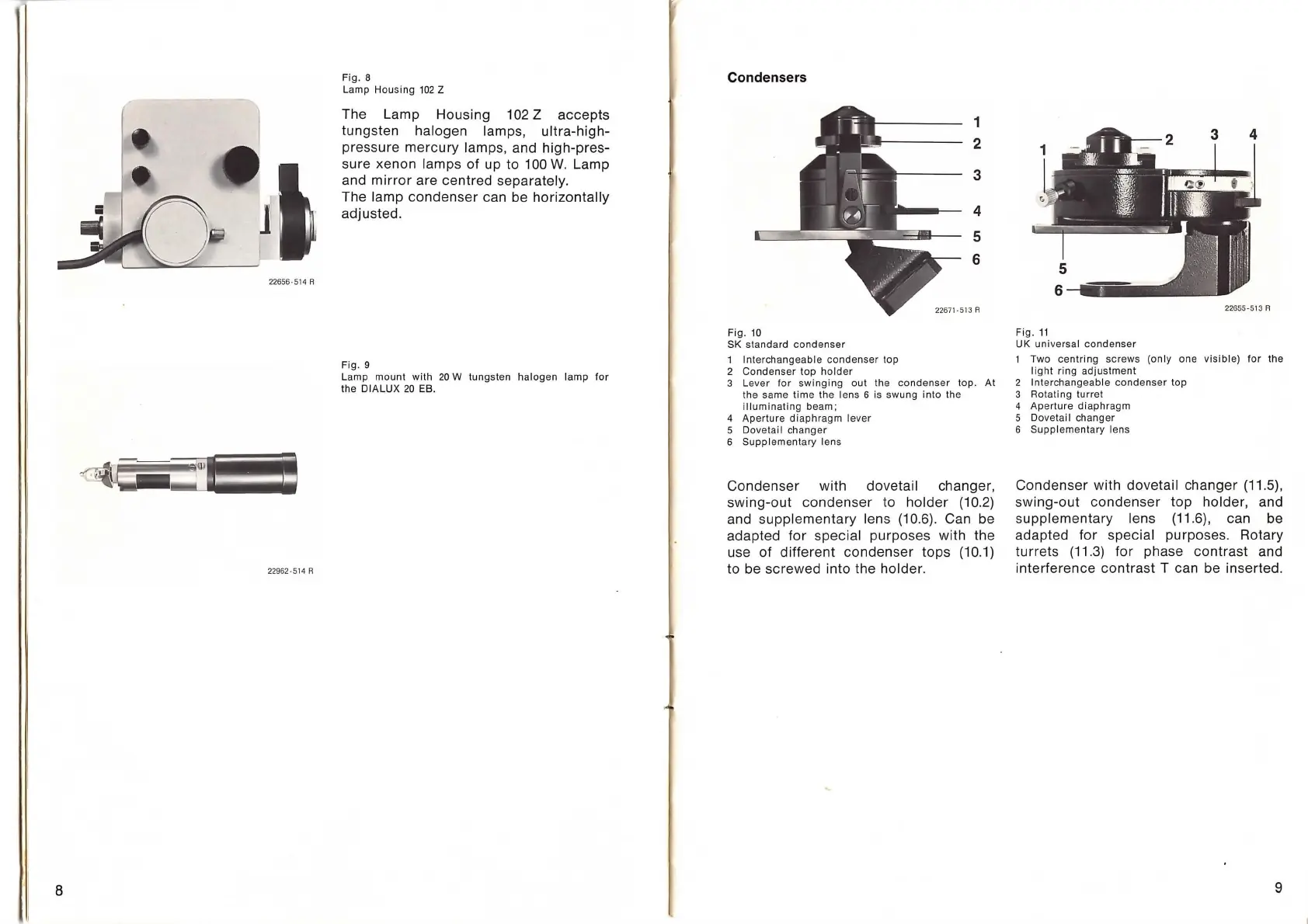

Fig. 8
Lamp Housing
102 Z
The Lamp Housing 102 Z accepts
tungsten halogen lamps, ultra-high-
pressure mercury lamps, and high-pres-
sure xenon lamps of up to 100 W. Lamp
and mirror are centred separately.
The lamp condenser can be horizontally
adjusted.
Fig. 9
Lamp mount with
20 W tungsten halogen lamp for
the DI A LU X 20 EB.
Condensers
Fig. 10
SK standa rd cond ense r
1
Interchangeabl e condenser top
2 Condenser top
hold er
1
2
3
4
5
6
3 Lever for swinging out the condenser to p. At
the same
tim e the lens 6 is swung int o th e
illu min a ting beam;
4 Aperture dia
phr ag m lever
5 Dovetai l changer
6
Supplementary lens
Condenser with dovetail change r,
sw ing-out condenser to holder (1 0. 2)
and supplementary lens (10 . 6) . Can be
adapted
for special purposes with the
use
of different condenser tops (10. 1)
to be screwed into the holder .
22655·513 R
Fig. 11
UK universa l condenser
1 Two cen
trin g screws (o nly one visibl e) for the
light ring a dju st me nt
2 In terchangeable condenser top
3 Rotating
turr et
4 Aperture diaphr
ag m
5
Dovetail chan ger
6 Supplementary lens
Condenser with do vetail changer (11 . 5) ,
swing-out condenser top holder , and
supplementary lens (11 .6), can be
adapted
for special purposes. Rotary
turr ets (11.3) for phase contrast and
interference contrast T can be inserted.
