LELY ASTRONAUT A4 User Manual

5.1004.8641.0 B
Maintenance 5-15
Special Tools to Replace the Twin Tube
• Clamp pliers.
• Tube cutter.

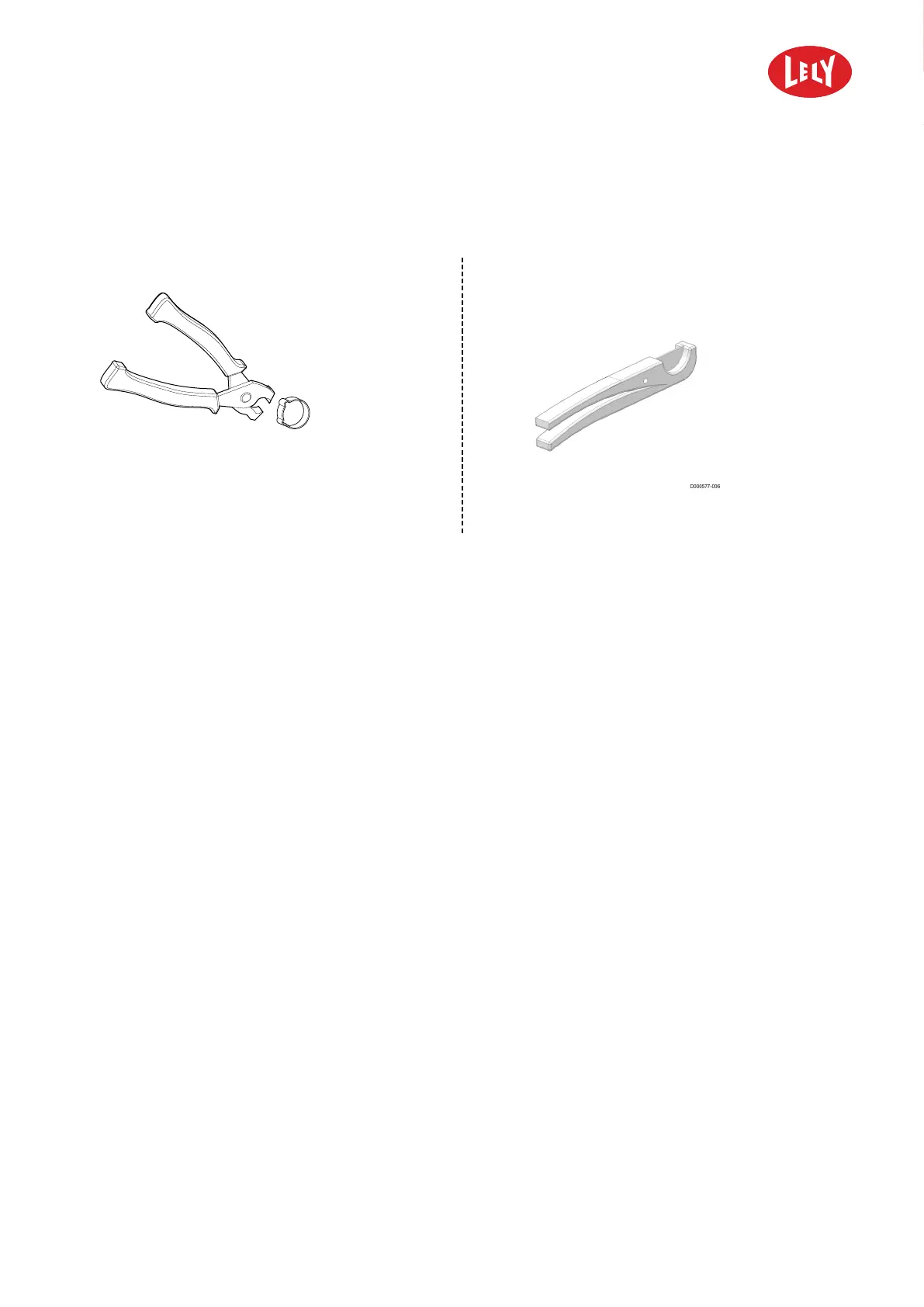

Figure 29. Clamp pliers Figure 30. Tube cutter
Loosen the Cord Cups and Straigthen the Tilt Cups at the E-Link
On the E-Link select:
1. Tab Test.
2. Select Test menu.
3. Select Mothership.
4. Select Cups.
5. At Cord cups select:
1. LF Loose.
2. LR Loose.
3. RF Loose.
4. RR Loose.
6. At Tilt cups select:
1. LF Straight.
2. LRStraight.
3. RF Straight.
4. RR Straight.
in n o vato rs in agriculture
