DIAGNOSIS menue
32 E-LINK D 6060 • D 4060

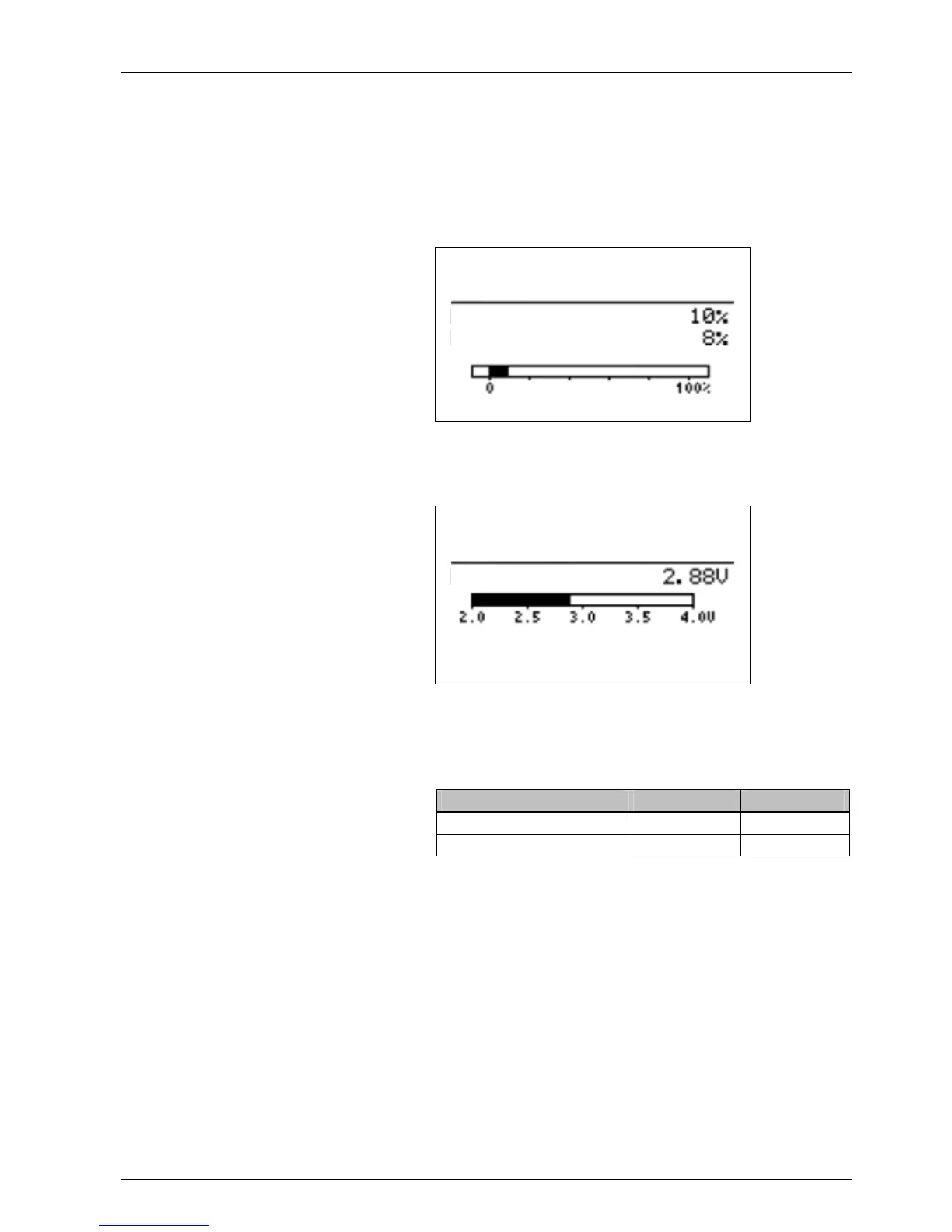

Standard diagnosis – Analog sensors
In the "Analog sensors" diagnosis, all analog measuring values
are displayed numerically and as a bar graph.
The diagnosis screen "1/2" shows - besides the pressure - also
the calibration value. When the system is in the pressure-off
status, the calibration value is calculated anew after 30 sec.:
The diagnosis screen "2/2" shows the output signal of the strain
bolt. The displayed voltage drops with increasing strain:
Analog channels - Overview
The following digital sensors are included in the diagnosis:
Analog sensors D 6060 D 4060
Pressure sensor
Strain bolt
Diagnosis
DiagnosisDiagnosis
Diagnosis
1/2
1/2 1/2
1/2
Analo
