LELY E-LINK D 6060 - Analog Scope Key Functions - Overview

Scope
E-LINK D 6060 • D 4060 55
ANALOG SCOPE key functions - overview

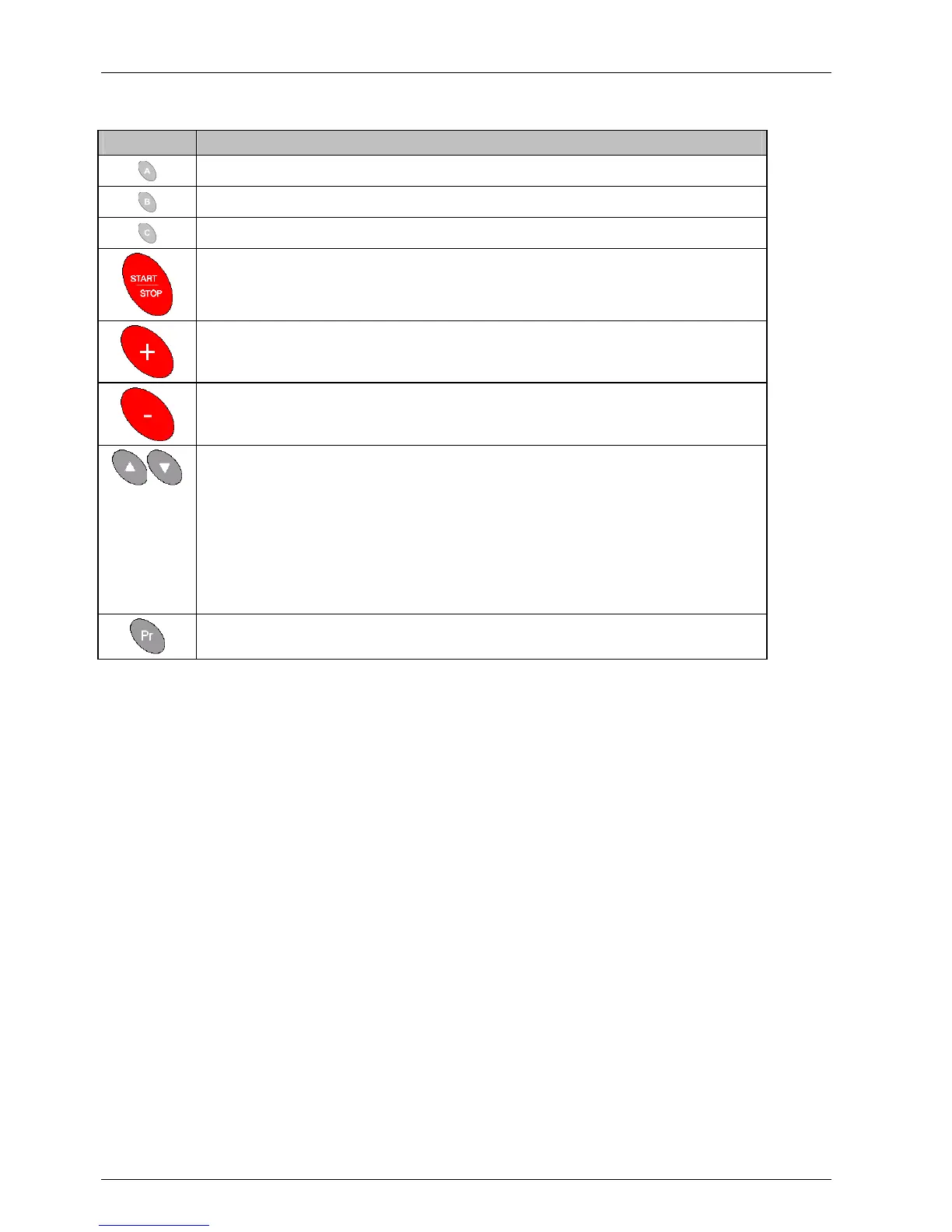

Key Operation
Page down
Entry / exit scope
Page up
Toggling RUN/HOLD mode (start/stop recording)
Increase selected scope parameters
Reduce selected scope parameters
Select scope parameters
Options :
- Page shown
- Time window set (10s - 20s - 50s - 100s - 200s - 500s)
- Cursor position (in HOLD mode only)
- Offset (0..90% measuring range)
- Zoom factor (1x - 2.5x - 5x - 10x)
Return to SYSTEM SERVICE
