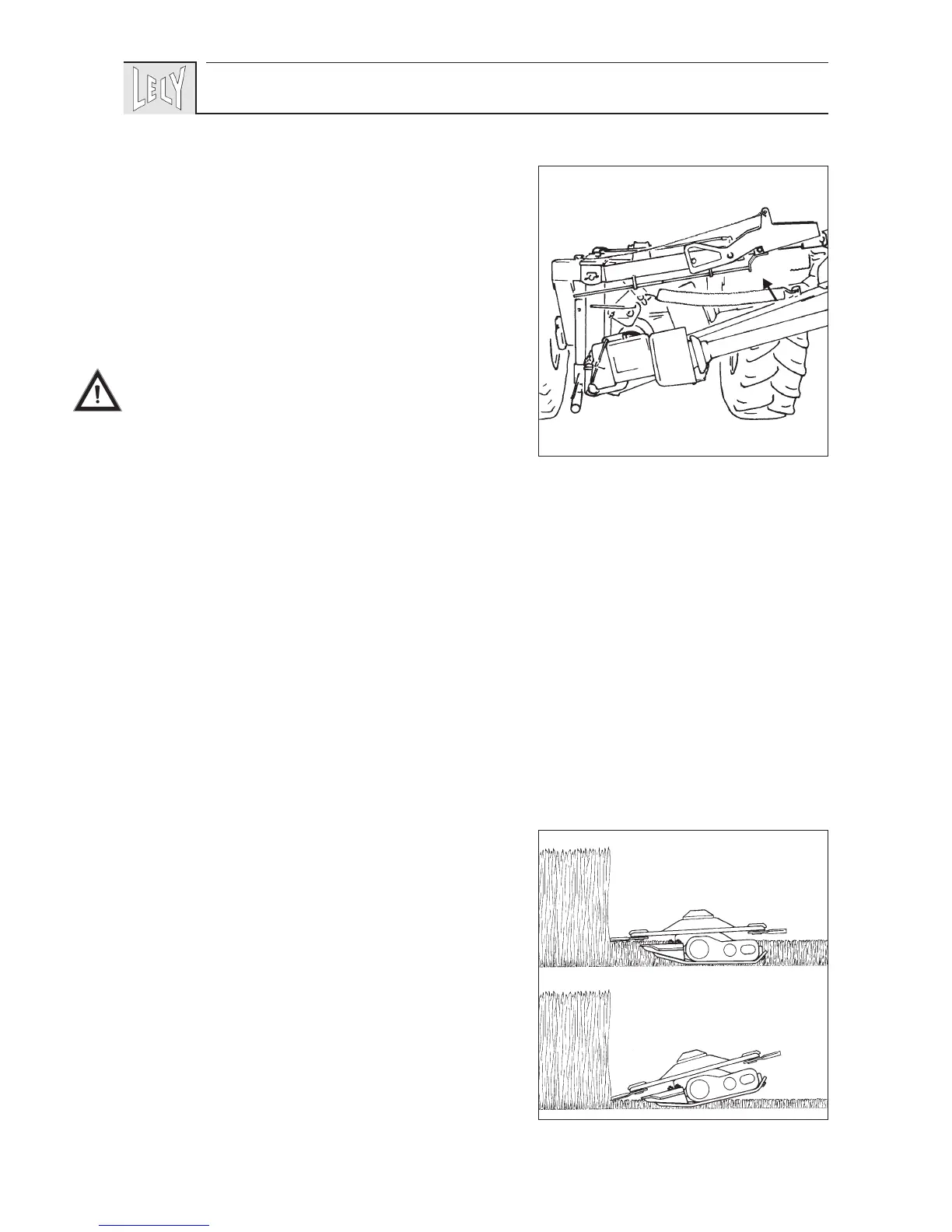

3 TRANSPORT
The SPLENDIMO TC mower can be transported on the
tractor’s 3-point hitch.
- Pull up the locking hook for the hydraulic ram and retract
the ram completely.
- Check if the ram is secured by the locking hook (fig. 5).
Use all such lighting and warning signals as are
mandatory by law.
For transport on public roads: make sure that the front
axle weight is sufficient (fit front weights, if necessary)
and that the rear axle weight allowed as a maximum is
not exceeded.
The machine is now ready for transport.
4 MACHINE ADJUSTMENTS
- Pull up the locking hook of the hydraulic ram and lower the
machine carefully by means of the ram.
- Adjust the tractor hitch in such a way that the hinge pin of
the intermediate chassis has a height of 60 cm over ground
level (fig. 4). Take tractor wheelings into account.
Limit a downward movement with, for example, a
stabilisation chain (optional extra) if it is impossible to
maintain the adjusted height of the tractor hitch.
4.1
Mowing height
- Adjust the mowing height by adjusting the forward
inclination of the cutter bar with the aid of the top link
(fig. 6).
34
5
6
