A CUTTER BAR
ASSEMBLY/DISASSEMBLY

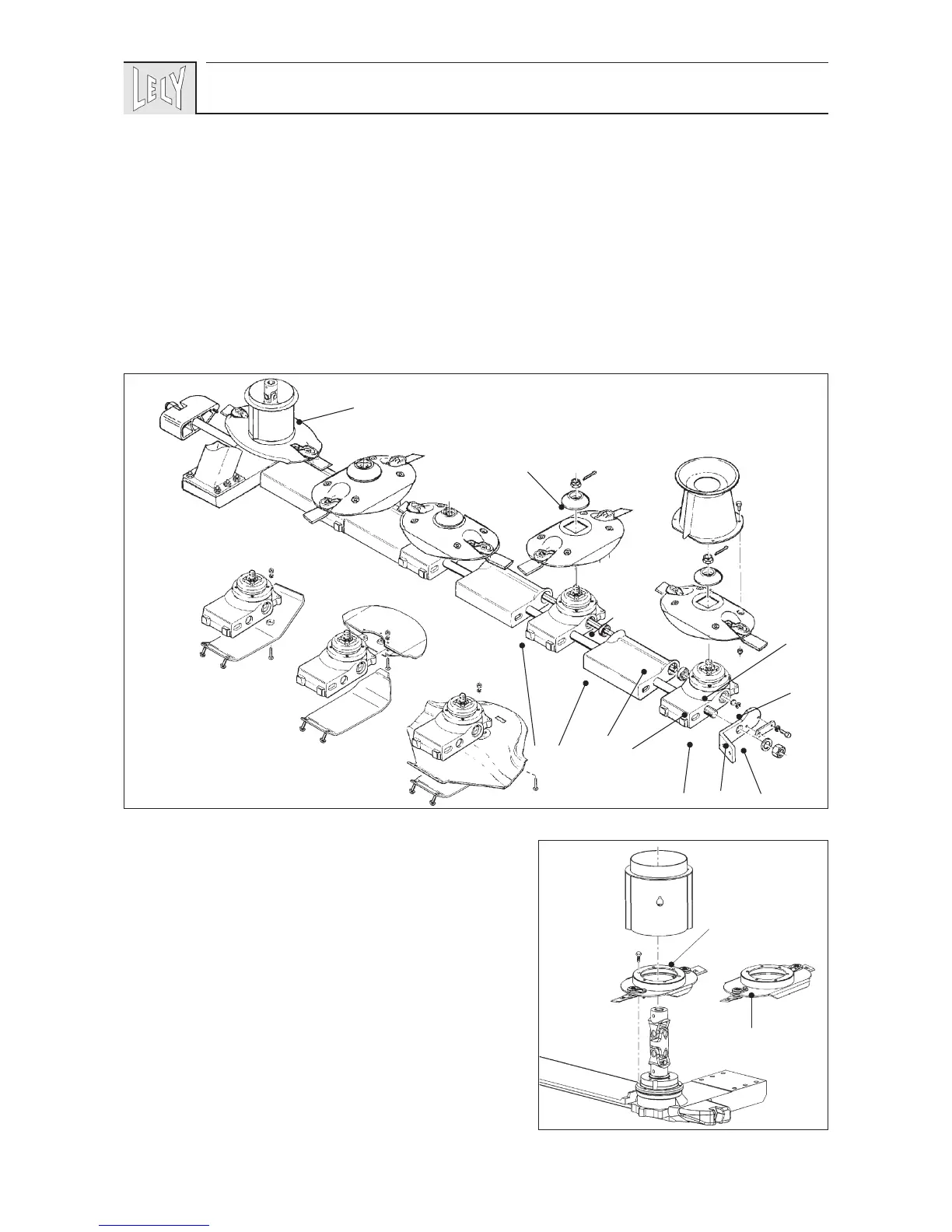

The figures placed between brackets correspond with the numerals in
figure A-1.
The cutter bar is built up of independent units (1). These
mower elements are kept apart by intermediate spacers (2).
The units and spacers are kept together by a connecting
rod (3).
The cutting units are driven from the drive element (4) by a
drive shaft (5).
Thanks to the modular design, mower elements can be
replaced quickly, as can the drive shaft.
Dismount the cutter bar as follows.
- Mount the machine in the tractor’s three point hitch.
- Place the machine on a level floor.
- Remove the securing plate (6).
- Untighten the nut M30 (7) by a few turns.
44
A-1
4
12
987
10
13
6
12
5
3
Supplement A
A-2
Drive disc
”N” Rotation
Drive disc
”S” Rotation
