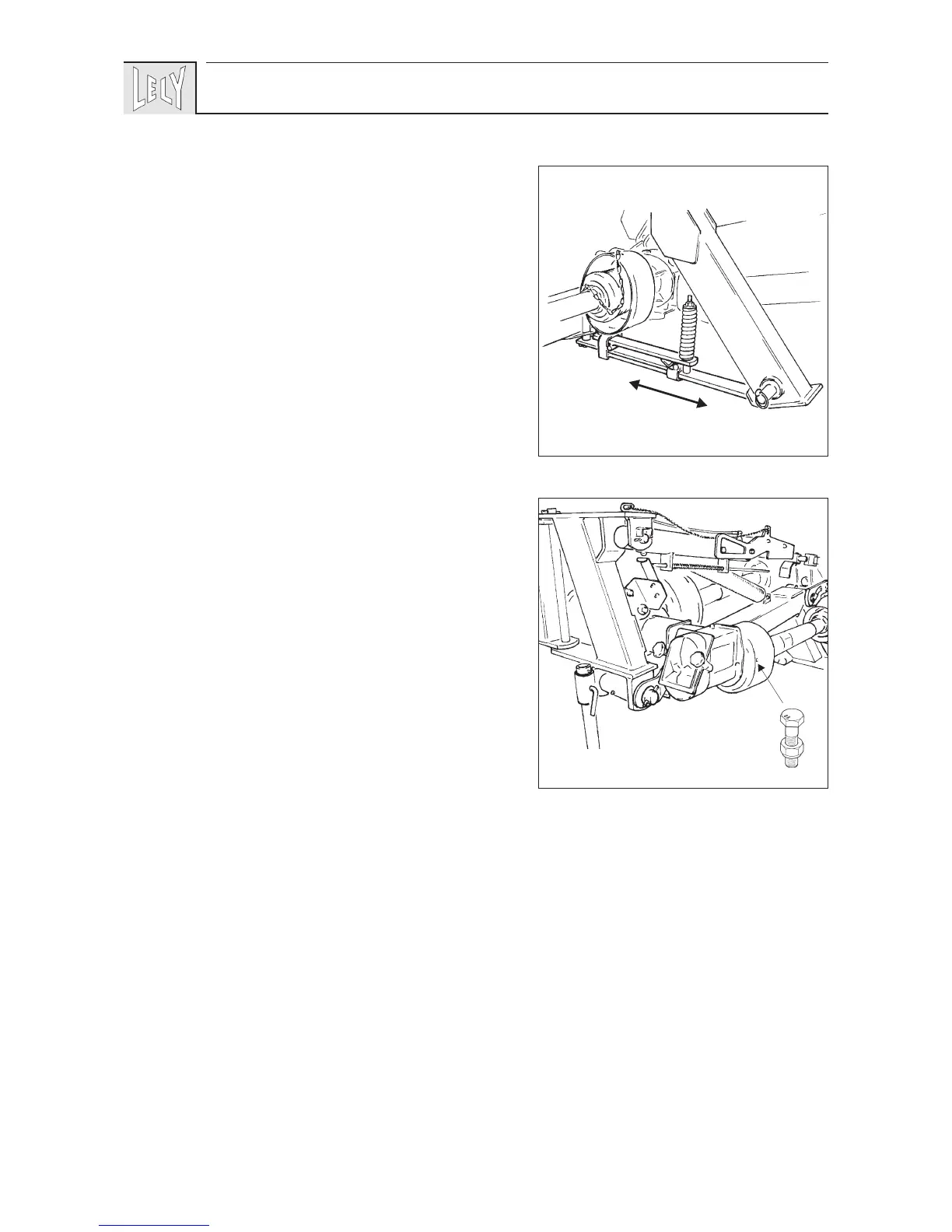

Should the machine hit an obstacle during mowing, it can
move backward thanks to the extension of the breakback
device (fig. 13).
- After extension of the breakback device: drive backwards a
few meters until the breakback device has locked back into
position.
The conditioner’s rotor is protected against overload by a
shearbolt facility.
- Replace a broken shearbolt by a bolt M8x35-8.8 (fig. 14).
37
13
14
M8x35-8.8
