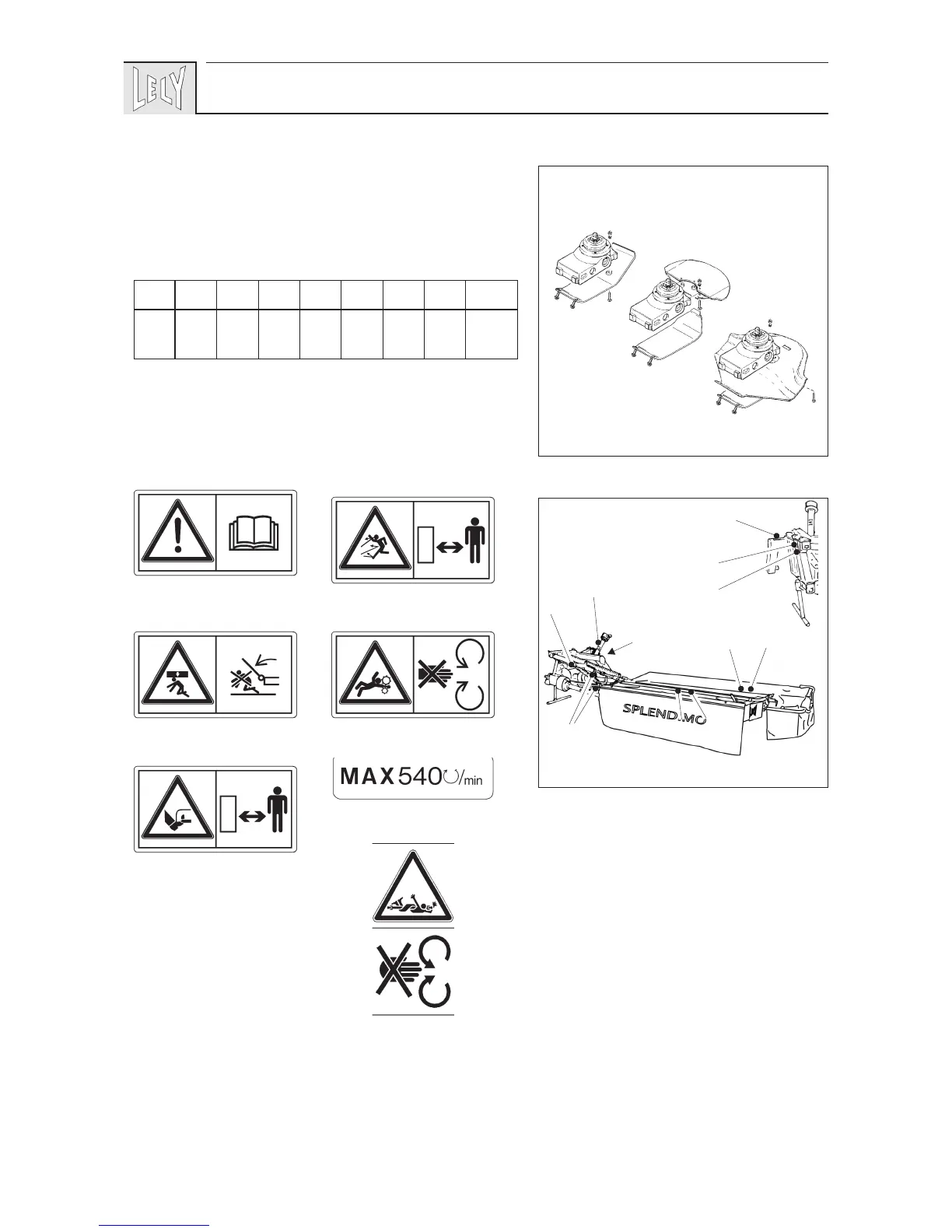

- Check all bolts and nuts for tightness. Pay particular
attention to the bolts which secure the skids and wear
plates (fig. 23).
When tightening loose bolts/nuts the torques listed below
should be applied.
- Check the gearboxes for oil leakage
(for oil change - see chapter 7.5).
- Convince yourself of the presence and undamaged condi-
tion of all safety decals on the machine (fig. 24).
A (P/N 9.1170.0408.0) - 2x -
B (P/N 9.1170.0410.2) - 3x -
C (P/N 9.1170.0420.5)
D (P/N 9.1170.0407.6)
E (P/N 9.1170.0419.4)
F (P/N 9.1170.0125.4) - 2x -
G (P/N 16.61.175) - 3x -
41
23
24
A
G
G
BE
DA
F
B
C
F
A
G
F
C D
B
E
M6 M8 M10 M12 M14 M16 M20 M24
Nm 10 25 50 85 135 215 410 710
kgm 1,0 2,5 5,0 8,5 13,5 21,5 41,0 71,0
