3.2 Electrical connection
DANGER!
Contact of parts under voltage is extremely dangerous!
• Secure meters with a transformer connection in the voltage path with a back-up fuse of <6 A.
The supply lines to the device - which can total up to nine depending on the energy meter design -
must be laid with cable glands and connected as per figure 3.2.
Note: When using the EM4TII+ with the communication device PEMG, connections for power supply,
communication and GPS are combined in one cable

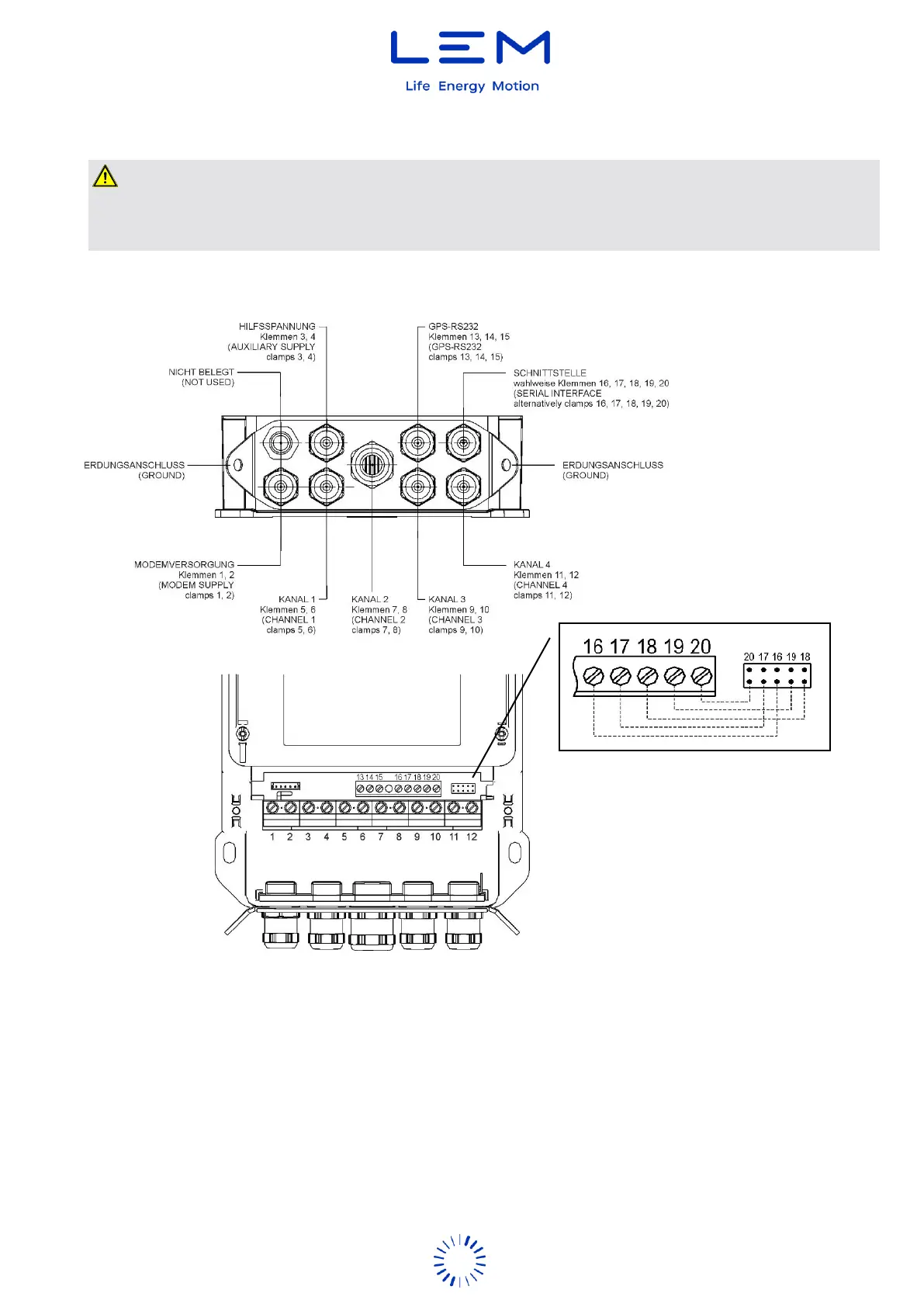

Figure 3.2: Terminal block
