LeMond REvMaster - Figure 1: Final Assembly; Figures

Page 24

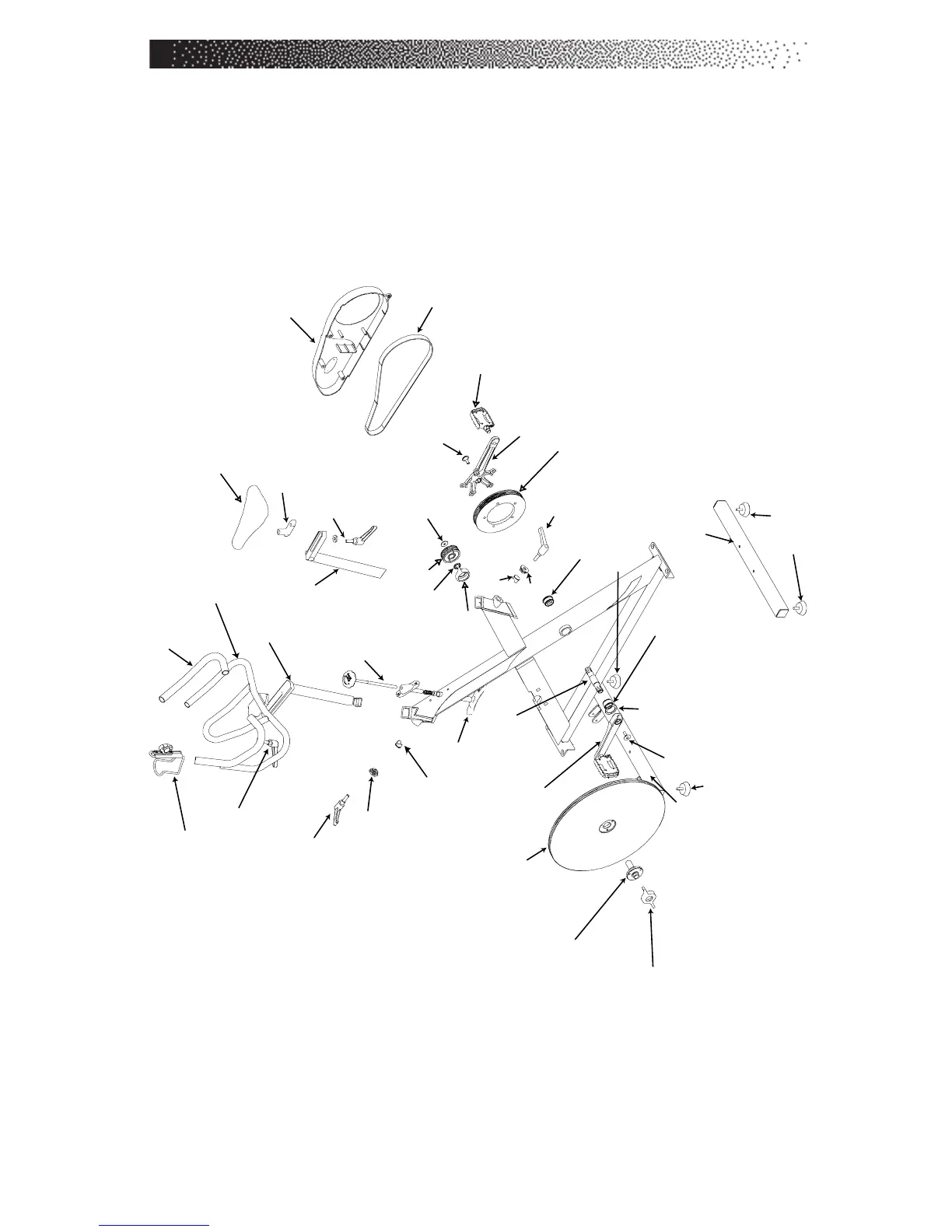

Figure 1: Final Assembly
FIGURES
Base Levelers 4 X 0850
Rear Base 108
Pillow Block Bearing 2 x H050
Spline Shaft 1 x 052 Screw 3 x H616
Assy, Water Bottle Cage 1 x HUL - 131A
Handle 4 x 1030
Plug 2 x 024
V-Plunger 2 x 025
Flywheel 1 x 040
Assy, Brake Pad Holder 1 x 0220
Grips, pair 1 x VLG- 041
Seat 1 x VL3017
Handlebar Post 1 x 100
Assy, Handlebar (includes grips) 1 x 160
Seat Slider 1 x 020
Seat Post 1 x 101
Flywheel Pulley 1 x 015
Washer (1005) Handle (1030)
(025)
(024)
(1030)
Belt 6PK1160
Front Cove
r
1 x 059
Right Crank 1 x 0875
Front Base 1 x 107
Left Crank 1 x 0875-1
Crank Bolt 2 x 885
*Lock Ring
*Left Bearing Cup
*Right Bearing Cup
Spindle 1 x 0881
(0850)
Handle (1030) Brass Washer 2 x 1005
Assy, Tension Knob 1 x 0270
(H050)
Spacer 1 x 049B
Washer 1 x 049C
Pedals, Standard, P
a
1 X VP-518-AT
(855)
Pulley, Crank (Rear Drive) 1 x 009
(0850)
