LeMond REvMaster - Figure 2: Crank Assembly

Page 25
FIGURES

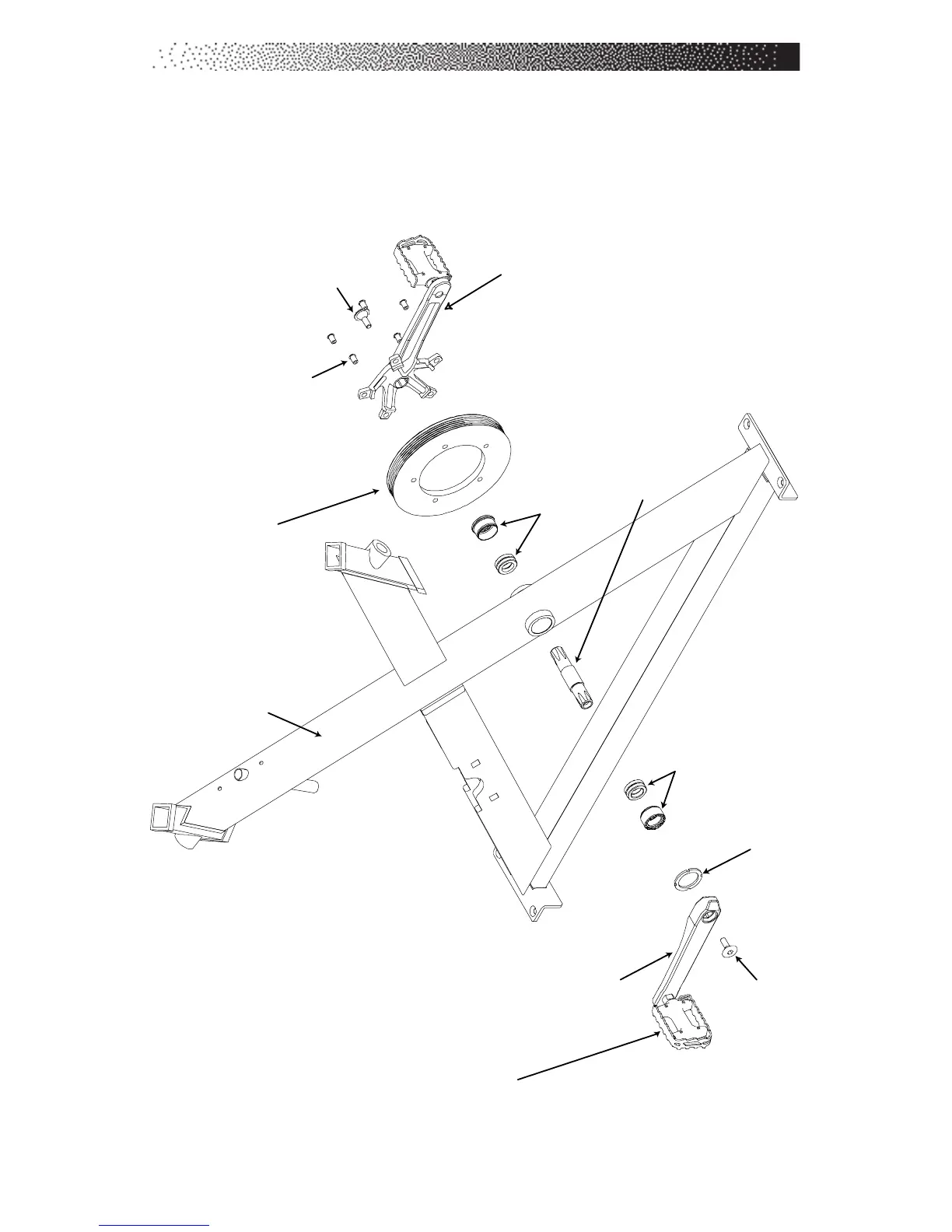

Figure 2: Crank Assembly
Pedal, Pair, Standard
1 x VP-518-AT
Crank Bolt 2 x 885
(885)
Left Crank 1 x 0875-1
*Lock Ring
*Left Bearing Cup (2 bearings are pressed in cup)
Bottom Bracket Spindle 1 x 0881
*Right Bearing Cup (2 bearings are pressed in cup)
Pulley, Crank (Rear Drive) 1 x 009
Bolt, Right Crank Pulley Mounting 5 x RCW-125
(Pedal)
Right Crank 1 x 0875
Frame
*Assy, Bottom Bracket 1 x BB 396 Includes:
Right Bearing Cup Left Bearing Cup Lock Ring
