Hardware Installation Guide
revision 7 — 331

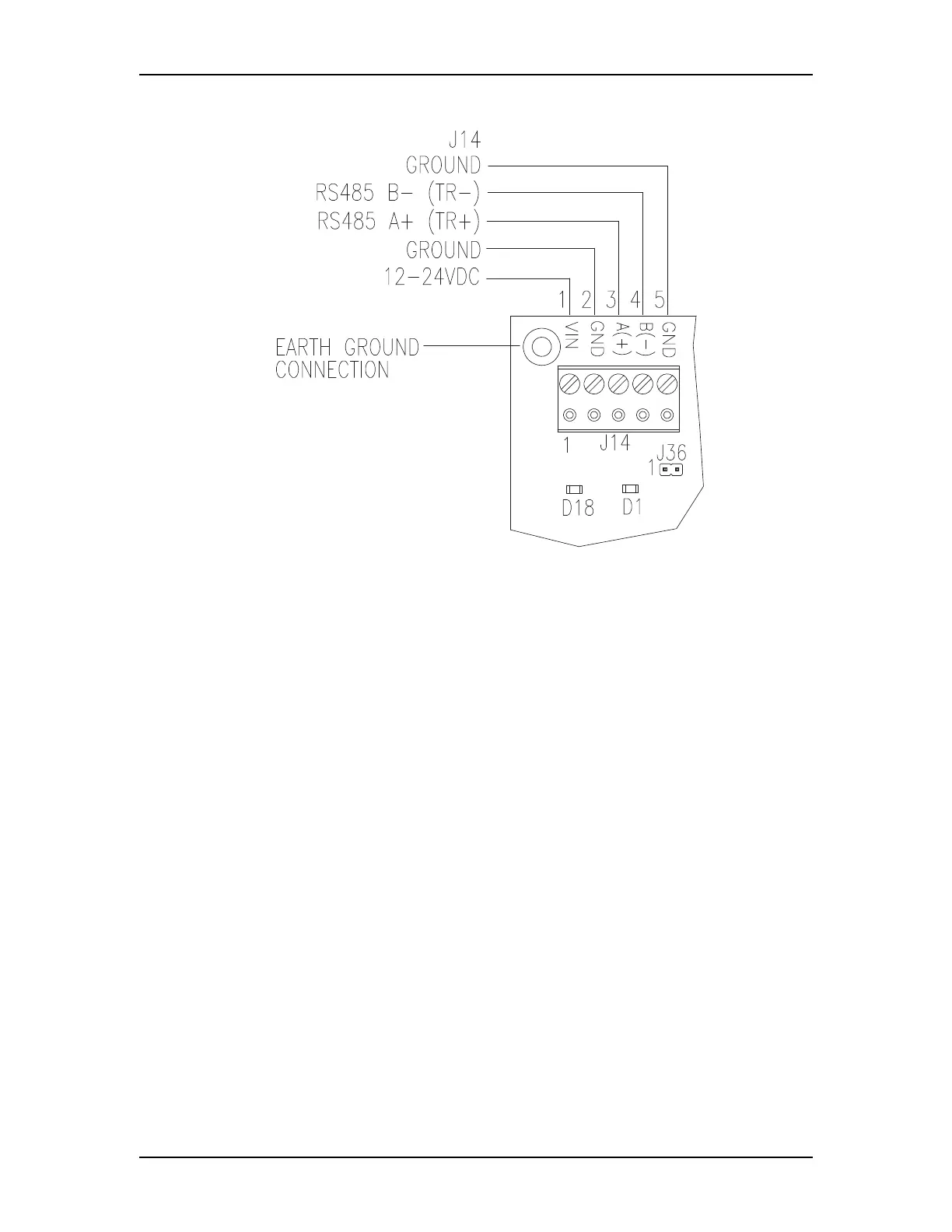

Power source wiring
60.6 UL Listed Installations
For UL installations, the following must be observed:
• All field wiring terminals are suitable for single wire only.
• Use 22 AWG minimum for wiring RS-485.
• RS-485 4-wire is “Not Evaluated by UL” and therefore cannot be used in UL Installations.
• The use of AC Strike is “Not Evaluated by UL” and therefore cannot be used in UL installations.
• Environmental for UL installations:
- Temperature: -10 to +49°C (14 to 120°F) operating
- Humidity: 85+/-5% at 30+/-2°C (86°F)
