Page 13
WARNING
USE COPPER CONDUCTORS ONLY
1 - Disconnect all power supplies.
2 - Remove the air handler access panel.
3 - Route the eld supply wires to the air handler
electrical connection box.
4 - Use wire nuts to connect the eld supply conductors
to the unit black and yellow leads, and the ground
wire to ground terminal marked GND.
5 - 5. Replace the air handler access panel.
SIDE
TOP

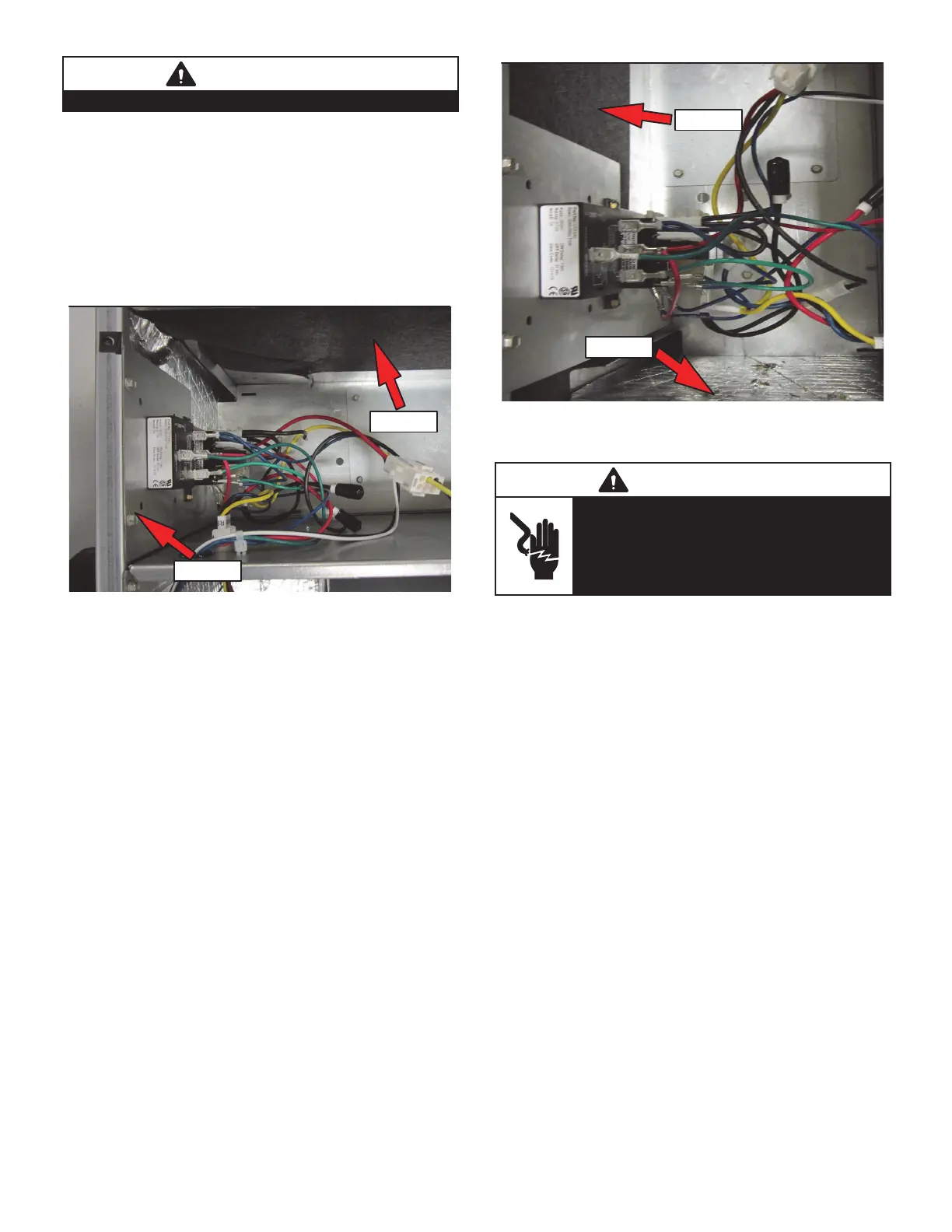

FIGURE 15. Electrical Connections
(Upow Conguration)
NOTE - To avoid the possibility of moisture damage to the
control in some right-hand discharge congurations, the
control panel can be relocated to the end panel as shown
in gure 16.
TOP
SIDE
FIGURE 16. Control Panel Relocated to End Panel
(Left-Hand Horizontal Conguration)
WARNING
Electrically ground air handler. Connect
ground wire to ground terminal marked
“GND”.
Failure to do so can result in death or
electrical shock.
To Next Page
