Page 24

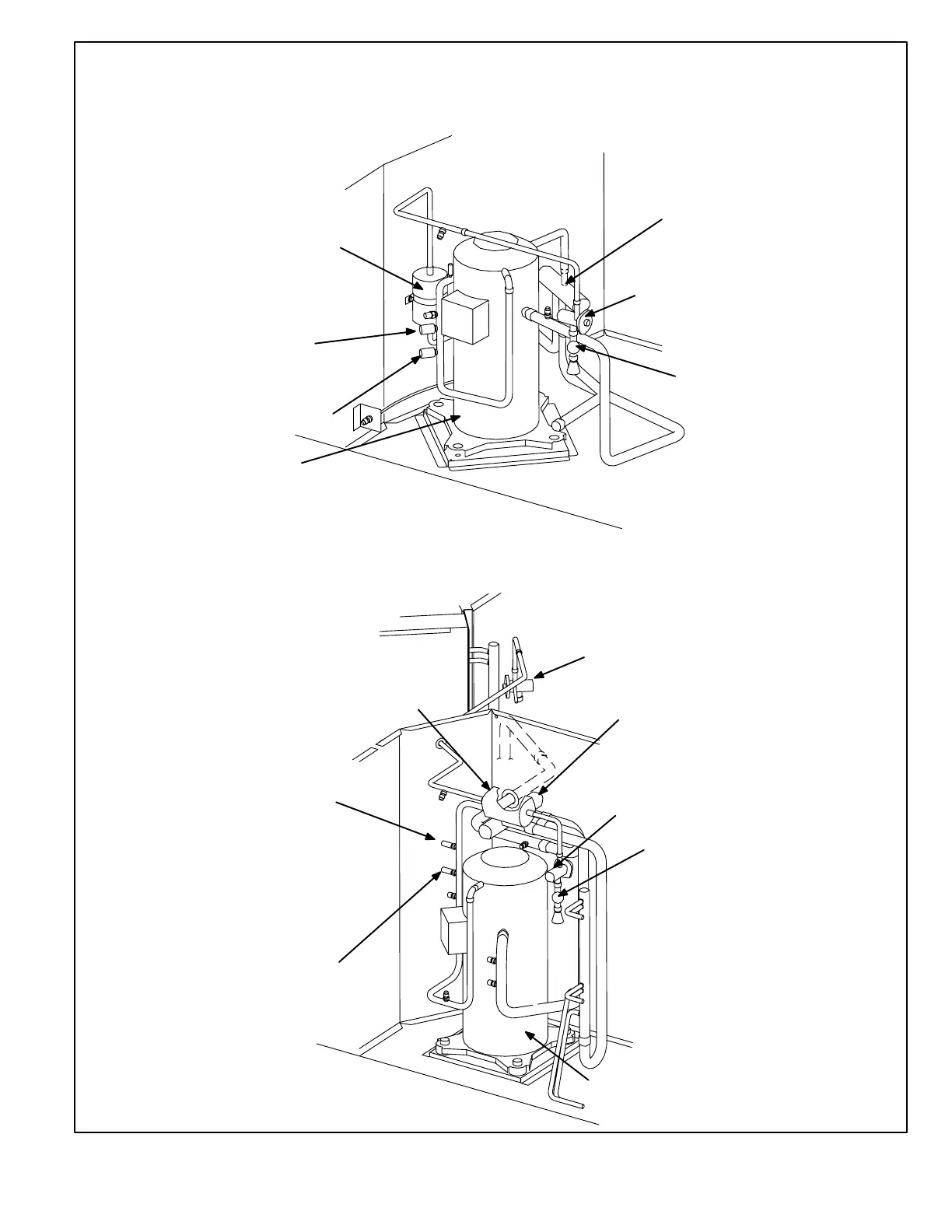

COOLING COMPONENTS
FIGURE 10
CHP20-030, CHA/CHP16/20-036
CHA/CHP16-048/060, CHP20-042/048/060
REVERSING V
AL
VE
L1
DRIER
OUTDOOR
TXV V
AL
VE
DEFROST THERMOST
A
T SWITCH
S6
SCROLL COMPRESSOR
B1
HIGH PRESSURE SWITCH
S4
DEFROST PRESSURE SWITCH
S46
OUTDOOR
TXV V
AL
VE
REVERSING V
AL
VE
L1
DEFROST THERMOST
A
T SWITCH
S6
DRIER
HIGH PRESSURE SWITCH
S4
DEFROST PRESSURE SWITCH
S46
SCROLL COMPRESSOR
B1
INDOOR
TXV V
AL
VE
23
25
Table of Contents
CHA/CHP16, CHP20
1
Specifications
3
CHA16
3
CHP16
4
CHP20
5
Optional Accessories
6
CHA/CHP16
6
CHP20
7
Electrical Data
8
CHA16
8
CHP16
9
CHP20
9
Blower Data
10
CHA16
10
CHP16/20
13
Accessory Blower Data
16
Illustrations
17
Application
18
Components
18
Control Box
18
Cooling
22
Condenser Fan and Indoor Motor
27
Electric Heat
28
Electric Heat Tables
31
CHA16-024/030
31
CHA16-036
32
CHA16-048
33
CHA16-060
34
CHP16-024/030/036
35
CHP16-048/060 (Single Phase)
36
CHP16-036
37
CHP16-048/060 (Three Phase)
38
CHP20-024/30
39
CHP20-036/042
40
CHP20-048
41
CHP20-060
42
Placement and Installation
43
Electrical Connections
43
Start Up
43
Cooling System Service Checks
43
Heating System Service Checks
44
Indoor Blower Operation / Adjustment
44
Maintenance
45
Accessories
46
Wiring and Operation Sequence CHA/CHP Units
52
CHP16/20 P Voltage
52
CHP16/20 Y Votage
54
CHP16/20 G Voltage
55
CHA16 P Voltage
57
CHA16 Y Voltage
58
CHA16 G, J Voltage
59
Wiring and Operation Sequence ECH16 Units
60
ECH16 P Voltage
60
ECH16 Y Voltage
63
ECH16 G and J Voltage
65
Electromechanical T stat with Economizer
66
