Page 48

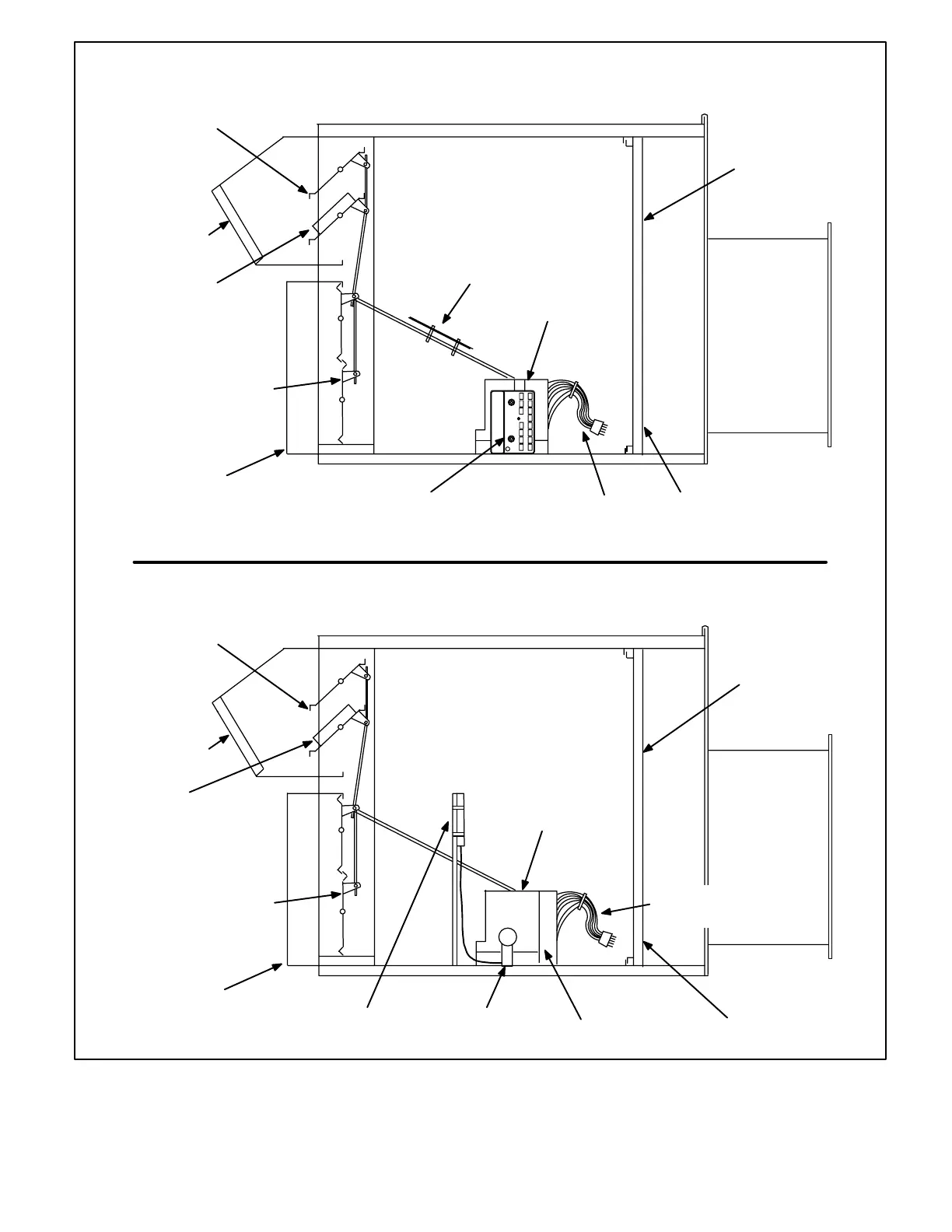

EMDH16M PARTS ARRANGEMENT
FIGURE 23
EMDH16 PARTS ARRANGEMENT
ACCESS COVER
REMOVED
ENTHALPY CONTROL
on REMOTE
MOUNTING BASE
DAMPER MOTOR
ENTHALPY CONTROL
MIXED AIR
SENSOR CONTROL
MIXED AIR
SENSING BULB
NOTE - Mixed air sensor and
sensing bulb are shown as they
are factory installed in a
EMDH16-41. EMDH16-65 is simĆ
ilar. Mixed air sensor should be
removed from economizer and
installed in unit blower compartĆ
ment and sensing bulb should
be installed in supply air stream
as shown in figure 26.
OUTDOOR AIR DAMPERS
RETURN AIR DAMPERS
ENTHALPY SENSOR
ENTHALPY SENSOR
ACCESS COVER
REMOVED
OUTDOOR AIR DAMPERS
RETURN AIR DAMPERS
MIXED AIR SENSOR
NOTE - Mixed air sensor is shown
as it is factory installed in a
EMDH16M-41. EMDH16M-65 is
similar. Mixed air sensor should
be removed from economizer
and installed in supply air stream
as shown in figure 26.
WIRING HARNESS
(connects to jackplug in
blower compartment)
DAMPER MOTOR
FILTER
WIRING HARNESS
(connects to jackplug
in blower compartment)
TRANSITION
TRANSITION
FILTER
RETURN DUCT
FLANGE
OUTDOOR DAMPER
HOOD
OUTDOOR DAMPER
HOOD
RETURN DUCT
FLANGE
