Lennox eCOMFORT R32 GAC 035S

• 46 •
SPXX KGRL
DPXX WFIF
AVUB PHRF
GAC/GAH 080S
GAC-H_080S_H_R32_Z
GAC-H_080S_S_R32_Z
Installation manual / eCOMFORT R32-MIL166E-0222 - 09/2022
STANDARD VERSION OR WITH HIGH PRESSURE EC FANS (HIPF)
UNIT WITH STANDARD AC FANS (SFAC)
All dimensions in mm
All dimensions in mm
Controller connection
Ø 29
Victaulic or welded
connection
Flange connection Flange connection
Controller connection
Ø 29
Victaulic or welded
connection
Flange connection Flange connection
Hydraulic module with single pump Flange connection
Hydraulic module with twin pum Water lter (supplied loose)
Rubber anti-vibration mounts Domestic hot water supply : desuperheater
1.- GENERAL CHARACTERISTICS

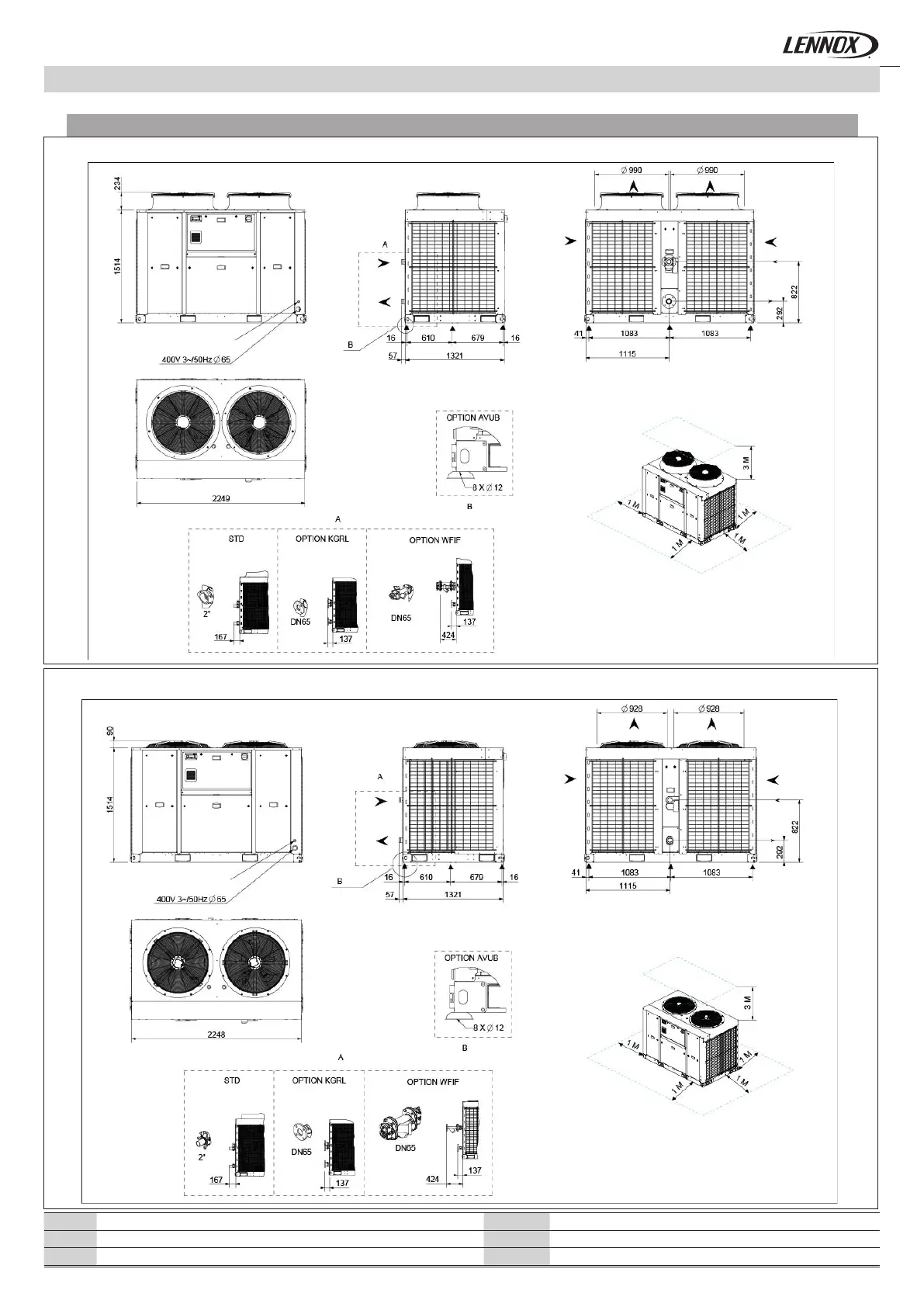

1.9.- DIMENSIONS
