ARun 24VAC control wires through cutout with grommet.
BRun 24VAC control wires through wire tie.
CMake 24VAC control wire connections using field provided wire
nuts.
DTighten wire tie to security 24V control wiring.
HIGH VOLTAGE FIELD WIRING
LOW VOLTAGE (24V) FIELD WIRING
FACTORY WIRING
CUTOUT WITH
GROMMET
NOTE - FOR PROPER VOLTAGES, SELECT THERMOSTAT WIRE (CONTROL WIRES)
GAUGE PER TABLE ABOVE.
WIRE RUN LENGTH AWG# INSULATION TYPE
LESS THAN 100' (30 METERS) 18 TEMPERATURE RATING
MORE THAN 100' (30 METERS) 16 35ºC MINIMUM.
WIRE NUTS
BLACK
24V CONTROL WIRES
YELLOW
TIGHTEN WIRE TIE
UNIT LOW VOLTAGE CONNECTIONS
NOTE - DO NOT BUNDLE ANY EXCESS 24VAC CONTROL WIRES INSIDE CONTROL
BOX.
NOTE - WIRE TIE PROVIDES LOW VOLTAGE WIRE STRAIN RELIEF AND TO MAINTAIN
SEPARATION OF FIELD INSTALLED LOW AND HIGH VOLTAGE CIRCUITS.
A
B
C
D
3
NOTE - REFER TO FURNACE, BLOWER COIL AND ACCESSORY INSTRUCTIONS FOR ADDITIONAL WIRING
CONFIGURATIONS WITH OTHER OPTIONAL CONTROLS.
EL16XC1
COND.
UNIT
EL16XC1
COND.
UNIT
EL16XC1
COND.
UNIT
EL16XC1
COND.
UNIT
EL16XC1
COND.
UNIT
EL16XC1
COND.
UNIT
EL16XC1
COND.
UNIT

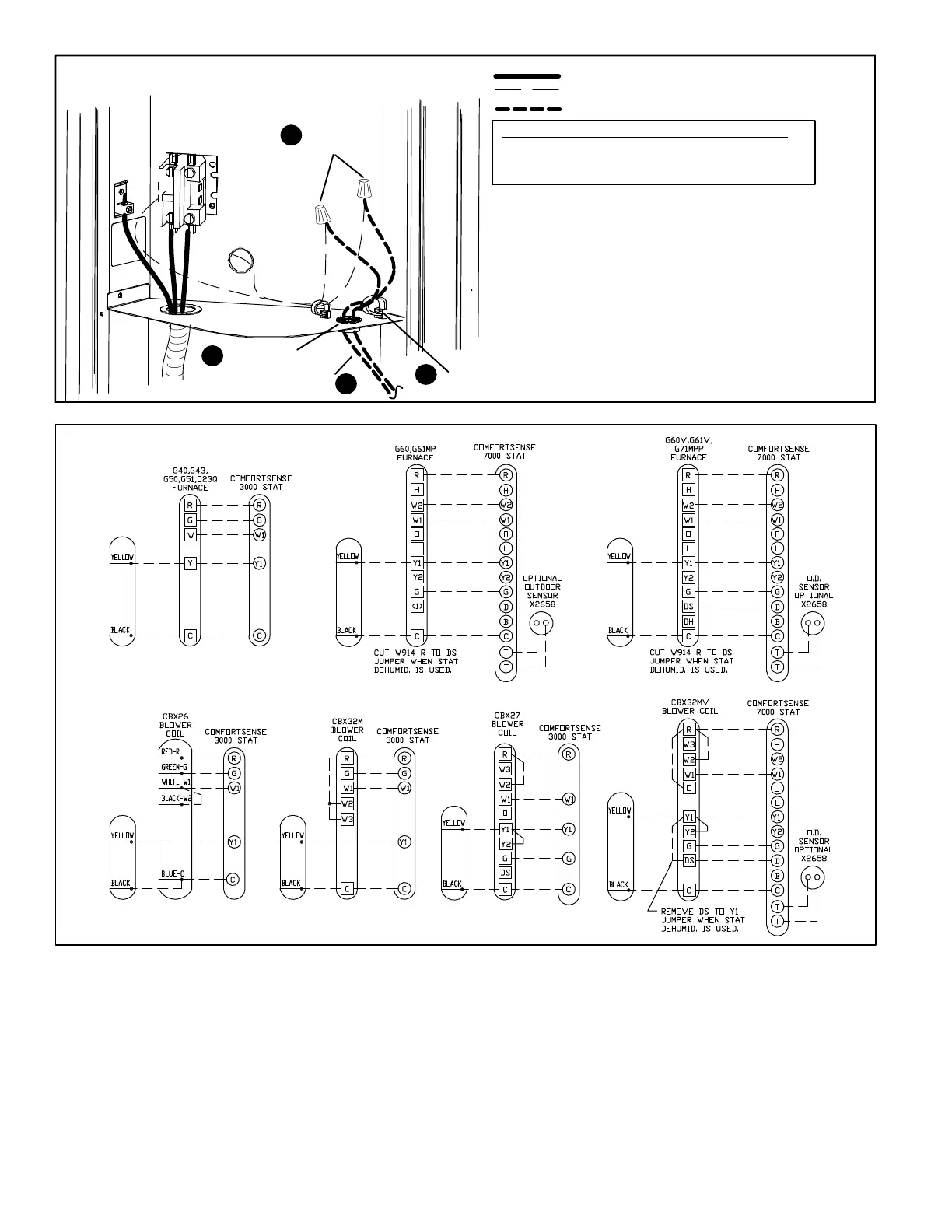

Figure 13. 24VAC Control Wiring Diagrams (Field Installed)

Lennox EL16XC1 Series Specifications

General

Efficiency	Up to 17 SEER
Sound Level	As low as 71 dB
Stages	Single-stage
Refrigerant	R-410A
Sound Level (Outdoor Unit) (dB)	As low as 71 dB
