Page 2
Model Number A B C D E F G H J K
EL22XPV-024
39 (991)
35-1/2 (902) 39-1/2 (1003) 16-7/8 (429) 8-3/4 (222) 3-1/8 (79) 30-3/4 (781) 4-5/8 (117) 3-3/4 (95) 26-7/8 (683)
EL22XPV-036
EL22XPV-048
45 (1143)
EL22XPV-060
ELECTRICAL
INLETS
SIDE VIEW
DISCHARGE AIR
SUCTION LINE
CONNECTION
LIQUID LINE
CONNECTION
B (width)C (depth)
4−1/4(108)
4−3/4
(121)
1 (25)
2 (51)
END VIEW
UNIT SUPPORT
FEET
D
A
(height)
E
F
GHI
J
K
SETTING THE UNIT (Continued) –
Unit Placement
NOTICE!
Roof Damage!
This system contains both refrigerant and oil. Some
rubber roong material may absorb oil, causing the
rubber to degrade. Failure to follow this notice could
result in damage to roof surface.

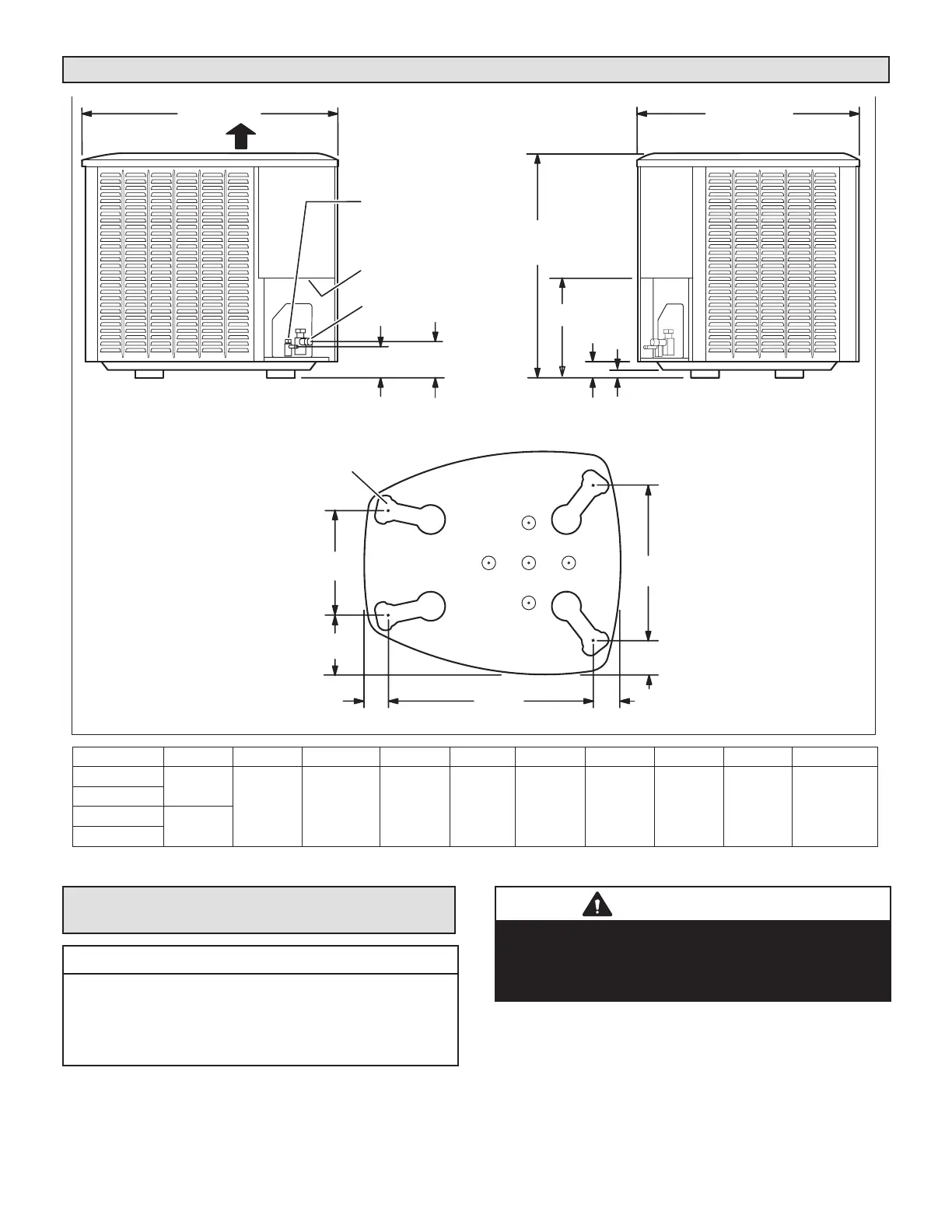

UNIT DIMENSIONS – INCHES (MM)
IMPORTANT
This unit must be matched with an indoor coil as
specied with AHRI. For AHRI Certied system match-
ups and expanded ratings, visit www.LennoxPros.com
Coils previously charged with HCFC-22 must be ushed.
