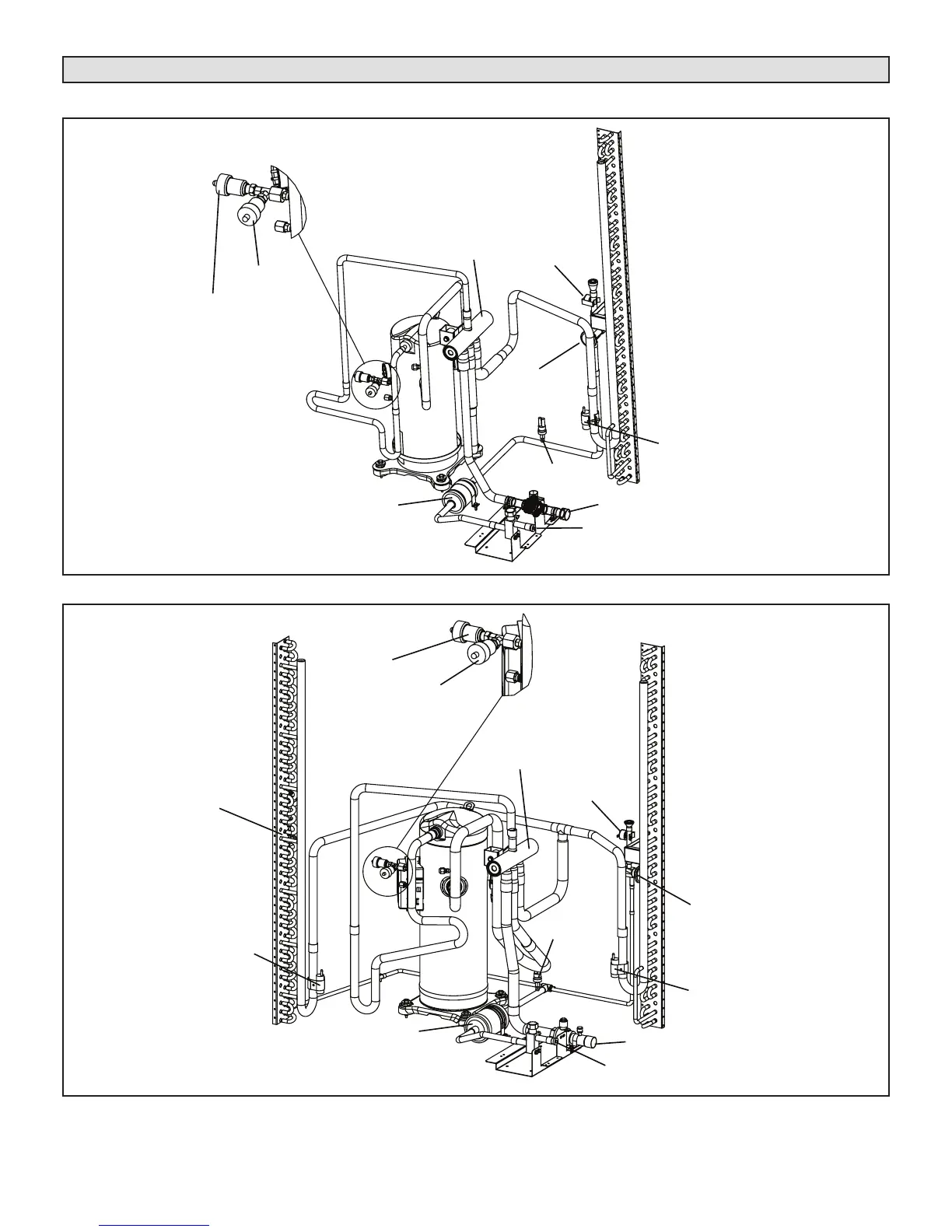

Unit Plumbing Parts Arrangement
ELP090S4S
HIGH PRESSURE
SWITCH (S4)
PRESSURE
SWITCH (S192)
LIQUID LINE
BI-FLOW DRIER
LIQUID LINE SERVICE VALVE
SUCTION LINE SERVICE VALVE
LOSS OF CHARGE
SWITCH (S24)
CTXV SENSING BULB
DEFROST SWITCH
LOCATION (S6)
REVERSING
VALVE
CHECK EXPANSION
VALVE (CTXV)
ELP120S4S
HIGH PRESSURE
SWITCH (S4)
PRESSURE
SWITCH (S192)
DEFROST SWITCH
LOCATION (S6)
REVERSING
VALVE
LIQUID LINE
BI-FLOW DRIER
LIQUID LINE SERVICE VALVE
SUCTION LINE SERVICE VALVE
CTXV SENSING BULB
CTXV SENSING BULB
LOSS OF CHARGE
SWITCH (S24)
DEFROST SWITCH
LOCATION (S6)
CHECK EXPANSION
VALVE (CTXV)
