IOM – FLEXY II – 1007 – E Page 19

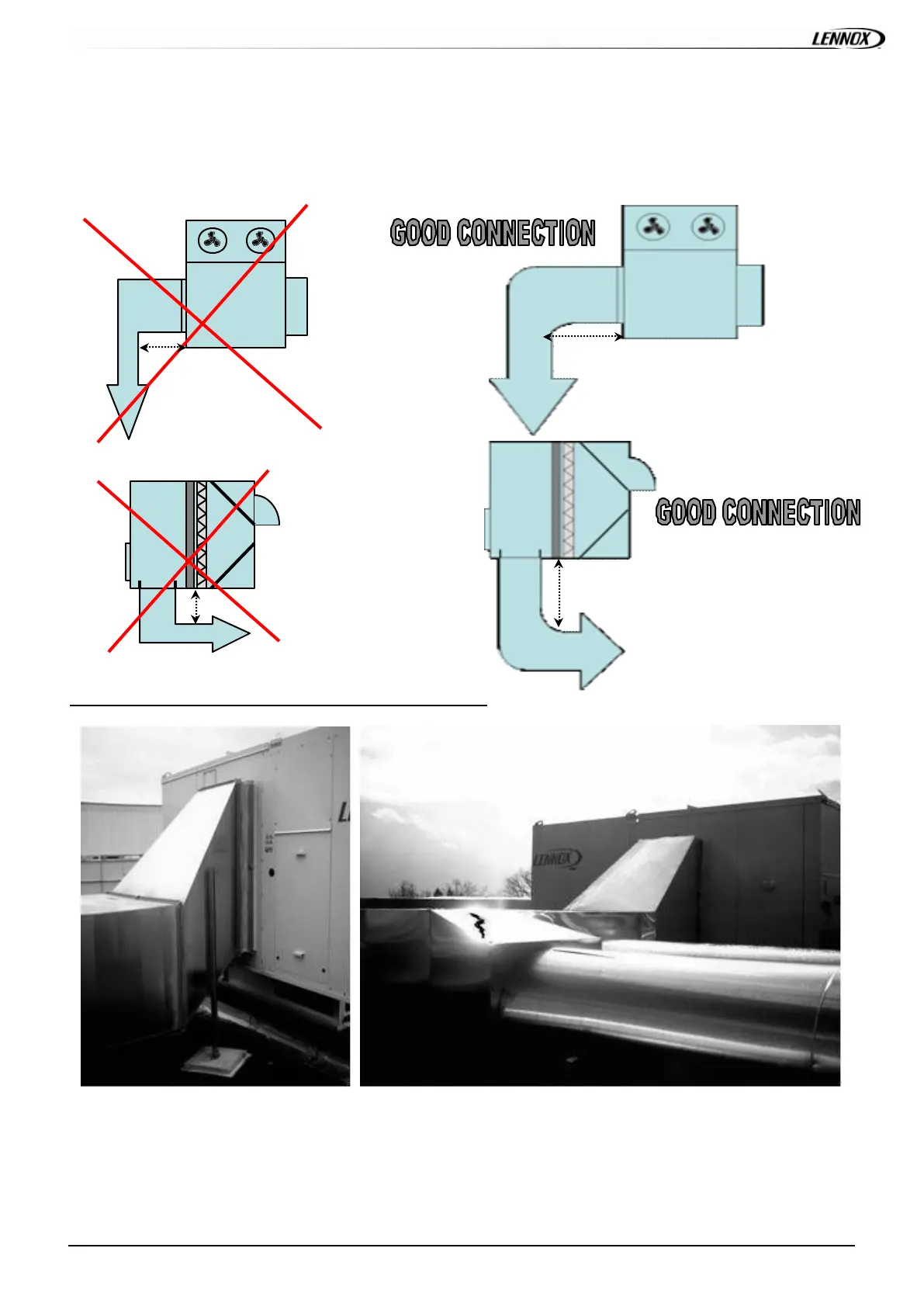

Whatev er the supply conf iguration is, res pec t a minimal duct’s length (D) of 2m bef ore any elbow or any duct’s diameter
change.
Thes e rec omm endat ions are im perativ e in t he cas e of 2 independent turbines (s izes f rom 150k W t o 230kW and all unit s
equipped with gas module)
Horizontal supply
Vertical supply
Here are obvious bad ex a m p l es of ducts connections noted on site:
D ≥ 2m
INSTALLATION ON A ROOFMOUNTING FRAM E
D ≥ 2m
D ≤ 2m
D ≤ 2m
