2 - OPERATING MODES
The maintenance display allows for 4 modes of
operation.
Key [M] allows you to move successively and in a loop
from one mode to the next.
The current mode is indicated by the status of LEDs
[V] and [C] :
Status of LEDs associated
with current mode : [V] [C]
A. The variable mode allows you to
read the values of variables
allumé éteint
B. The setpoint mode allows you to
change the settings
éteint allumé
C. The read date mode allows you to
view the time and the date
éteint éteint
D. The date setting mode allows you to
change the time and the date
allumé allumé
A : VARIABLES MODE
Pressing key [A] displays the address of the variable
being read.
To go to a higher address, press [A] while
simultaneously pressing on [+].
The address will increase slowly by pressing [+]
intermittantly or more quickly by keeping your finger
on the key.
To go to a lower address, proceed as above but with
the [-] key.
When the required address appears, press [V] to
display the variable value. If you do not press any key,
the display will automatically return after a minute. The
variables are updated every second.
B : SETPOINTS MODE
The setpoint address can be chosen in the same way
as for the variable address (see above).
When the address of the required setpoint appears,
pressing [V] will likewise display the current value.
To increase the setpoint press [V] while holding down
the [+] key at the same time.
The address will increase slowly by pressing [+]
intermittantly or more quickly by keeping your finger
on the key.
To go to a lower setpoint, proceed as above but with
the [-] key as well as the [V] key.
The new value is applied when [V] is released.
MOT DE PASSE
Access to all the setpoints is password-protected. Enter
the password before making changes.
To do so, following the above procedure, go to address
setting n° 0 and enter the number corresponding to
your password.

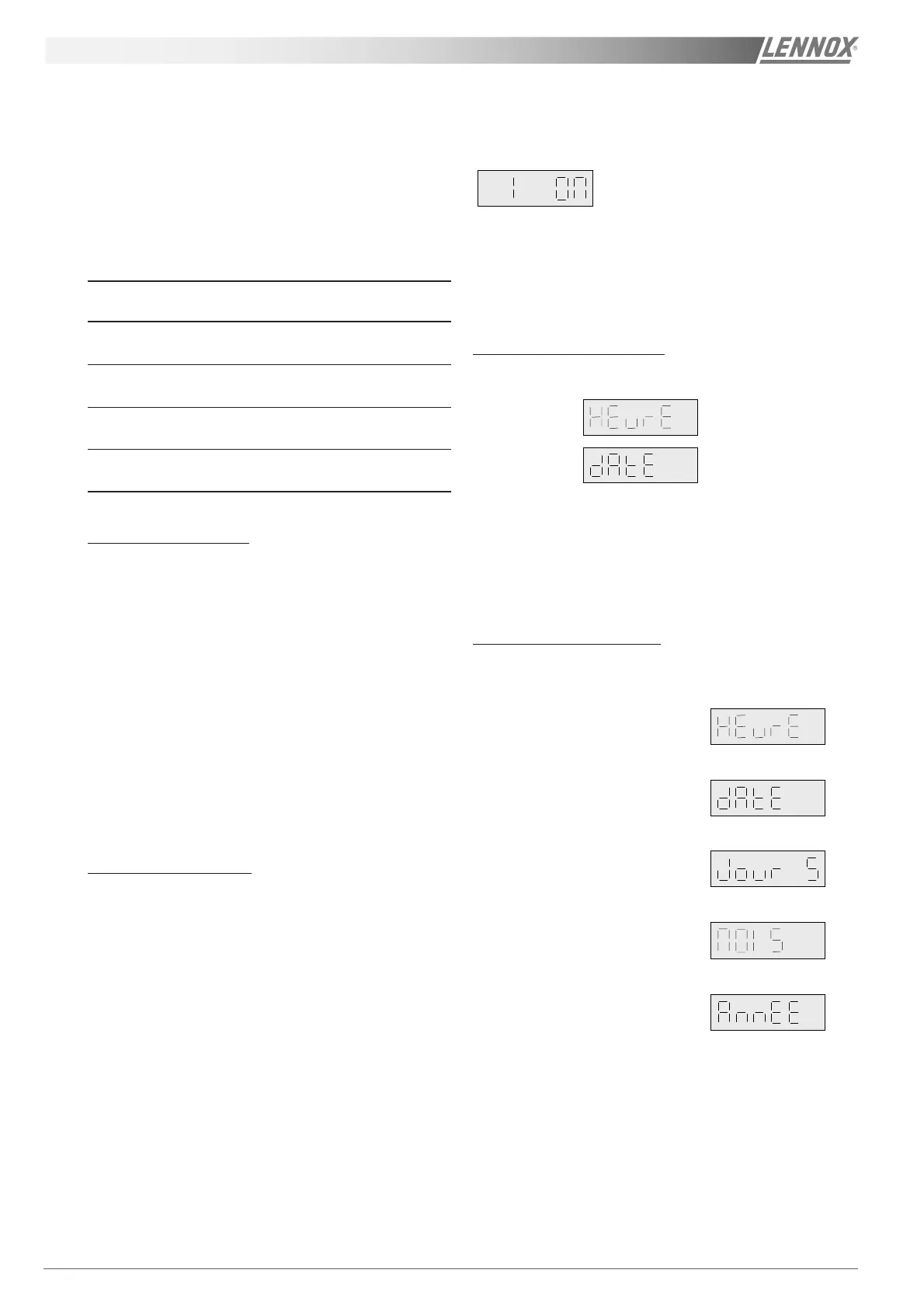

If the password code is correct, the following message
will appear when key [V] is released:
If the keypad has been inactive for 5 minutes, the
password is reactivated. You must therefore enter it
again to continue making changes to the setpoint
values.
C : DATE READING MODE
One of the following modes
- Hour
- ou date
can be chosen by pressing [A] and briefly pressing on
[+] or [-].
Pressing [V] will display the value of the data selected,
otherwise it will automatically be displayed after a
minute.
D : DATE SETTING MODE
This mode allows the 6 date modes to be set:
• Hours and minutes <-->
• Day of the month <-->
• Day of the week <-->
• Month <-->
• Year <-->
The mode to change can be selected in the same
manner as for "DATE READING MODE".
In the same way as for the setpoints, the value can be
increased by simultaneously pressing on keys [V] and
[+] and they can be decreased by simultaneously
pressing on [V] and [-].
