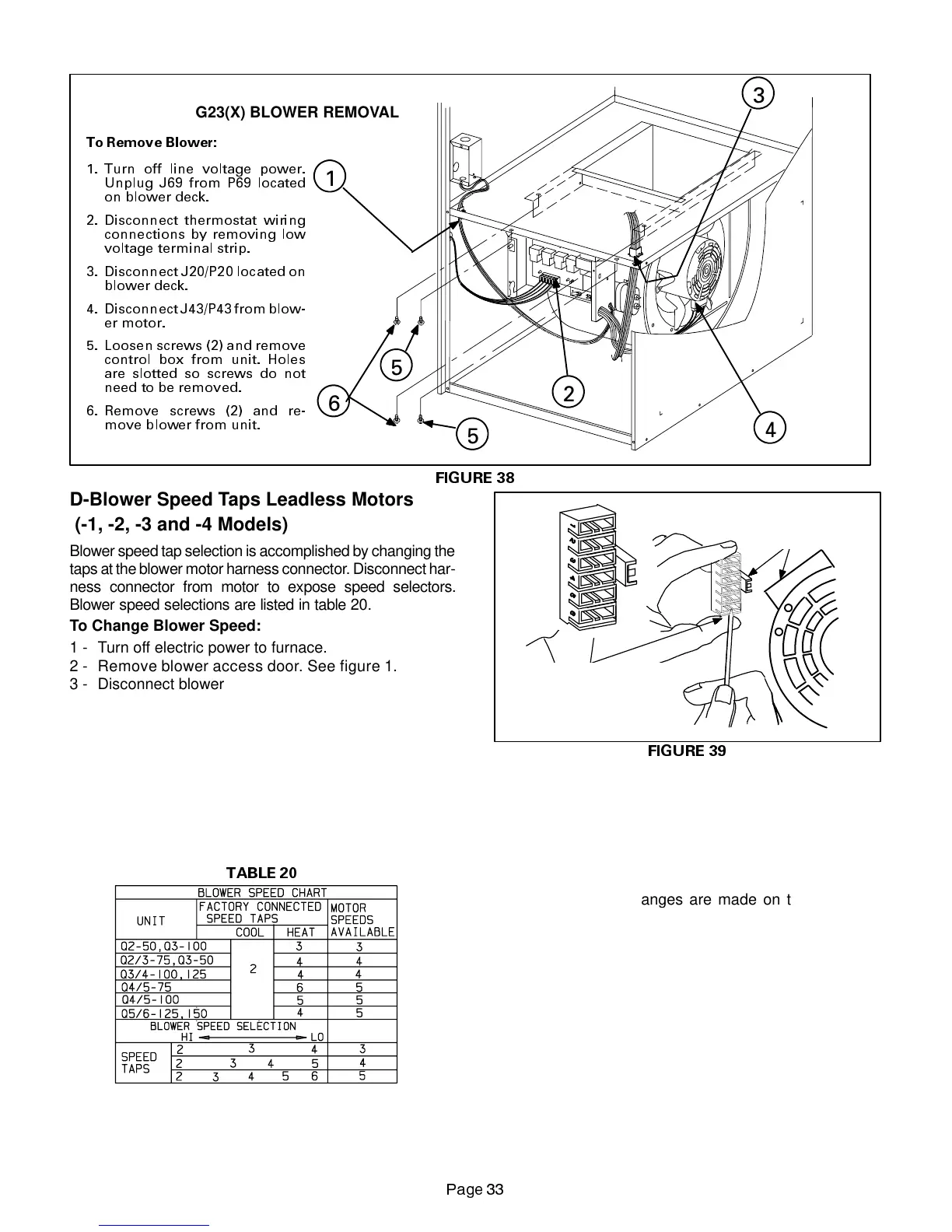

3DJH 
To Remove Blower:
1. Turn off line voltage power.
Unplug J
69 from P69 located
on blower deck.
2. Disconnect thermostat wiring
connections by removing low
voltage terminal strip.
3. Disconnect J20/P20 located on
blower deck.
4. Disconnect J43/P43 from blow-
er motor.
5. Loosen screws (2) and remove
control box from unit. Holes
are slotted so screws do not
need to be removed.
6. Remove screws (2) and re-
move blower from unit.
FIGURE 38
G23(X) BLOWER REMOVAL
4
5
2
6
3
1
5
D-Blower Speed Taps Leadless Motors
(-1, -2, -3 and -4 Models)
Blower speed tap selection is accomplished by changing the
taps at the blower motor harness connector. Disconnect har-
ness connector from motor to expose speed selectors.
Blower speed selections are listed in table 20.
To Change Blower Speed:
1 - Turn off electric power to furnace.
2 - Remove blower access door. See figure 1.
3 - Disconnect blower motor harness from motor.
4 - Pull harness connector and wires through blower ac-
cess panel opening.
5 - Select desired speeds for heatingand cooling. (Red =
heating, Black = cooling, White = common). See table
20.
6 - Depress harness connector tab to release wire termi-
nal. Select connector location for new speed (refer to
unit wiring diagram). Insert wire terminal until it is se-
curely in place. See figure 39.
7 - Replace harness connector to motor .
TABLE 20
FIGURE 39
DEPRESS TAB TO RELEASE
WIRE TERMINAL. SELECT CON-
NECTOR LOCATION FOR NEW
SPEED (REFER TOUNIT WIRING
DIAGRAM). INSERT WIRE UNTIL
IT IS SECURELY IN PLACE.
MOTOR
HARNESS
CONNECTOR
BLOWER SPEED TAP SELECTION
LEADLESS MOTORS
*
NOTE-Q3(X)-100 furnaces use a 4 tap motor with low
speed permanently blocked off so it cannot be used. Do
not attempt to operate unit on low speed tap.
E-Blower Speed Taps Leaded Motors
-5 and -6 Models
Blower speed tap chan
es are made on the SureLi
ht
control board. See fi
ure 21. Unused taps must be se-
cured on dumm
terminals ”PARK M1” and or ”PARK M2”
on the SureLi
ht board. The heatin
tap is connected to
the”ACB HEAT terminalandthe coolin
tapis connected
to the ”ACB COOL” terminal. The continuous blower tap is
connected to the ”ACB LOW” terminal.
To chan
e existin
heat tap, turn off power then switch out
speed tap on ”ACB HEAT” with tap connected to PARK
M1” or ”PARK M2”. See table 21 for blower motor tap col-
ors for each speed.
