Page 19
ACB COOL Blower - Cooling Speed (Line Volt)
ACB HEAT Blower - Heating Speed (Line Volt)
PARK Unused Blower (Dead)
ACB LOW Continuous Low Speed Blower
ACC Accessory Terminal (Line Volt)
TX 120VAC Hot to Transformer
HOT 120VAC Hot Input
HTG ACCHeat Only Accessory (Line Volt)
NEUTRALS 120VAC Neutrals
24VAC HOT24VAC Hot from Transformer
24VAC RTN24VAC Return from Transformer
FLAME SENSE Flame Sense Terminal

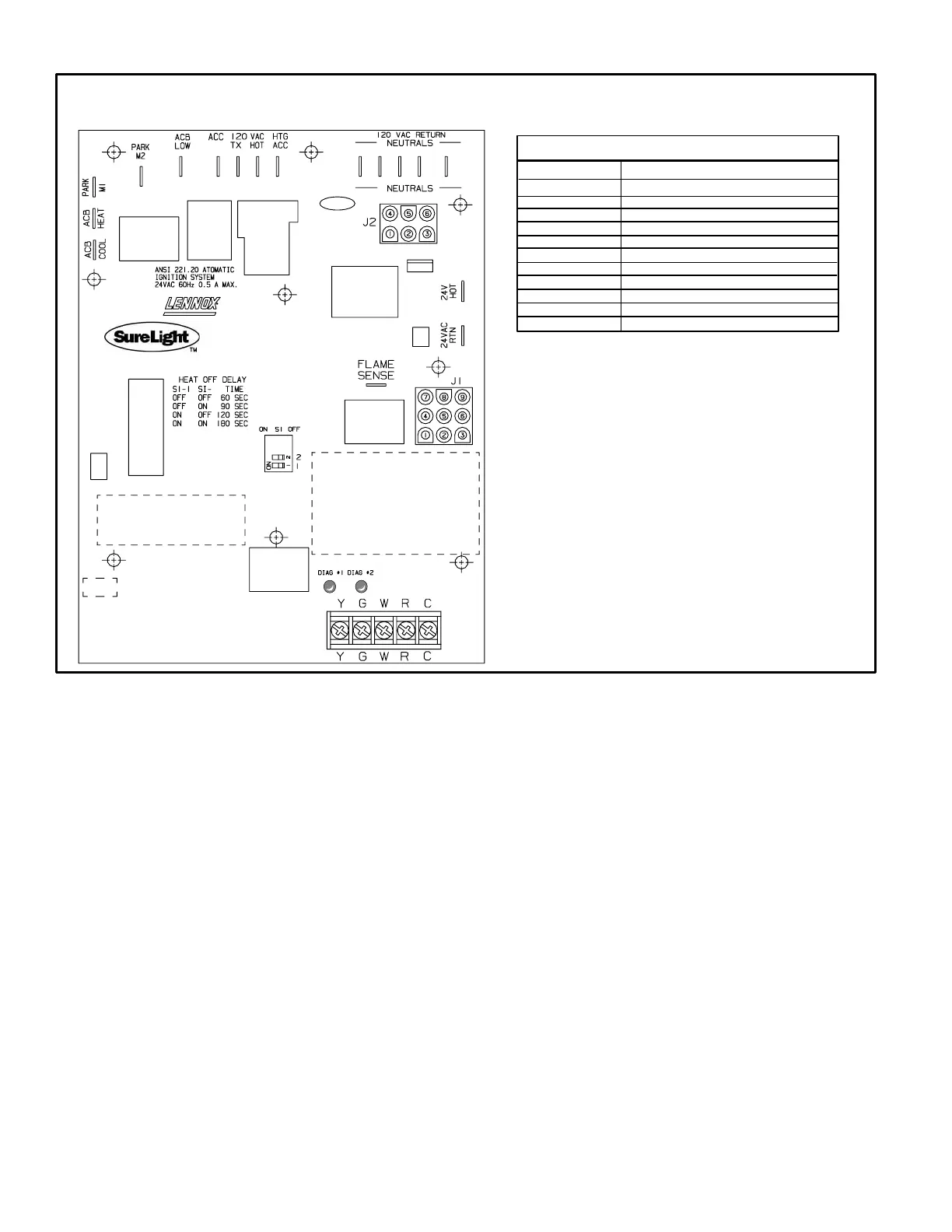

SURELIGHT INTEGRATED CONTROL BOARD
FIGURE 21
TERMINAL DESIGNATIONS
Cat No. 24L85
2
