G60UH Series

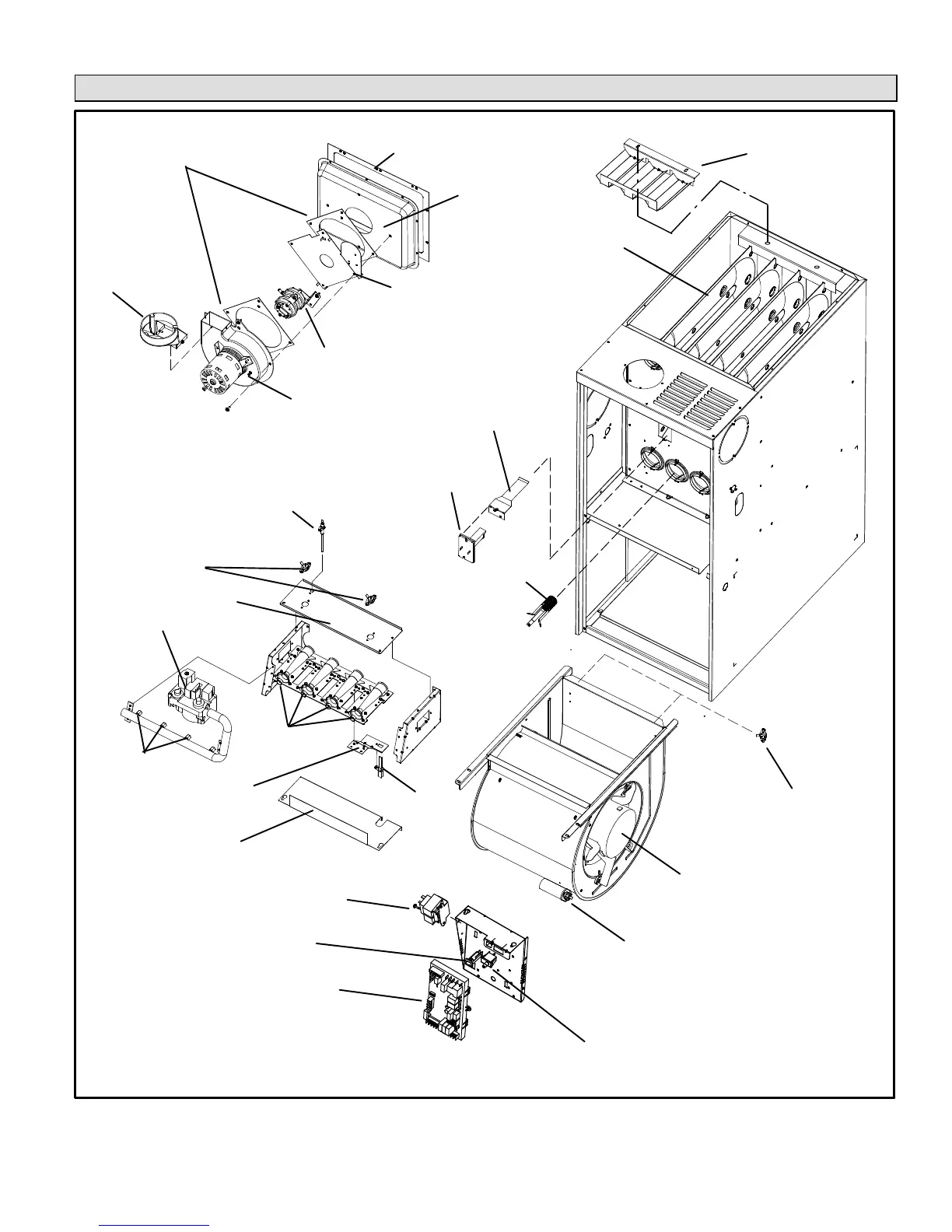

G60UH(X) Parts Arrangement
FIGURE 1
Flue
Transition
Combustion Air Inducer
Combustion Air
Orifice
Combustion Air
Pressure Switch Assembly
(two switches)
Flue
Collector
Box
Heat Exchanger
NO
x
Insert
Primary
Limit
Door Interlock Switch
Two−Stage Integrated
Control
Control Transformer
Circuit Breaker
Gasket
Flue Box Gasket
Limit Shield
Secondary Limit(s)
(NO
x
Units Only)
Air Deflector
G60UH−60C−110
Units Only
Blower Motor
Capacitor
Flame Sensor
Gas Valve
Burners
Ignitor
Flame Rollout Switches*
Flame Rollout Bracket
Gas Orifices
Ignitor Bracket
Burner Bottom Shield
*Flame rollout switches are located
on brackets on the inner sides.
