Page 24
FM21
Heat Pump Control
DTR1 Kit
(Optional)
SLC1 Kit
(Optional)
Outdoor
Thermostat
Indoor Unit
Outdoor Unit
NOTE-N.C. denotes wires that are not connected.
W2
Remove Jumper
TEMP
MODULE
SWITCH
Fan line
Fan low
G32V ONLY*
*G32V only: remove pin #3 of the J73 terminal of the VSP control. Remove the factory jumper between Y1 & DS at the terminal strip
HP
3
HP
2
HP
1
G2
1V
or
Gas

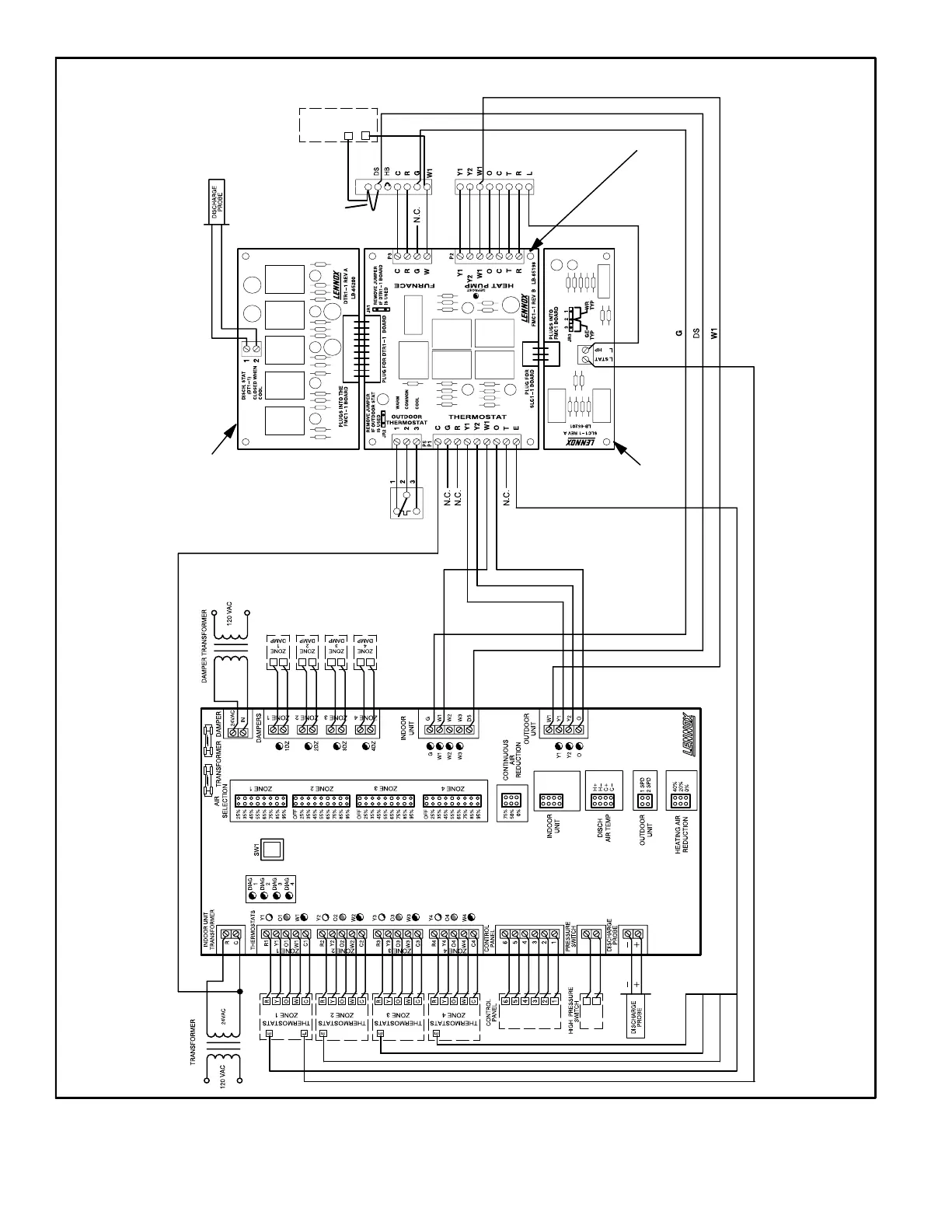

Option 3 − Harmony Zone Control Center Field Wiring with
G32V/G21V/GSR21V Furnace, Lennox Heat Pump, and FM21 Control
Figure 25
