Lennox HP29-024

Page 26

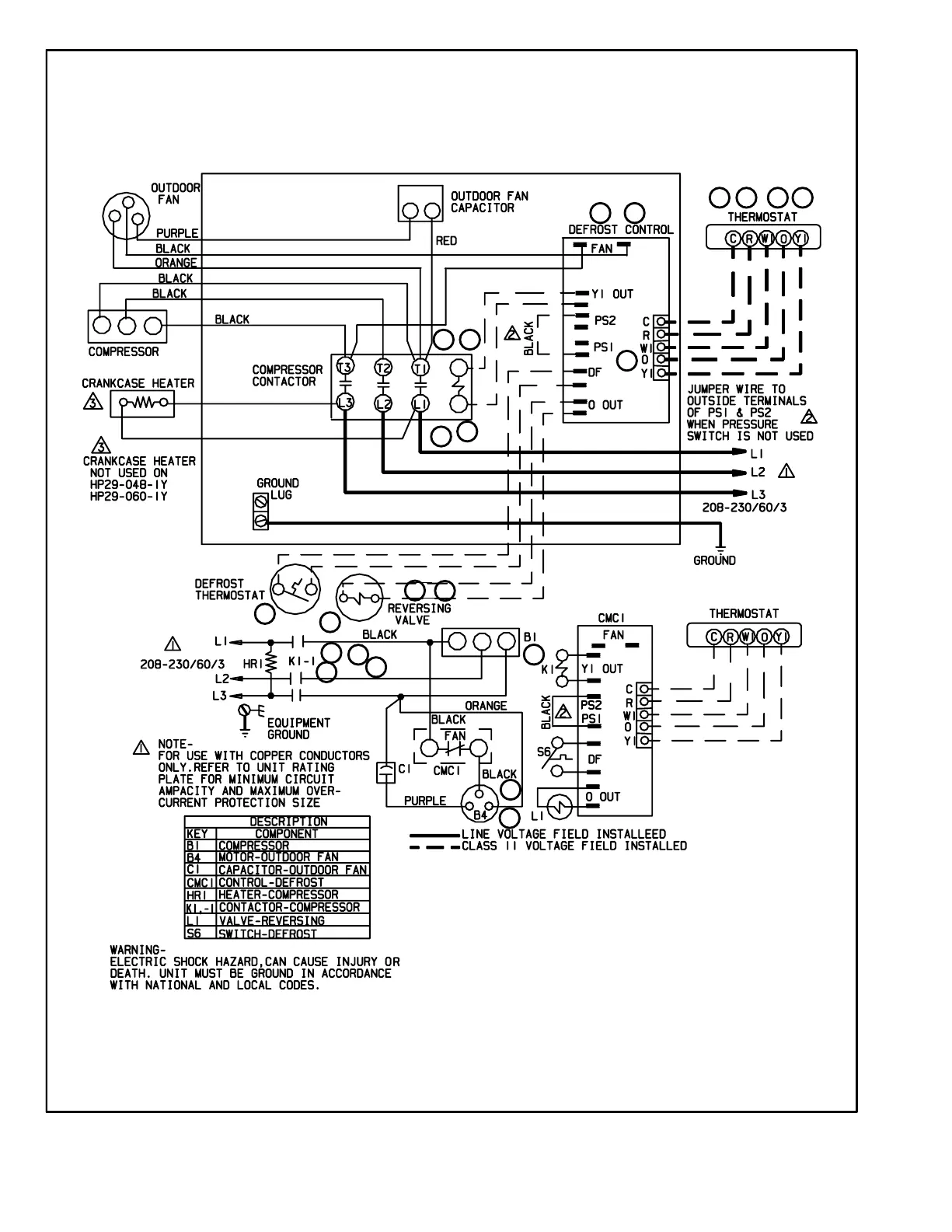

HP29 THREE−PHASE WITH RECIPROCATING
OR SCROLL COMPRESSOR HP29−1/−2
1
2
3
5
6
4
7
8
9
10
11
13
15
14
16
17
18
19
1
4
18
18
18
NOTE−Scroll three−phase compressors must be phased correctly. Compressor noise may be significantly
higher indicating phasing is incorrect. Compressor operating backwards will not provide cooling. Contin-
ued backard operation will cause compressor to cylce on internal protector.
