INNOV@ ECFAN DHR -AGU-0912-E • 6 •

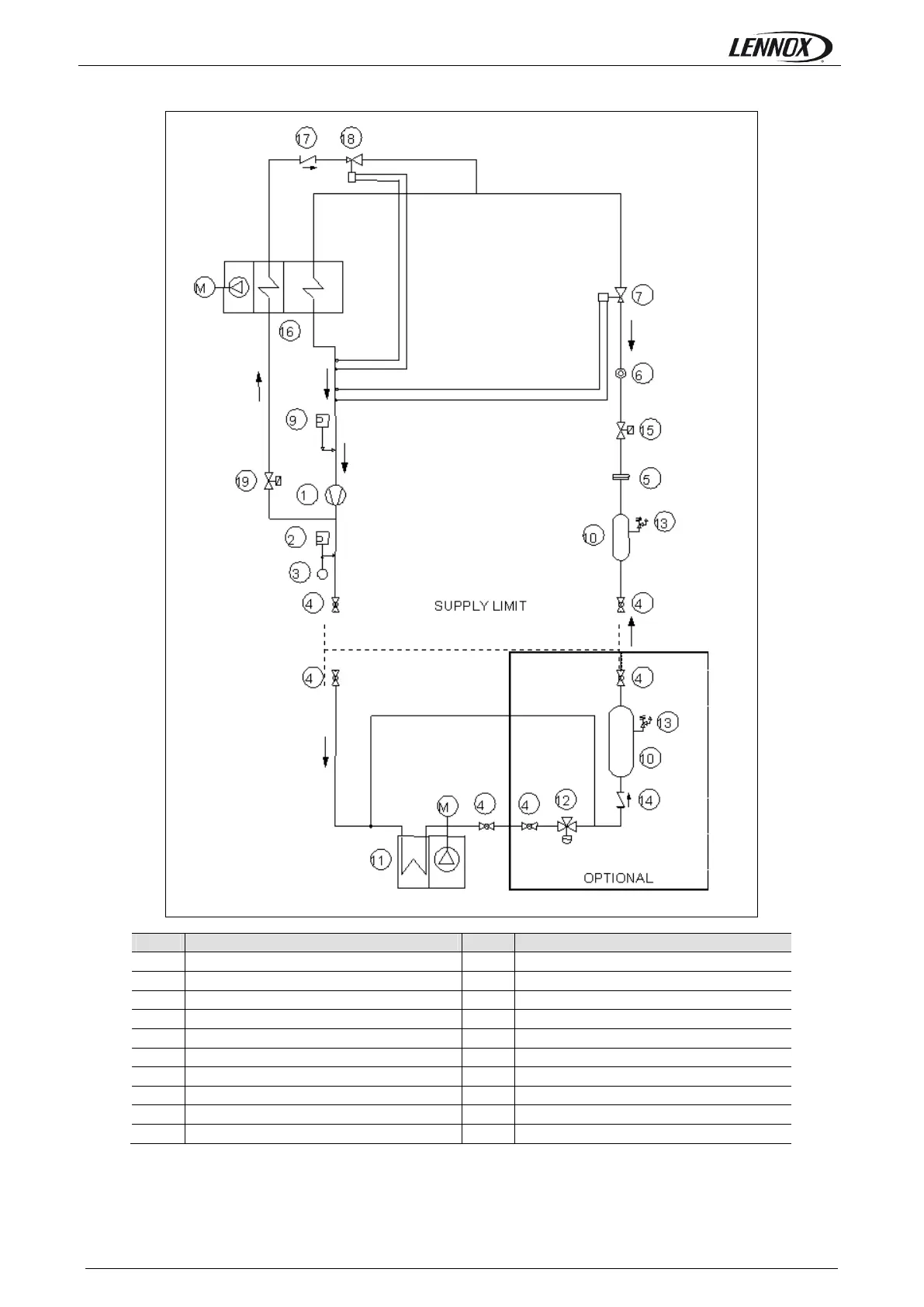

Fig. 3 1 circuit - basic cooling circuit (DX version)
Pos. Description Pos. Description
1 Compressor 11 Condenser coil
2 HP pressure switch 12 Flooding valve
3 Pressure transmitter (Opt.) 13 Safety valve
4 Ball valve 14 Check valve
5 Refrigerant filter 15 Solenoid valve
6 Sight glass 16 Hot gas coil (Opt.)
7 Thermostatic valve 17 Hot gas check valve (Opt.)
8 Evaporating coil 18 Hot gas thermostatic valve (Opt.)
9 LP pressure switch 19 Hot gas solenoid valve (Opt.)
10 Liquid receiver -
