INNOV@ ECFAN DHR -AGU-0912-E • 7 •

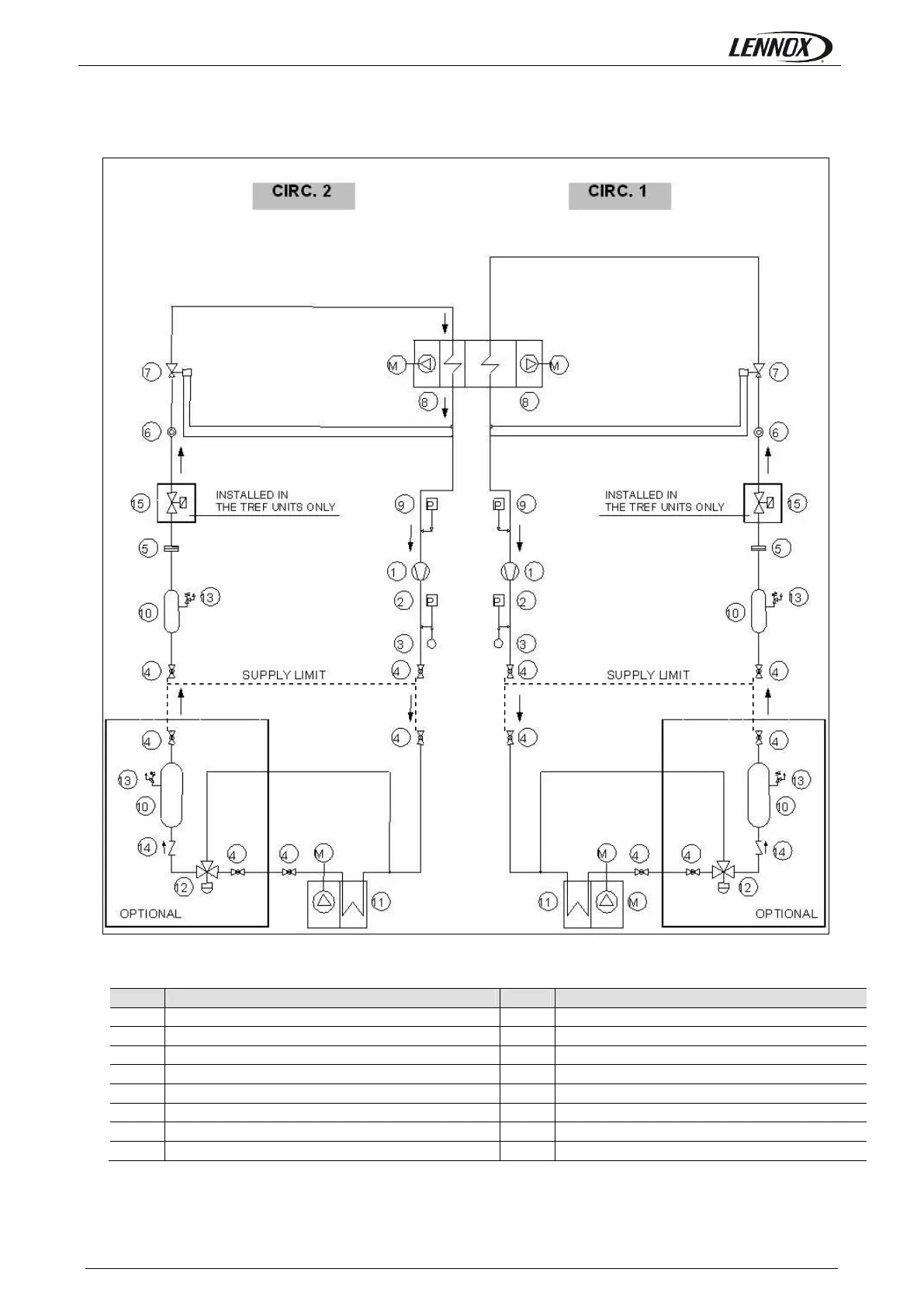

Fig. 4 2 circuits - basic cooling circuit (DX version)
Pos. Description Pos. Description
1 Compressor 9 LP pressure switch
2 HP pressure switch 10 Liquid receiver
3 Pressure transmitter (Opt.) 11 Condenser coil
4 Ball valve 12 Flooding valve
5 Refrigerant filter 13 Safety valve
6 Sight glass 14 Check valve
7 Thermostatic valve 15 Solenoid valve
8 Evaporating coil -
