INNOV@ ECFAN DHR -AGU-0912-E • 12 •
3 Installation
The INNOV@ air-conditioning unit is suitable for all environments except aggressive ones. Do not place any
obstacles near the units and make sure that the air flow is not impeded by obstacles and/or situations causing
back suction.

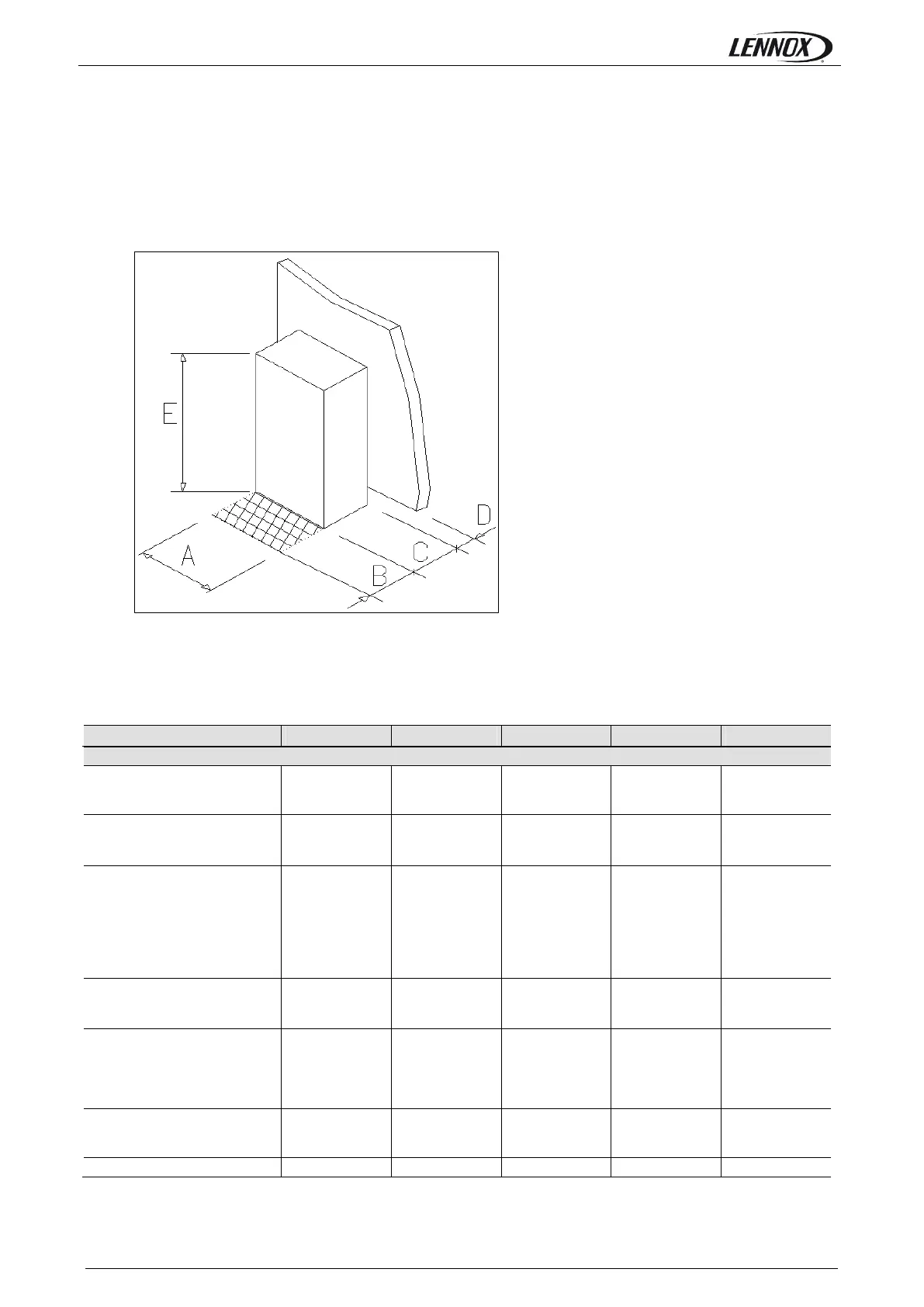

Fig. 7 Service area
Model A (mm) B (mm) C (mm) D (mm) E (mm)
CW version
DHCDR0300 - DHCUR0300
DHCDR0380 - DHCUR0380
1010 750 795 10 1998
DHCDR0450 - DHCUR0450
DHCDR0550 - DHCUR0550
1270 750 795 10 1998
DHCDR0400 - DHCUR0400
DHCDR0500 - DHCUR0500
DHCDR0650 - DHCUR0650
DHCDR0750 - DHCUR0750
1760 750 795 10 1998
DHCDR0890 - DHCUR0890
DHCDR1090 - DHCUR1090
2020 750 795 10 1998
DHCDR0900 - DHCUR0900
DHCDR1000 - DHCUR1000
DHCDR1200 - DHCUR1200
2510 750 795 10 1998
DHCDR1500
DHCDR1800
2510 750 950 10 1998
DHCDR2100 3160 750 950 10 1998
