Page 41
HIGH SPEED - ALL UNITS
L1-Terminal COM
L2-Terminal HIGH
SPEED
TAPS

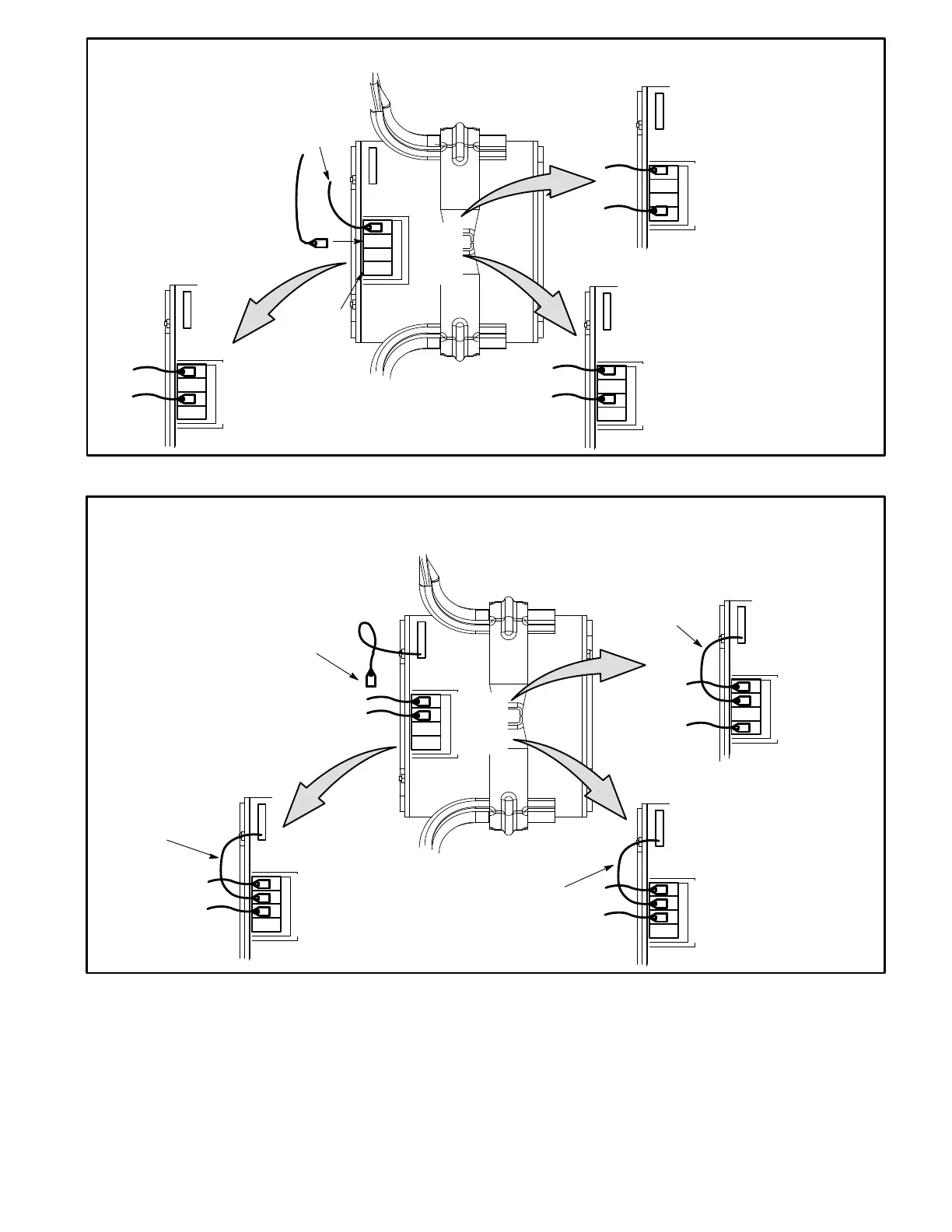

FIELD-ADJUSTABLE BLOWER SPEEDS - DIRECT DRIVE 208/230V
TERMINAL 1
REMAINS AT
COMMON
1-COM
2-HI
3-MED
4-LOW
LOW SPEED
024, 030, 036, 048, UNITS
L1-Terminal COM
L2-Terminal LOW
1-COM
2-HI
3-MED
4-LOW
1-COM
2-HI
3-MED
4-LOW
MEDIUM SPEED
024, 030, 036, 048 UNITS
L1-Terminal COM
L2-Terminal MED
1-COM
2-HI
3-LOW
4-
LOW SPEED
060 UNITS
L1-Terminal COM
L2-Terminal LOW
FIGURE 8
FIELD-ADJUSTABLE BLOWER SPEEDS - DIRECT DRIVE - 460/575V
1-COM
2-HI
3-MED
4-LOW
1-COM
2-HI
3-MED
4-LOW
1-COM
2-HI
3-MED
4-LOW
HIGH SPEED
L1-Terminal COM
L2-Terminal HI
MEDIUM SPEED 036, 048 UNITS
L1-Terminal COM
L2-Terminal MED
LOW SPEED 036, 048 UNITS
L1-Terminal COM
L2-Terminal LOW
Park isolation
lead into
terminal HI
Park isolation
lead into
terminal HI
Do not park
isolation lead
1-COM
2-HI
3-LOW
4
LOW SPEED 060 UNITS
L1-Terminal COM
L2-Terminal LOW
Park isolation
lead into
terminal HI
TAPE BACK AND SECURE
UNUSED ISOLATION LEAD
TO CAPACITOR WIRES.
FIGURE 9
