Page 44

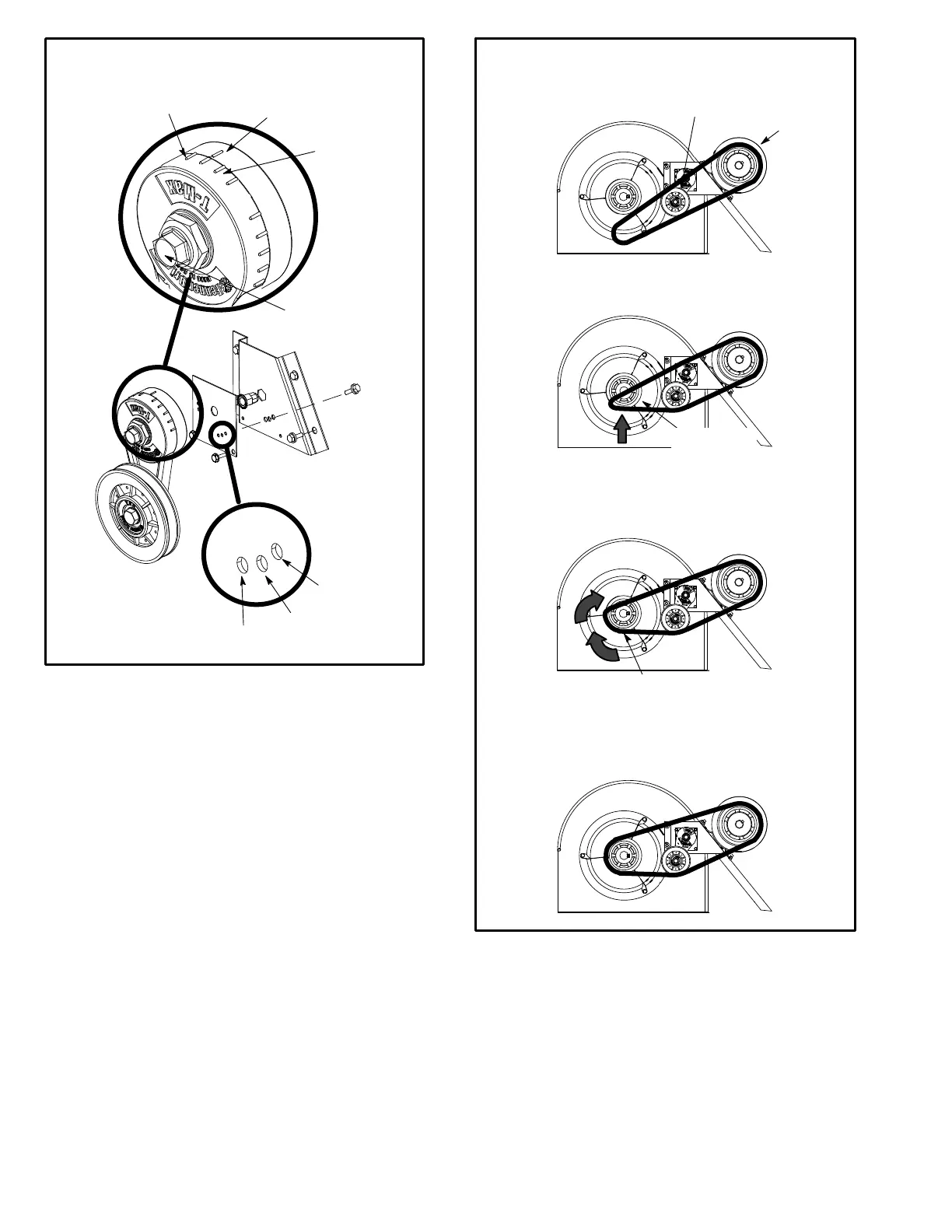

ADJUST BELT TENSIONER
MAXIMUM
TENSION
MINIMUM
TENSION
INDICATOR SHOULD BE
BETWEEN MINIMUM AND
MAXIMUM TENSION LINES
FACTORY-SET
POSITION
TIGHTER
BELT POSITION
TENSIONER
TIGHTEST
BELT
POSITION
BRACKET
TIGHTEN MOUNTING
BOLT TO 22 LB./FT.
USING 9/16” WRENCH
FIGURE 14
INSTALL BELT
1
2
3
4
TENSIONER
DRIVER
PULLEY
DRIVEN
PULLEY
ROTATE DRIVEN
PULLEY TO SEAT BELT
FIGURE 15
