Page 76

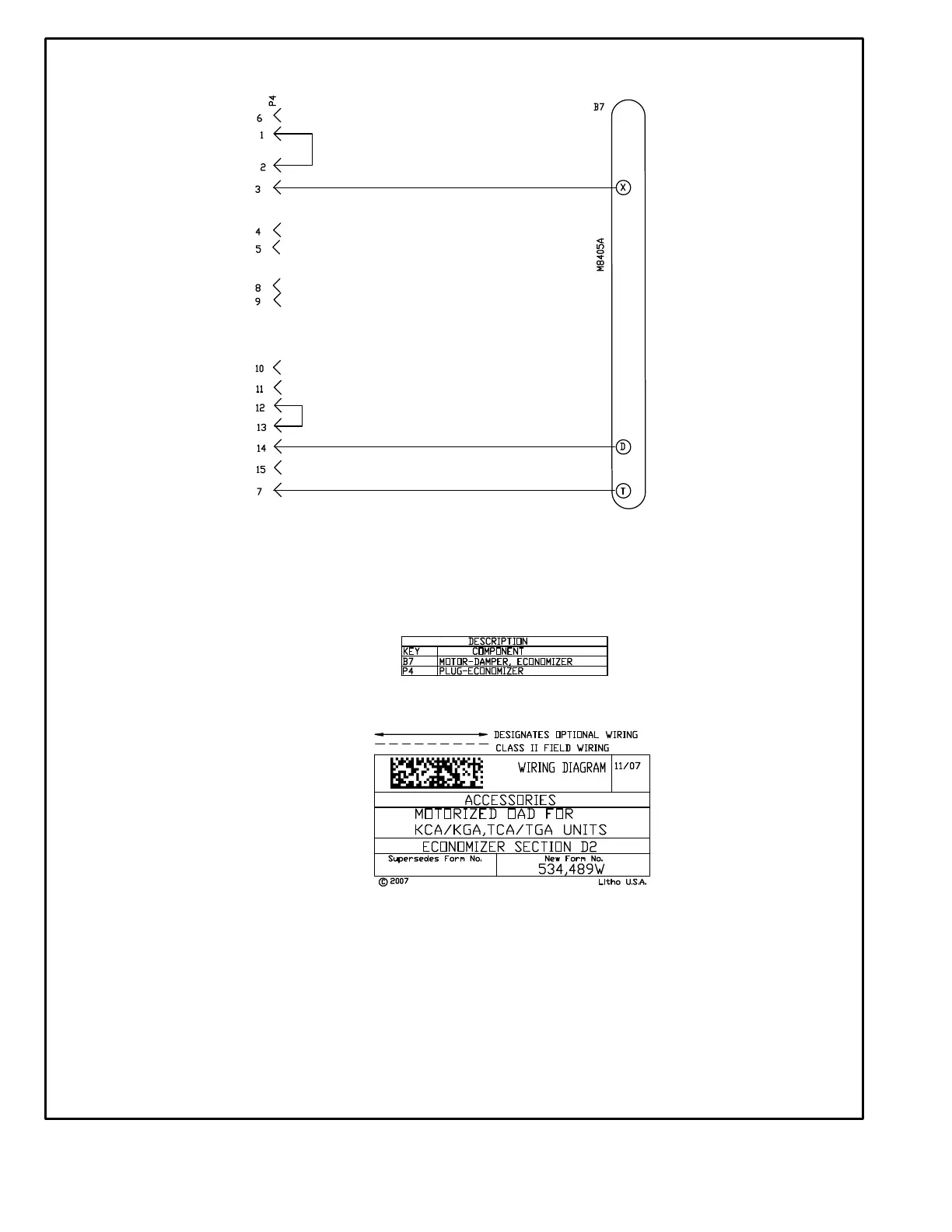

OUTDOOR AIR DAMPER
SEQUENCE OF OPERATION
OPERATION:
Occupied Mode
1. 24 volt signal from terminal “OC” on TB1 opens B7 dampers to minimum position.
Unoccupied Mode
2. Dampers remain closed.
