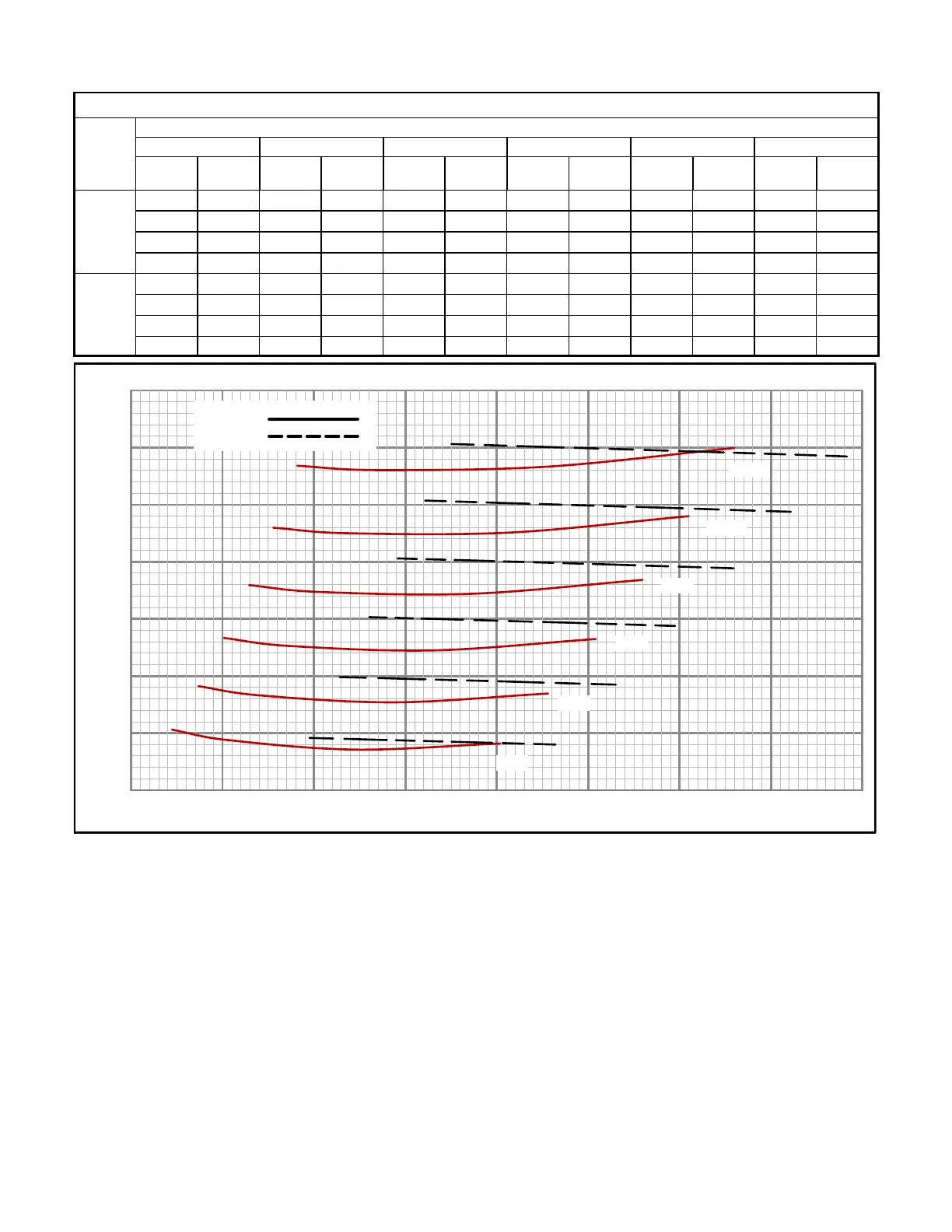

TABLE 7 581125-01
KG/KC 092S Normal Operating Pressures - All-Aluminum Coil
Outdoor Coil Entering Air Temperature
65 F 75 F 85 F 95 F 105 F 115 F
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Suct
(psig)
Disc
(psig)
Circuit 1
99 247 102 293 105 341 108 393 111 448 113 506
106 249 109 293 112 341 116 392 119 446 122 503
120 256 124 298 128 344 132 392 136 444 140 499
135 267 141 308 146 351 151 397 156 447 161 500
Circuit 2
115 246 118 282 121 322 124 366 127 413 130 464
121 250 125 287 129 327 133 371 136 419 140 470
132 257 137 295 143 336 148 382 153 430 158 483
141 265 148 304 155 346 161 393 167 443 173 496
092S Charging Curves - All-Aluminum Coil
60
70
80
90
100
110
120
95 105 115 125 135 145 155
Liquid Temperature (  F)
Suction Pressure (psig)
Outdoor Temperature (°F)
115°
105°
95°
85°
75°
65°
Circuit 1
Circuit 2
165
130
175
