Lennox LCH 048

Page 3
LONTALK MODULE

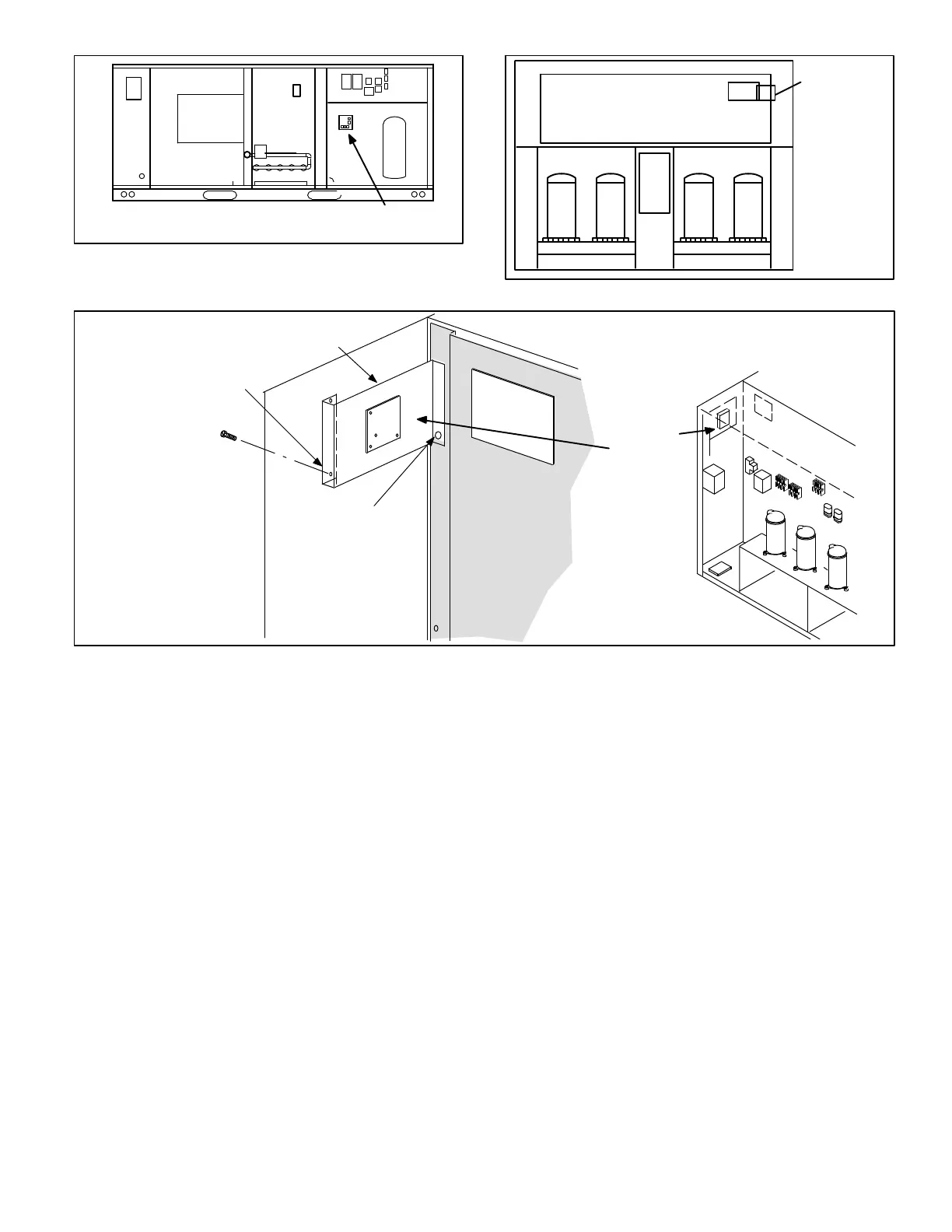

Figure 3. LonTalk Module (036−060 units, A box)
LONTALK
MODULE
S−Class − E Box 420−600
A55
Figure 4. LonTalk Module (420/600 units, E Box)
ALIGN DIMPLES IN UNIT
MULLION WITH ENGAGING
HOLE IN MOUNTING PLATE
FLANGE; SECURE WITH 5/8"
SHEET METAL SCREW.
IMC / M2 BOARD
HAT SECTION
MOUNTING
PLATE
IMC / M2
BOARD
POSITION HOLE IN
MOUNTING PLATE
FLANGE OVER IMC
BOARD HAT SECTION
SCREW
LONTALK
MODULE
Figure 5. LonTalk Module (150/360 units (B, C, & D box)
