TABLE 2
ECTO SETTINGS
Unit Controller “SETTINGS-
CONTROL-MSAV” Menu
ECTO
LCH/LCH Unit Factory Settings
Field Setting Description
036
H4E
048
H4E
060
H4E
036-060
S4T
SMOKE SPEED 0.02 55 58 59 Not Applicable % torque for indoor blower smoke speed.
HIGH SPEED 0.04 55 58 59 Not Applicable % torque for indoor blower high speed.
LOW SPEED 0.05 28 33 36 Not Applicable % torque for indoor blower low speed.
Unit Controller “SETTINGS-
SETPOINTS-DAMPER” Menu
ECTO
LCH/LCH Unit Factory Settings
Field Setting Description
036
H4E
048
H4E
060
H4E
036-060
S4T
MIN OCP BLOWER LOW 0.09 30 30 30 30
Damper minimum position during low in
door blower.
MIN OCP BLOWER HIGH* 5.24 101 101 101 101
Damper minimum position during high in
door blower.
*101 setting allows manual potentiometer control on the A55 Unit Controller.
Installer: Circle applicable unit model number and record any ECTO changes under “Field Setting” column. Settings need to be recorded by install
er for use when unit controller is replaced or reprogrammed. Refer to unit controller guide “Setting” menu path or use optional software to change
settings.
TABLE 3
MINIMUM AND MAXIMUM PULLEY ADJUSTMENT
Belt Min. Turns Open Maxi. Turns Open
A Section No minimum 5

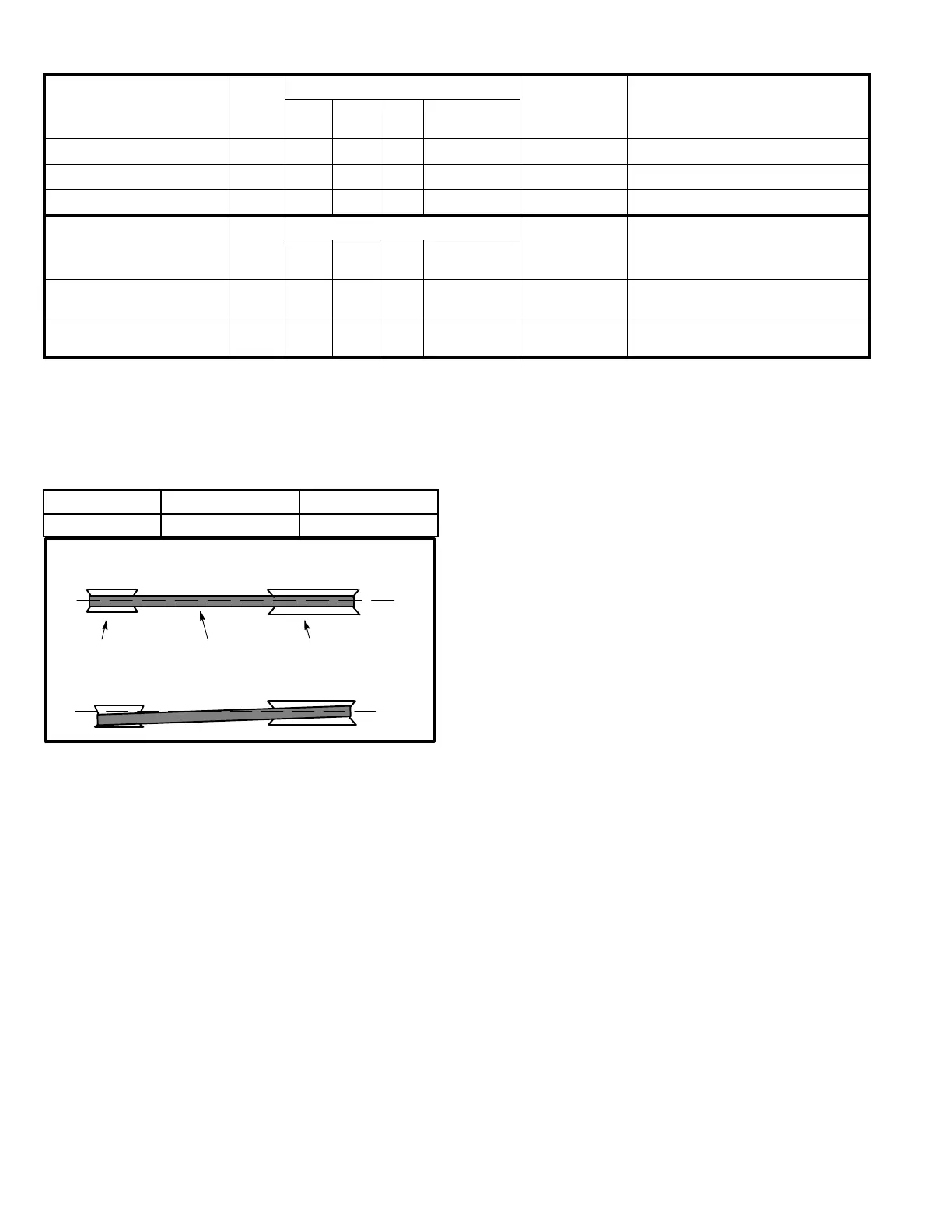

FIGURE 9
PULLEY ALIGNMENT
BELT
BLOWER
PULLEY
MOTOR
PULLEY
NOT ALIGNED
ALIGNED
